Bobcat
/
337.0
/

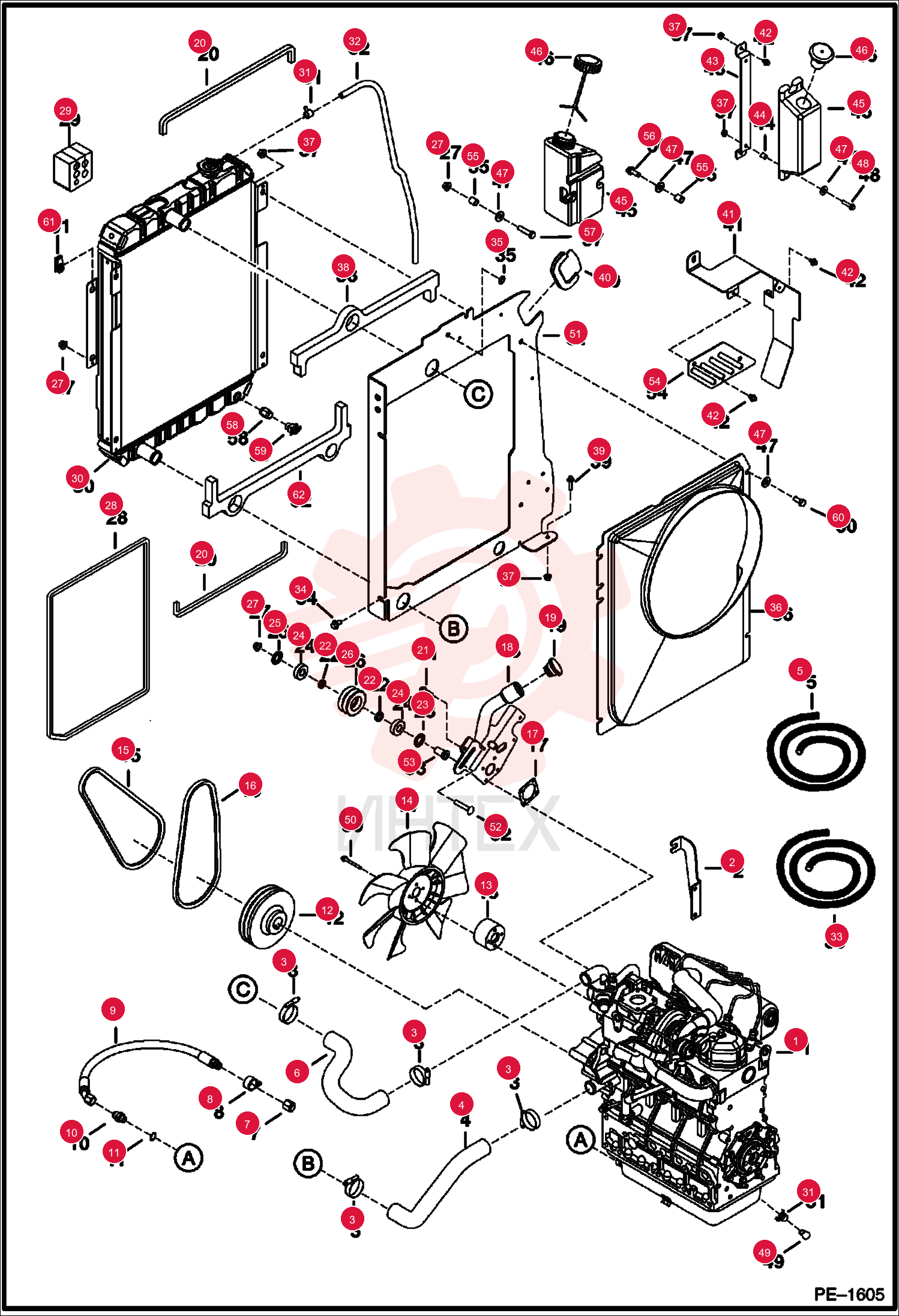

BRACKET 6595422

BRACKET 6595422

BRACKET 6595422

1 6595422

  • 6595422 - BRACKET

2 42HC200

  • 42HC200 - CLAMP

3 6806005

  • 6806005 - HOSE
  • radiator - bottom

4 6810222

  • 6810222 - HOSE
  • radiator - bottom

5 6801027

  • 6801027 - SEAL
  • bulk - sold per foot

6 6816766

  • 6816766 - HOSE
  • radiator - top - Was 6809177

7 36K6

  • 36K6 - CAP

8 30H57

  • 30H57 - CLAMP

9 6811407

  • 6811407 - HOSE

10 97K8

  • 97K8 - O-RING

11 15KB0808

  • 15KB0808 - FTG HYD S CONNECTOR
  • W/Ref. 11 - Was 15KN00006B

12 99K8

  • 99K8 - O-RING

13 6809435

  • 6809435 - PULLEY

14 6807083

  • 6807083 - SPACER

15 6680155

  • 6680155 - FAN
  • PLASTIC

16 6808527

  • 6808527 - BELT
  • compressor

17 6809364

  • 6809364 - BELT
  • alternator/fan

18 6809791

  • 6809791 - BELT
  • alternator - w/o HVAC

19 6809790

  • 6809790 - BELT
  • alternator/compressor w/HVAC

20 6809789

  • 6809789 - BELT
  • fan

21 6714543

  • 6714543 - GASKET

22 6726651

  • 6726651 - TUBE
  • OIL FILL
  • assy - oil filter

23 6809756

  • 6809756 - TUBE
  • assy - oil filter

24 6703736

  • 6703736 - CAP OIL FILLER
  • oil filter

25 6808577

  • 6808577 - SEAL

26 29CM835

  • 29CM835 - BOLT

27 6571554

  • 6571554 - BUSHING

28 6660995

  • 6660995 - RING
  • GREASE
  • grease

29 6676904

  • 6676904 - BEARING

30 6704444

  • 6704444 - WASHER

31 6809433

  • 6809433 - PULLEY

32 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

33 6807629

  • 6807629 - BLOCK
  • foam

34 6685048

  • 6685048 - EXCHANGER
  • WATER RADIATOR
  • Was 6677783

35 6646678

  • 6646678 - CAP
  • WATER 13 PSI

36 5HM15

  • 5HM15 - CLAMP

37 6577822

  • 6577822 - HOSE BULK
  • sold per foot

38 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

39 6670761

  • 6670761 - CAP

40 6814097

  • 6814097 - SHROUD
  • Was 6807391

41 6813308

  • 6813308 - SHROUD

42 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

43 6816531

  • 6816531 - SEAL

44 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

45 6808437

  • 6808437 - GROMMET

46 6807416

  • 6807416 - GUARD

47 6809853

  • 6809853 - GUARD
  • fan - W/HVAC

48 6810080

  • 6810080 - GUARD
  • fan - W/O HVAC

49 26GM8013

  • 26GM8013 - BOLT

50 6807078

  • 6807078 - BRACKET

51 6593013

  • 6593013 - BUSHING

52 6593012

  • 6593012 - TANK
  • overflow

53 6810224

  • 6810224 - TANK COOLANT
  • overflow

54 6702797

  • 6702797 - CAP
  • tank

55 6675551

  • 6675551 - VENT CAP
  • tank

56 25E18

  • 25E18 - WASHER FLAT PLAIN

57 29CM835

  • 29CM835 - BOLT

58 6677123

  • 6677123 - CAP
  • DRAIN
  • Was 6727731

59 60CM660

  • 60CM660 - SCREW
  • Was 29CM00660B

60 6816662

  • 6816662 - PLATE
  • Was 6810225

61 6810170

  • 6810170 - PLATE

62 6809844

  • 6809844 - PLATE

63 28CM1055

  • 28CM1055 - BOLT

64 6809434

  • 6809434 - BUSHING

65 6810078

  • 6810078 - GUARD
  • fan - w/o HVAC

66 6810274

  • 6810274 - SPACER

67 26GM10030

  • 26GM10030 - SCREW SELF TAPPING

68 1CM1045

  • 1CM1045 - BOLT

69 6679505

  • 6679505 - ADAPTER

70 6513679

  • 6513679 - DRAINCOCK VALVE
  • Was 6679506

71 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

72 1CM1025

  • 1CM1025 - BOLT

73 6675722

  • 6675722 - NUT

74 6816530

  • 6816530 - SEAL
