337.0
/

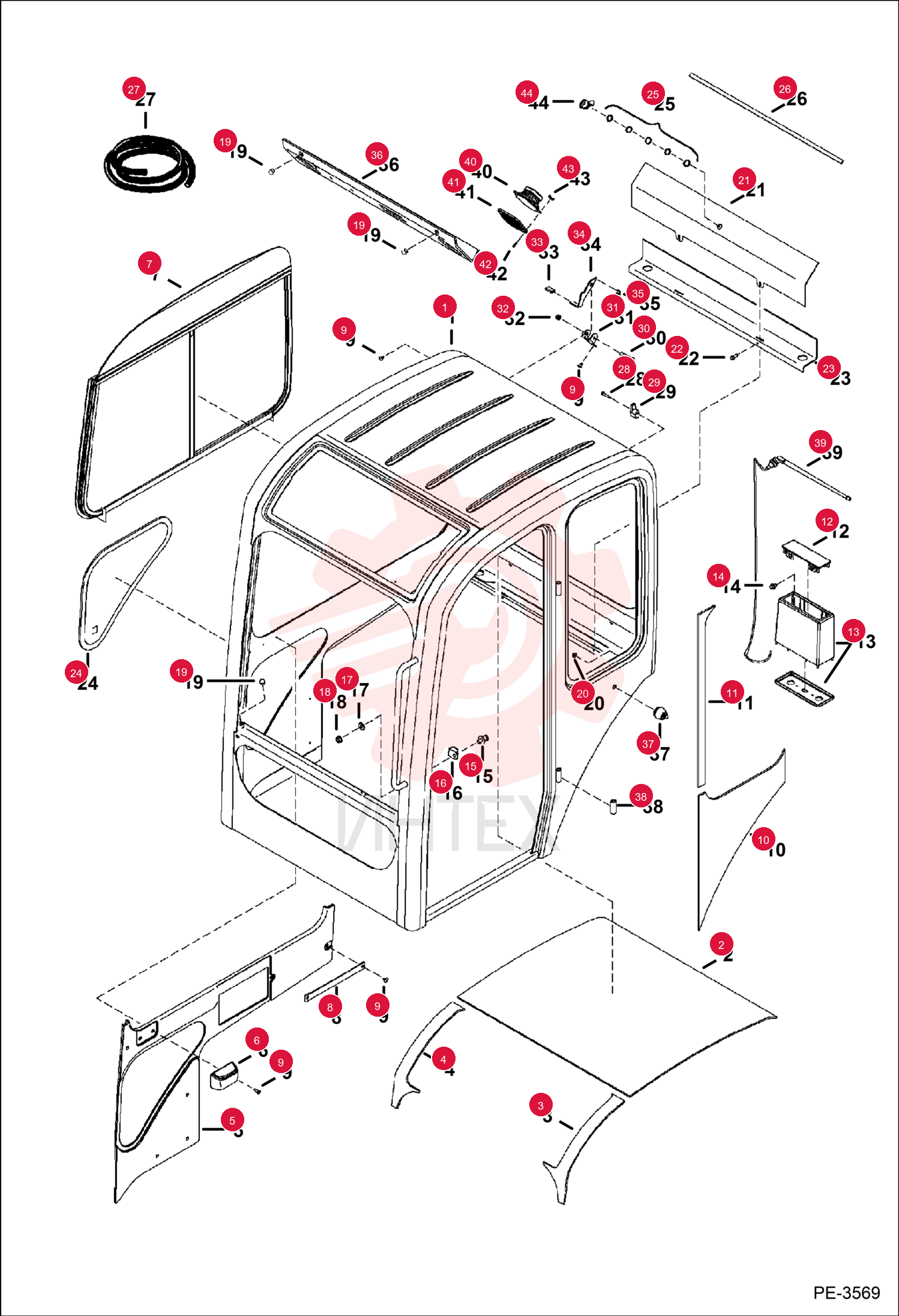

INSULATION 6816185 (2)

INSULATION 6816185 (2)

INSULATION 6816185 (2)

1 6816185

  • 6816185 - INSULATION
  • roof

2 6818362

  • 6818362 - INSULATION
  • L.H. - front

3 6818275

  • 6818275 - INSULATION
  • RH - front

4 7163052

  • 7163052 - INSULATION
  • CAB RH
  • for machines W/O ashtray

5 7101010

  • 7101010 - INSULATION
  • for machines W/ashtray

6 6664075

  • 6664075 - ASHTRAY

7 6589347

  • 6589347 - STRAP
  • elastic

8 6589675

  • 6589675 - SCREW

9 7117115

  • 7117115 - INSULATION SIDE
  • side

10 6816189

  • 6816189 - INSULATION

11 6685745

  • 6685745 - COVER

12 6685799

  • 6685799 - BRACKET

13 26GM10016

  • 26GM10016 - SCREW

14 6689007

  • 6689007 - BOLT STRIKER

15 6688999

  • 6688999 - STRIKER GUARD

16 27E6

  • 27E6 - WASHER HARDEN PLAIN

17 55D7

  • 55D7 - NUT

18 6597572

  • 6597572 - BUMPER

19 55D4

  • 55D4 - NUT

20 26GM6020

  • 26GM6020 - SCREW

21 6817521

  • 6817521 - PAD

22 7125397

  • 7125397 - WINDOW
  • R.H. - For China Only

23 6811792

  • 6811792 - WINDOW
  • RH - Use 6808882 adhesive
  • 7102268 primer
  • & 7110861 cleaner

24 6536802

  • 6536802 - WASHER

25 6648416

  • 6648416 - SEAL BULK /FT
  • sold per foot

26 6808424

  • 6808424 - SCREW

27 6658289

  • 6658289 - COAT HOOK
  • coat

28 1303190

  • 1303190 - PIN
  • CLEVIS
  • Was 4F6106

29 6814724

  • 6814724 - CHANNEL

30 1306637

  • 1306637 - PIN HAIR
  • lock

31 6677500

  • 6677500 - HANDLE
  • lever

32 6814721

  • 6814721 - HANDLE
  • latch

33 6714210

  • 6714210 - SPRING

34 7102641

  • 7102641 - INSULATION
  • rear

35 6689001

  • 6689001 - STRIKER
  • hold open

36 6719341

  • 6719341 - TUBE
  • HINGE
  • weld on

37 6676114

  • 6676114 - ANTENNA
  • RADIO

38 6903211

  • 6903211 - SPEAKER
  • 4 INCH

39 6685607

  • 6685607 - GRILLE

40 7163690

  • 7163690 - SCREW
  • Was 6685743

41 6685744

  • 6685744 - NUT

42 6681922

  • 6681922 - LATCH
