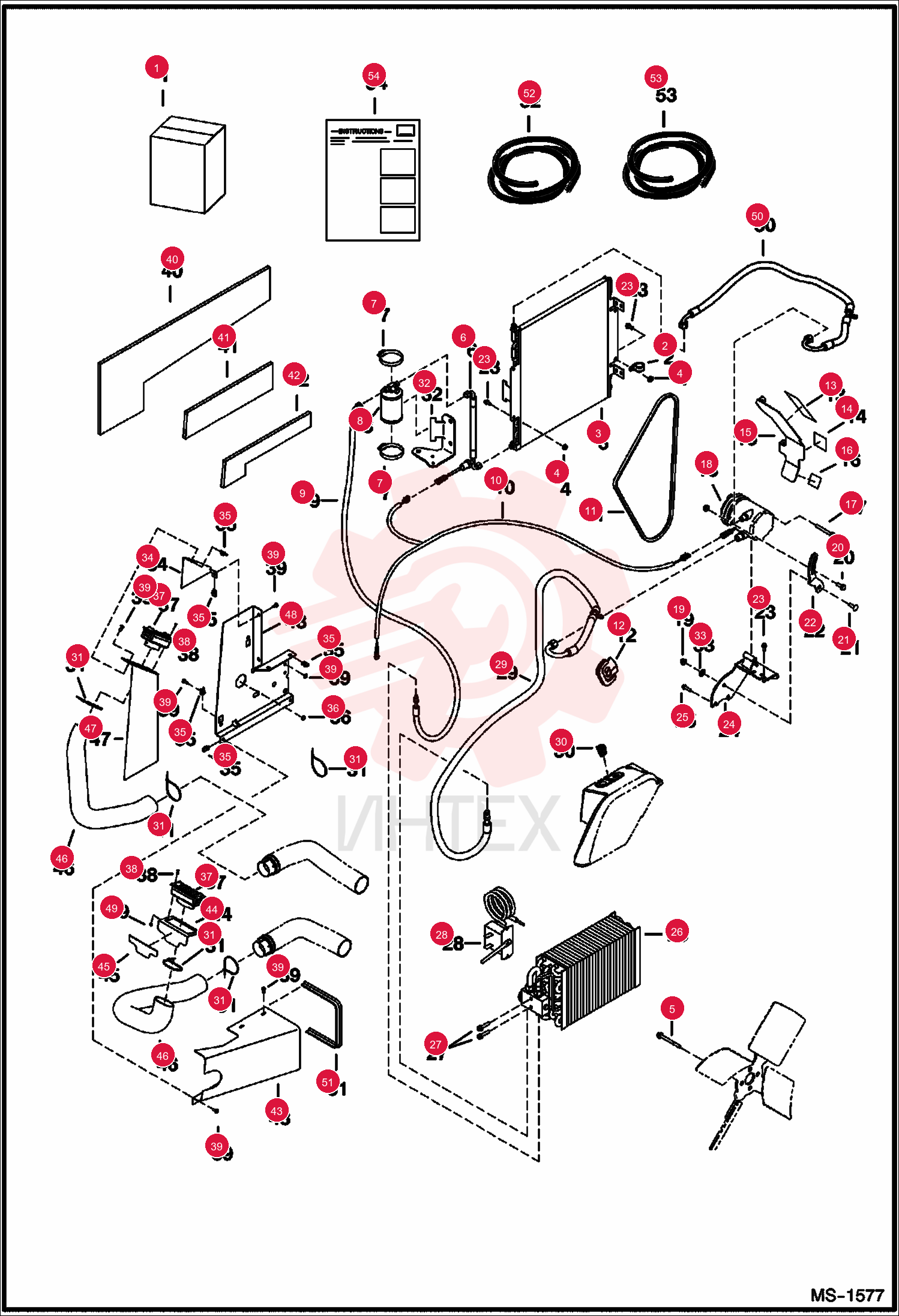

KIT, A/C 6808448

KIT, A/C 6808448

KIT, A/C 6808448

1 6808448

  • 6808448 - KIT
  • A/C

2 30H57

  • 30H57 - CLAMP

3 6682037

  • 6682037 - CONDENSER
  • Was 6676464

4 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

5 60CM660

  • 60CM660 - SCREW

6 6681655

  • 6681655 - HOSE
  • condenser to receiver/dryer - Was 6676469

7 7009976

  • 7009976 - O-RING
  • #6 - Was 6675824

8 42H44

  • 42H44 - HOSECLAM5

9 6674235

  • 6674235 - RECEIVER
  • DRIER A/C

10 7009976

  • 7009976 - O-RING
  • #6 - Was 6675824

11 6681654

  • 6681654 - HOSE
  • receiver/dryer to evaporator - Was 6676468

12 6808548

  • 6808548 - HARNESS

13 6809790

  • 6809790 - BELT

14 6808527

  • 6808527 - BELT
  • w/non-adjustable idler

15 6808436

  • 6808436 - GROMMET

16 6806547

  • 6806547 - BRACKET
  • compressor - 337D/341D

17 6804233

  • 6804233 - DECAL

18 6809832

  • 6809832 - DECAL
  • warning - hot/fan

19 6816441

  • 6816441 - GUARD

20 6708929

  • 6708929 - DECAL
  • COOLANT
  • propylene glycol

21 5CM1080

  • 5CM1080 - SCREW

22 6733655

  • 6733655 - COMPRESSOR
  • A/C
  • W/Ref. 34

23 6679145

  • 6679145 - CLUTCH

24 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

25 5CM1025

  • 5CM1025 - SCREW FL THD HEX CAP

26 28CM1030

  • 28CM1030 - BOLT CARRIAGE 8.8

27 6807434

  • 6807434 - TENSIONER

28 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

29 6810342

  • 6810342 - BRACKET
  • compressor - 331D-331ED-334 only

30 6808988

  • 6808988 - BRACKET
  • compressor - 337D/341D

31 29CM835

  • 29CM835 - BOLT

32 6683283

  • 6683283 - EVAPORATOR
  • - Was 6676465

33 6675534

  • 6675534 - BLOCK
  • VALVE A/C

34 1CM630

  • 1CM630 - SCREW HEX HD 8.8

35 6676708

  • 6676708 - THERMOSTAT

36 6676467

  • 6676467 - HOSE
  • evaporator to compressor

37 7009978

  • 7009978 - O-RING
  • #10 - Was 6675825

38 7169112

  • 7169112 - SWITCH
  • ROCKER A/C
  • Was 6719176

39 6624289

  • 6624289 - STRAP
  • TIE

40 7104428

  • 7104428 - BRACKET
  • receiver dryer

41 6674264

  • 6674264 - RETAINER BOLT

42 6813281

  • 6813281 - COVER

43 6676026

  • 6676026 - NUT

44 6678729

  • 6678729 - SEAL
  • hole

45 6680953

  • 6680953 - LOUVER
  • assy

46 6803202

  • 6803202 - SCREW

47 6811374

  • 6811374 - INSULATION

48 6811437

  • 6811437 - INSULATION

49 6813293

  • 6813293 - INSULATION

50 6812277

  • 6812277 - COVER
  • hose

51 6812278

  • 6812278 - BRACKET

52 6812280

  • 6812280 - ADHESIVE

53 6813207

  • 6813207 - HOSE
  • NLA - 31" (790 mm) long - Order Ref. 52 - Was 6813207

54 6813242

  • 6813242 - COVER
  • hose

55 6813250

  • 6813250 - BRACKET

56 6813440

  • 6813440 - COVER

57 6676466

  • 6676466 - HOSE
  • compressor to condenser

58 7009977

  • 7009977 - O-RING
  • #8 - Was 6675538

59 6675732

  • 6675732 - SEAL
  • BULK/FT
  • sold per foot

60 7021080

  • 7021080 - HOSE
  • HEATER BULK
  • bulk - sold per foot

61 6901205

  • 6901205 - INSTRUCTIONS
