Bobcat
/
337.0
/

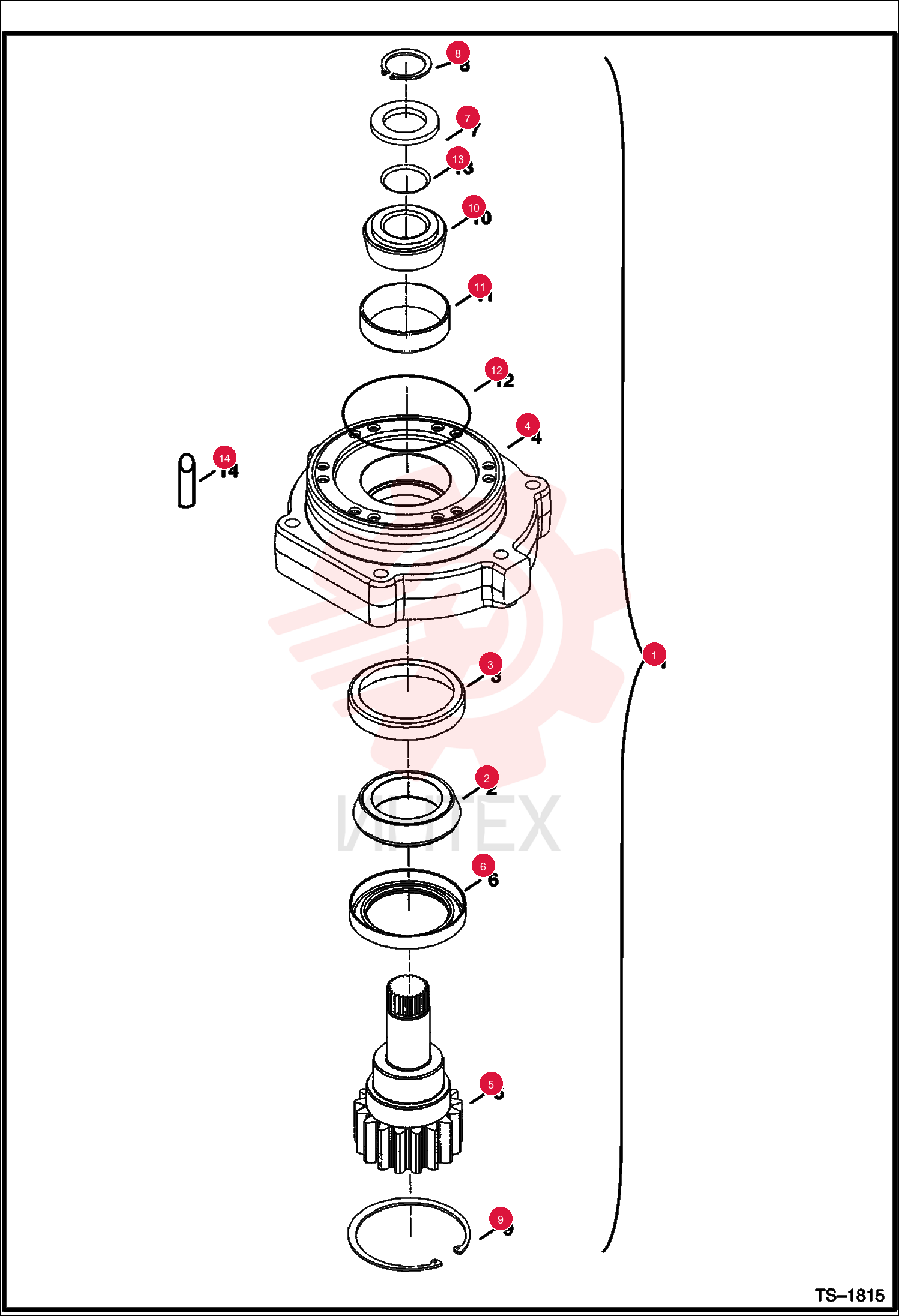

MOUNT, SLEW ASSY 6807330 (3)

MOUNT, SLEW ASSY 6807330 (3)

MOUNT, SLEW ASSY 6807330 (3)

1 6807330

  • 6807330 - MOUNT
  • SLEW ASSY
  • swing motor - W/Ref. 2 - 11 & 13

2 6661994

  • 6661994 - BEARING

3 6661995

  • 6661995 - RACE
  • bearing

4 6807331

  • 6807331 - CARRIER

5 6804313

  • 6804313 - SHAFT

6 6670849

  • 6670849 - SEAL

7 6804314

  • 6804314 - WASHER

8 6672822

  • 6672822 - RING
  • SNAP

9 6668195

  • 6668195 - SNAP RING

10 7100239

  • 7100239 - BEARING
  • CONE
  • HM807046

11 7100240

  • 7100240 - RACE
  • HM807010 or HM807010-20082

12 25K30816

  • 25K30816 - O-RING

13 6807992

  • 6807992 - SHIM
  • .005''

14 20JM1025

  • 20JM1025 - DOWEL PIN
  • dowel - not included W/Ref. 1
