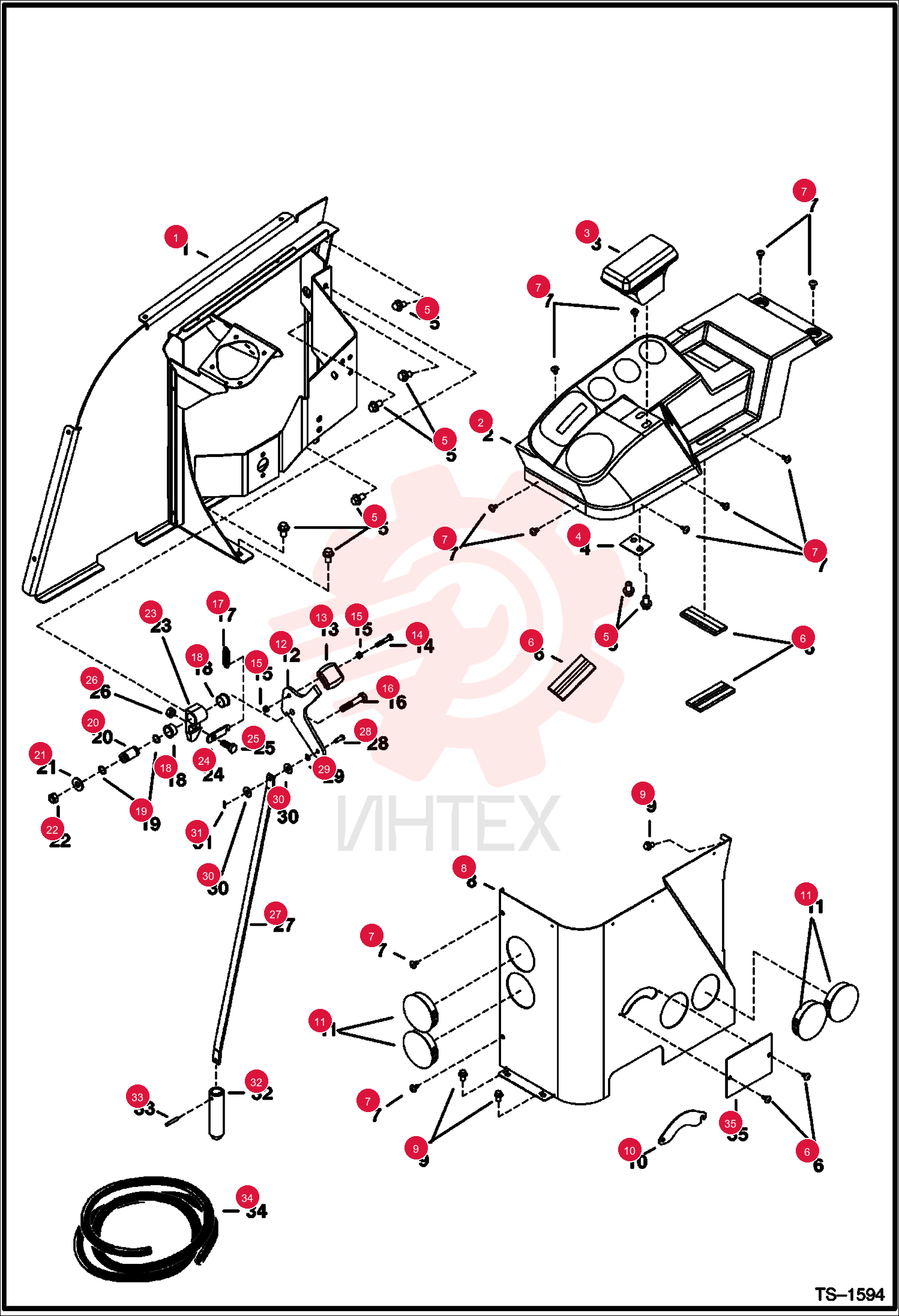

CONSOLE 6802545

CONSOLE 6802545

CONSOLE 6802545

1 6802545

  • 6802545 - CONSOLE
  • R.H.

2 6805016

  • 6805016 - COVER
  • W/O Swing Lock

3 6803195

  • 6803195 - COVER
  • W/Swing Lock

4 6801672

  • 6801672 - SUPPORT

5 6802644

  • 6802644 - PLATE

6 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

7 6589675

  • 6589675 - SCREW

8 6801129

  • 6801129 - PANEL

9 26GM8016

  • 26GM8016 - SCREW SELF TAPPING

10 6802617

  • 6802617 - COVER

11 6670864

  • 6670864 - PLUG

12 6802655

  • 6802655 - LEVER

13 6803199

  • 6803199 - HANDLE

14 1CM635

  • 1CM635 - BOLT

15 1DM6

  • 1DM6 - NUT
  • Was 4DM6

16 1CM1055

  • 1CM1055 - BOLT

17 6804271

  • 6804271 - SPRING
  • Was 6802676

18 6536801

  • 6536801 - BUSHING

19 58K015

  • 58K015 - O-RING 10

20 6536545

  • 6536545 - SLEEVE

21 27E6

  • 27E6 - WASHER HARDEN PLAIN

22 49DM10

  • 49DM10 - NUT

23 6537481

  • 6537481 - MOUNT

24 6804248

  • 6804248 - PLATE
  • Was 6802657

25 1CM1025

  • 1CM1025 - BOLT

26 4DM10

  • 4DM10 - NUT HEX

27 6802656

  • 6802656 - LINK

28 2F4051

  • 2F4051 - PIN

29 9EM60

  • 9EM60 - WASHER

30 27E4

  • 27E4 - WASHER

31 1F216

  • 1F216 - PIN

32 6628729

  • 6628729 - PIN
  • Swing Lock

33 14J1820

  • 14J1820 - PIN

34 7001454

  • 7001454 - SEAL
  • BULK/FT
  • bulk - sold per foot - Was 6803188

35 6802666

  • 6802666 - COVER
  • can be used in place of Ref. 10 but new holes will be needed
