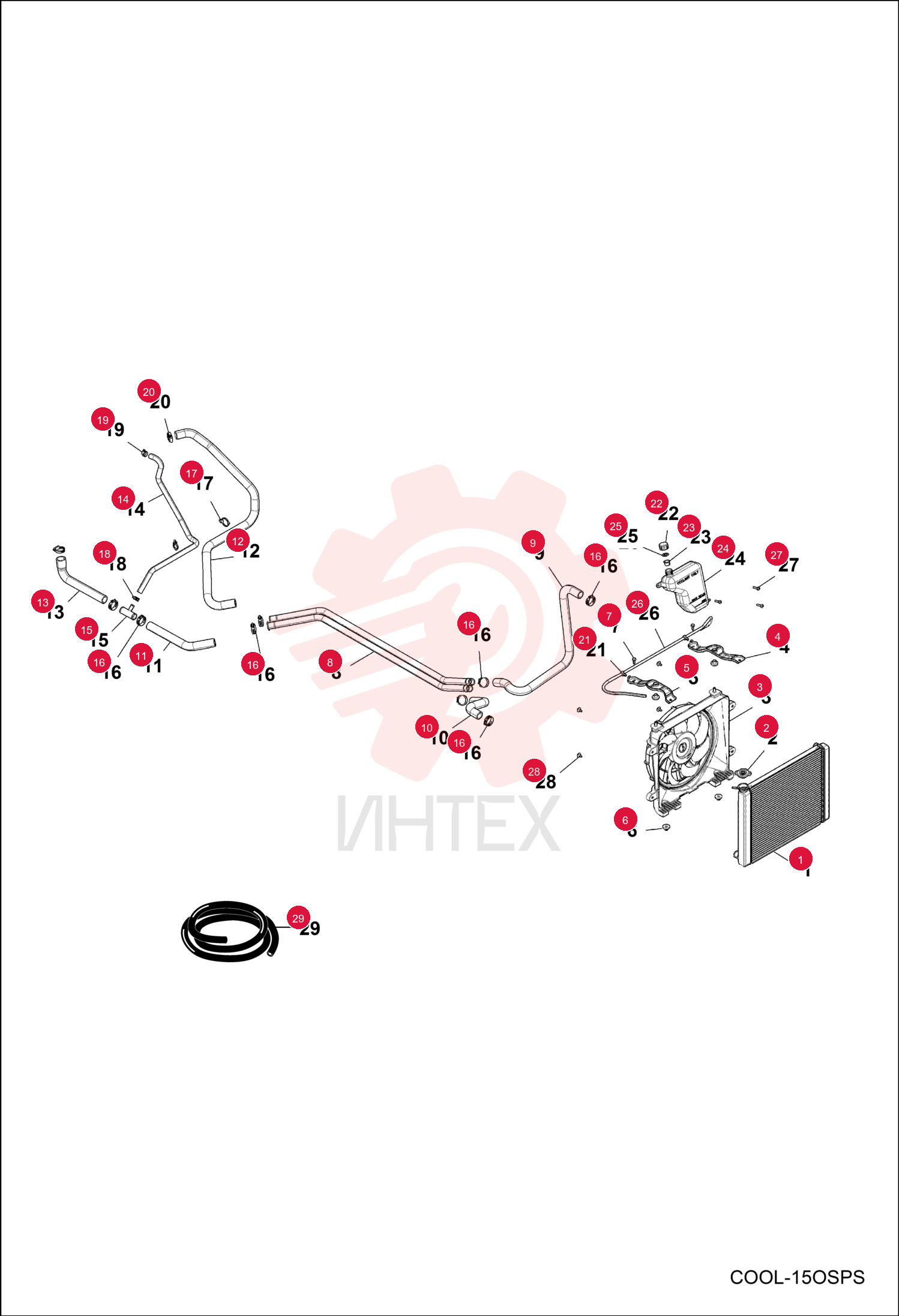

CORE, RADIATOR 7258598 (3)

CORE, RADIATOR 7258598 (3)

CORE, RADIATOR 7258598 (3)

1 7258598

  • 7258598 - CORE
  • RADIATOR

2 7258600

  • 7258600 - CAP

3 7258601

  • 7258601 - FAN
  • COOLING

4 7025547

  • 7025547 - MOUNT
  • RADIATOR
  • Was 7257163

5 7025548

  • 7025548 - MOUNT
  • RADIATOR
  • Was 7257164

6 7025453

  • 7025453 - GROMMET

7 7016645

  • 7016645 - SCREW

8 7252899

  • 7252899 - TUBE
  • COOLING

9 7258602

  • 7258602 - HOSE
  • WATER UPPER

10 7258603

  • 7258603 - HOSE
  • WATER LOWER

11 7257152

  • 7257152 - HOSE
  • INLET

12 7257153

  • 7257153 - HOSE
  • OUTLET

13 7257154

  • 7257154 - HOSE
  • INLET/BYPASS ENG

14 7257155

  • 7257155 - HOSE
  • BYPASS

15 7023579

  • 7023579 - FITTING
  • TEE

16 7025456

  • 7025456 - CLAMP
  • HOSE

17 7023400

  • 7023400 - CLIP
  • ROUTING

18 7024086

  • 7024086 - CLAMP

19 7016286

  • 7016286 - CLAMP
  • HOSE
  • 10

20 7025297

  • 7025297 - CLAMP
  • HOSE

21 7016306

  • 7016306 - CLIP

22 7016270

  • 7016270 - CAP
  • OVERFLOW

23 7016273

  • 7016273 - CAP
  • PLUG9X(GRN)
  • FLEX TEMP

24 7025428

  • 7025428 - TANK
  • WATER COOLANT

25 7016410

  • 7016410 - GASKET

26 7016590

  • 7016590 - SCREW

27 7258599

  • 7258599 - BOLT

28 7258604

  • 7258604 - HOSE
  • FUEL
  • bulk - sold per foot
