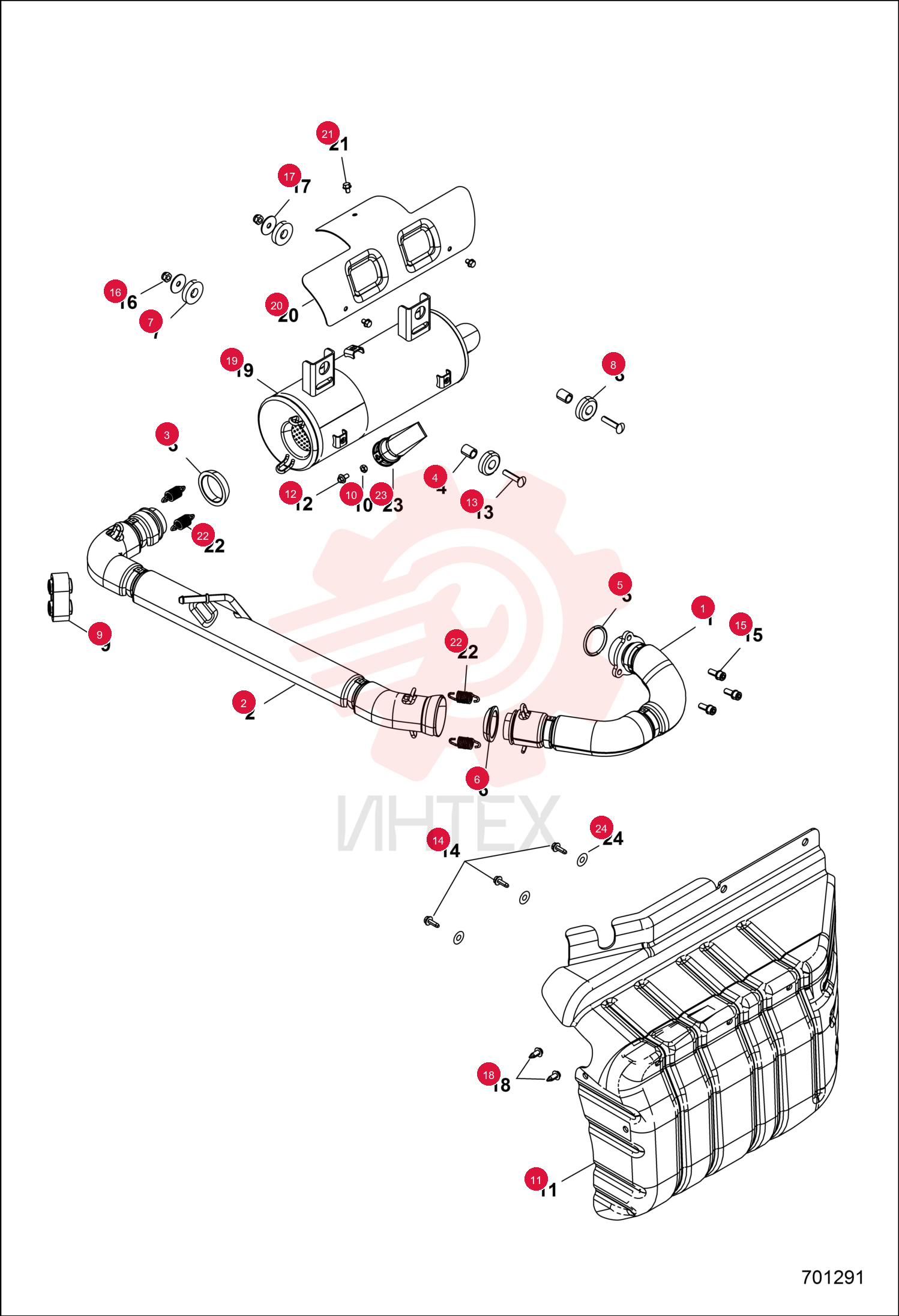

HEAD PIPE ASSEMBLY 7258354 (2)

HEAD PIPE ASSEMBLY 7258354 (2)

HEAD PIPE ASSEMBLY 7258354 (2)

1 7258354

  • 7258354 - HEAD PIPE ASSEMBLY

2 7258355

  • 7258355 - HEAD PIPE ASSEMBLY

3 7023486

  • 7023486 - GASKET
  • SEAL EXH. SOCKET

4 7016227

  • 7016227 - BUSHING

5 7258356

  • 7258356 - GASKET
  • EXHAUST

6 7248215

  • 7248215 - SEAL

7 7258655

  • 7258655 - WASHER

8 7258358

  • 7258358 - DAMPER
  • VIBRATION

9 7257145

  • 7257145 - MOUNT
  • ISOLATOR

10 7027751

  • 7027751 - NUT

11 7308693

  • 7308693 - SHIELD HEAT

12 7258122

  • 7258122 - SCREW

13 7025494

  • 7025494 - BOLT
  • CARRIAGE

14 7016645

  • 7016645 - SCREW

15 7016648

  • 7016648 - SCREW

16 7016526

  • 7016526 - NUT

17 7016746

  • 7016746 - WASHER

18 7016585

  • 7016585 - RIVET
  • TUFLOK
  • .315
  • .325X.787

19 7265715

  • 7265715 - SILENCER

20 7258362

  • 7258362 - SHIELD

21 7016635

  • 7016635 - SCREW

22 7016700

  • 7016700 - SPRING

23 7258693

  • 7258693 - ARRESTOR
  • SPARK

24 7016750

  • 7016750 - WASHER
