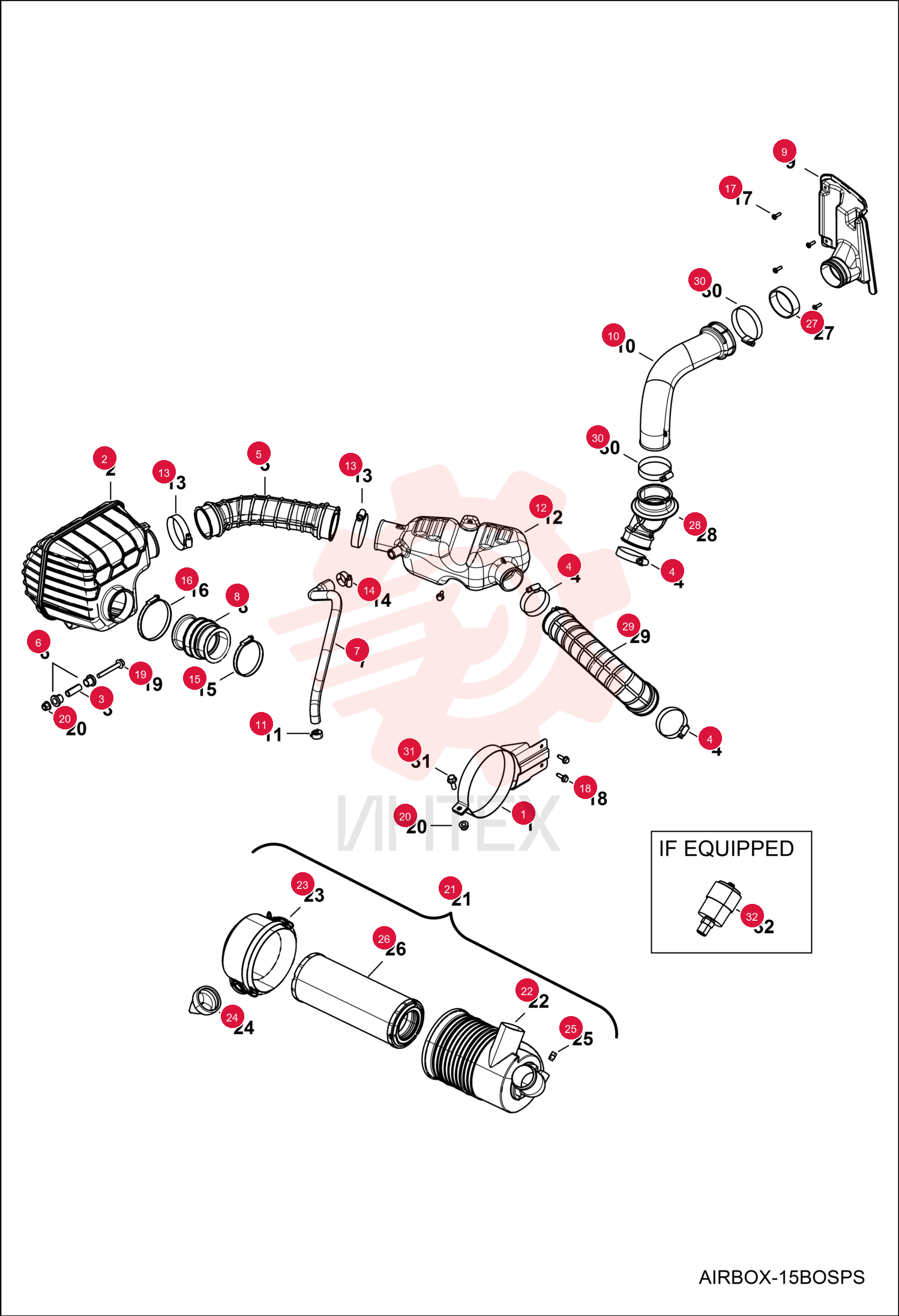

MOUNT 7258347 (1)

MOUNT 7258347 (1)

MOUNT 7258347 (1)

1 7258347

  • 7258347 - MOUNT

2 7257104

  • 7257104 - INTAKE
  • PLENUM

3 7258348

  • 7258348 - SHAFT

4 7016287

  • 7016287 - CLAMP
  • HOSE
  • S.S

5 7258349

  • 7258349 - HOSE
  • INTAKE

6 7258350

  • 7258350 - MOUNT

7 7257157

  • 7257157 - BOOT

8 7025551

  • 7025551 - INTAKE
  • FENDER REAR BLK

9 7025433

  • 7025433 - DUCT
  • AIR

10 7016303

  • 7016303 - CLAMP
  • HOSE
  • SPRING .81

11 7258351

  • 7258351 - DUCT
  • AIR

12 7027714

  • 7027714 - CLAMP
  • HOSE

13 7343284

  • 7343284 - CLAMP HOSE
  • Was 7016291

14 7025455

  • 7025455 - CLAMP
  • HOSE

15 7016298

  • 7016298 - CLAMP
  • BAND
  • NARROW 70
  • 90MM

16 7025486

  • 7025486 - BOLT

17 7016645

  • 7016645 - SCREW

18 7025493

  • 7025493 - BOLT
  • FLANGE

19 7016526

  • 7016526 - NUT

20 7025321

  • 7025321 - HOUSING
  • INTAKE AIR
  • Ref. 22-26

21 7027502

  • 7027502 - COVER

22 7027660

  • 7027660 - VALVE
  • EJECTION DUST

23 7027672

  • 7027672 - PLUG

24 6672467

  • 6672467 - FILTER
  • AIR OUTER
  • Was 7027718

25 7025416

  • 7025416 - HOSE
  • AIR INTAKE

26 7258352

  • 7258352 - HOSE
  • AIR INTAKE

27 7258353

  • 7258353 - HOSE
  • INTAKE

28 7252897

  • 7252897 - CLAMP
  • HOSE

29 7016177

  • 7016177 - BOLT

30 7260571

  • 7260571 - KIT
  • FILTER INDICATOR
  • if equipped
