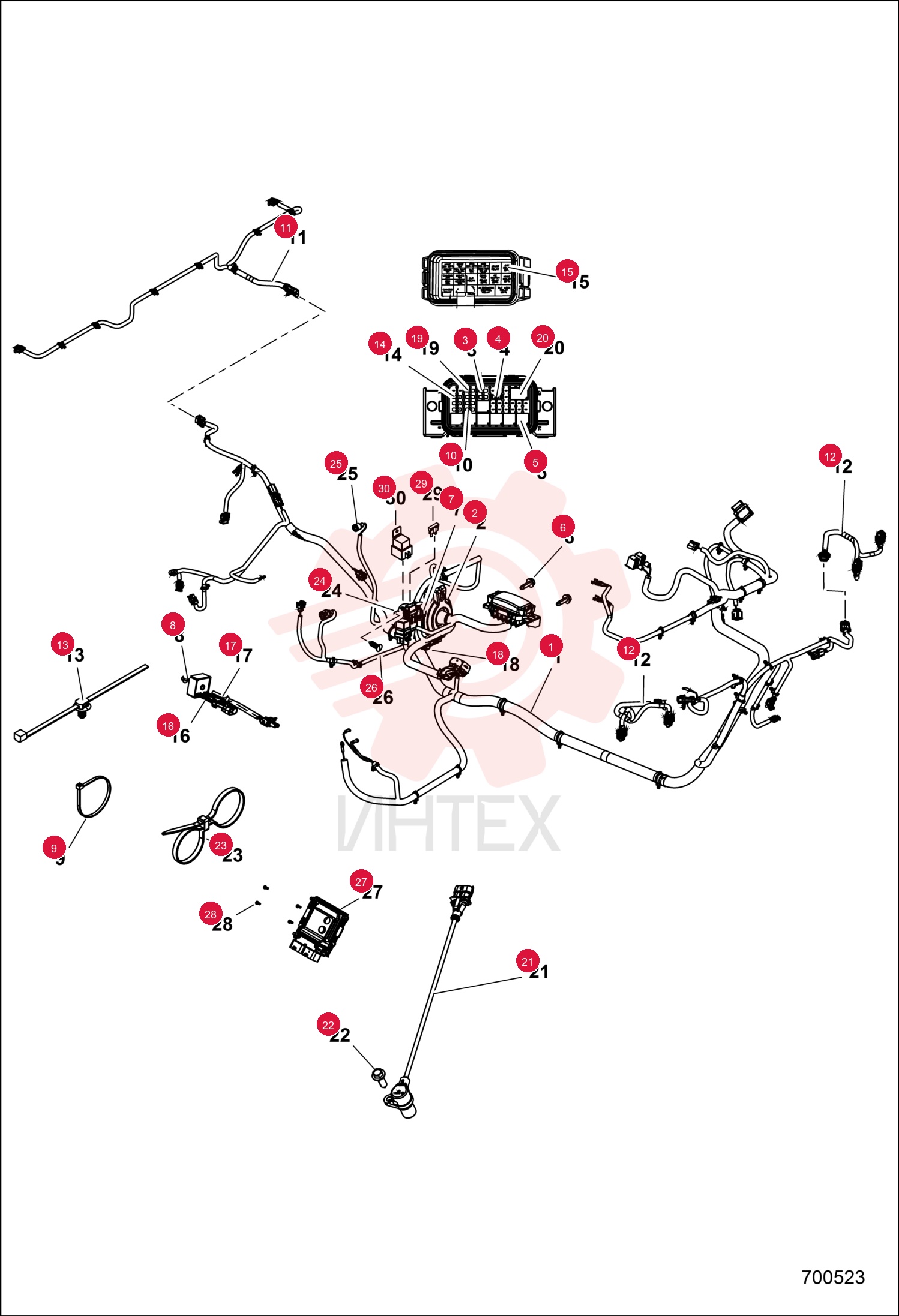

HARNESS, CHASSIS 7258452 (2)

HARNESS, CHASSIS 7258452 (2)

HARNESS, CHASSIS 7258452 (2)

1 7258452

  • 7258452 - HARNESS
  • CHASSIS
  • W/ Ref. 2-5
  • 7-15
  • 18-20
  • 23-26

2 7027659

  • 7027659 - GROMMET
  • HARNESS

3 7258342

  • 7258342 - FUSE
  • 5A

4 7258343

  • 7258343 - BREAKER
  • CIRCUIT

5 7017645

  • 7017645 - RELAY
  • SPST SERIES 303 SEALED

6 7016645

  • 7016645 - SCREW

7 7017501

  • 7017501 - COVER
  • DIAGNOSTIC W/CLIP

8 7016525

  • 7016525 - NUT

9 7016245

  • 7016245 - TIE
  • CABLE

10 6707622

  • 6707622 - FUSE
  • 20A MINI 5

11 7258345

  • 7258345 - HARNESS
  • LIGHT REAR

12 7260168

  • 7260168 - HARNESS
  • HEAD LIGHT

13 7023400

  • 7023400 - CLIP
  • ROUTING

14 7017532

  • 7017532 - FUSE
  • MAIN 30 AMP

15 7258991

  • 7258991 - DECAL
  • FUSE RELAY

16 7016573

  • 7016573 - RELAY
  • SOLID STATE
  • 9A
  • LONG LD

17 7023435

  • 7023435 - BOLT
  • FLANGE

18 7027626

  • 7027626 - DIODE
  • TVS 30V

19 7258454

  • 7258454 - FUSE
  • 15A MINI

20 7017644

  • 7017644 - RELAY
  • SPDT SERIES 301 SEALED

21 7025326

  • 7025326 - SENSOR
  • MAGNETIC

22 7257189

  • 7257189 - BOLT

23 7259226

  • 7259226 - TIE
  • CABLE

24 7261693

  • 7261693 - CLIP

25 7261692

  • 7261692 - BOOT

26 7027763

  • 7027763 - CLIP
  • PLASTIC

27 7027625

  • 7027625 - ECU

28 7025490

  • 7025490 - BOLT

29 7299883

  • 7299883 - FUSE

30 7299886

  • 7299886 - RELAY
  • PREHEAT GLOWPLUG
