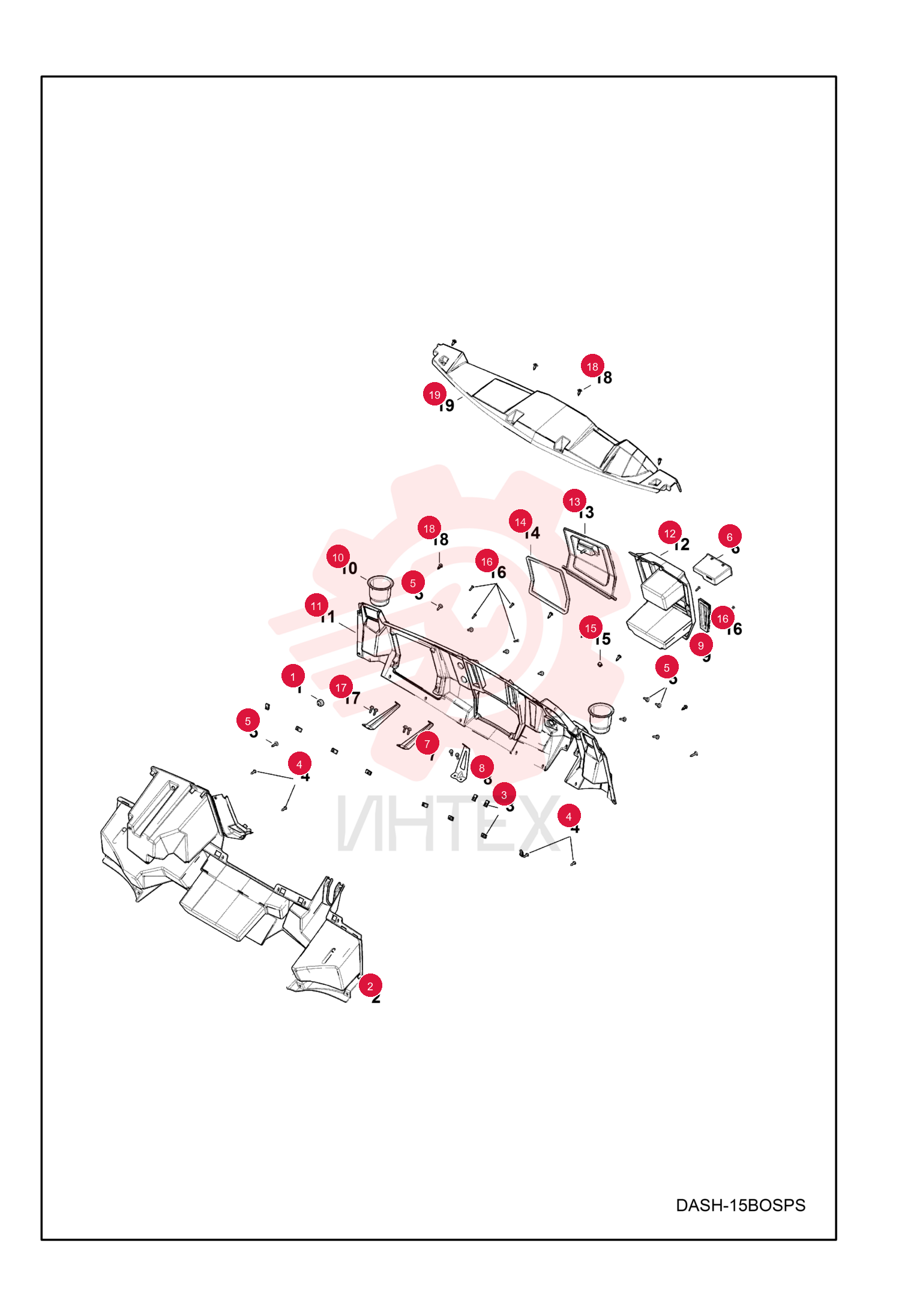

GROMMET 7016417 (4)

GROMMET 7016417 (4)

GROMMET 7016417 (4)

1 7016417

  • 7016417 - GROMMET

2 7027804

  • 7027804 - STORAGE
  • DASH

3 7023820

  • 7023820 - NUT

4 7016650

  • 7016650 - SCREW

5 7024692

  • 7024692 - BOLT

6 7252641

  • 7252641 - STORAGE

7 7249590

  • 7249590 - BRACKET
  • MOUNTING

8 7252640

  • 7252640 - BRACKET
  • DASH MOUNT UPPER

9 7027652

  • 7027652 - GROMMET
  • LEVER SHIFT

10 7016425

  • 7016425 - HOLDER
  • CUP

11 7027803

  • 7027803 - PANEL
  • DASH LOWER

12 7027825

  • 7027825 - PANEL
  • DASH CONTROLS

13 7027828

  • 7027828 - COVER
  • GLOVEBOX

14 7027684

  • 7027684 - SEAL
  • GLOVEBOX

15 7027713

  • 7027713 - PLUG

16 7016615

  • 7016615 - SCREW

17 7016645

  • 7016645 - SCREW

18 7016585

  • 7016585 - RIVET
  • TUFLOK
  • .315
  • .325X.787

19 7027826

  • 7027826 - PANEL
  • DASH UPPER
