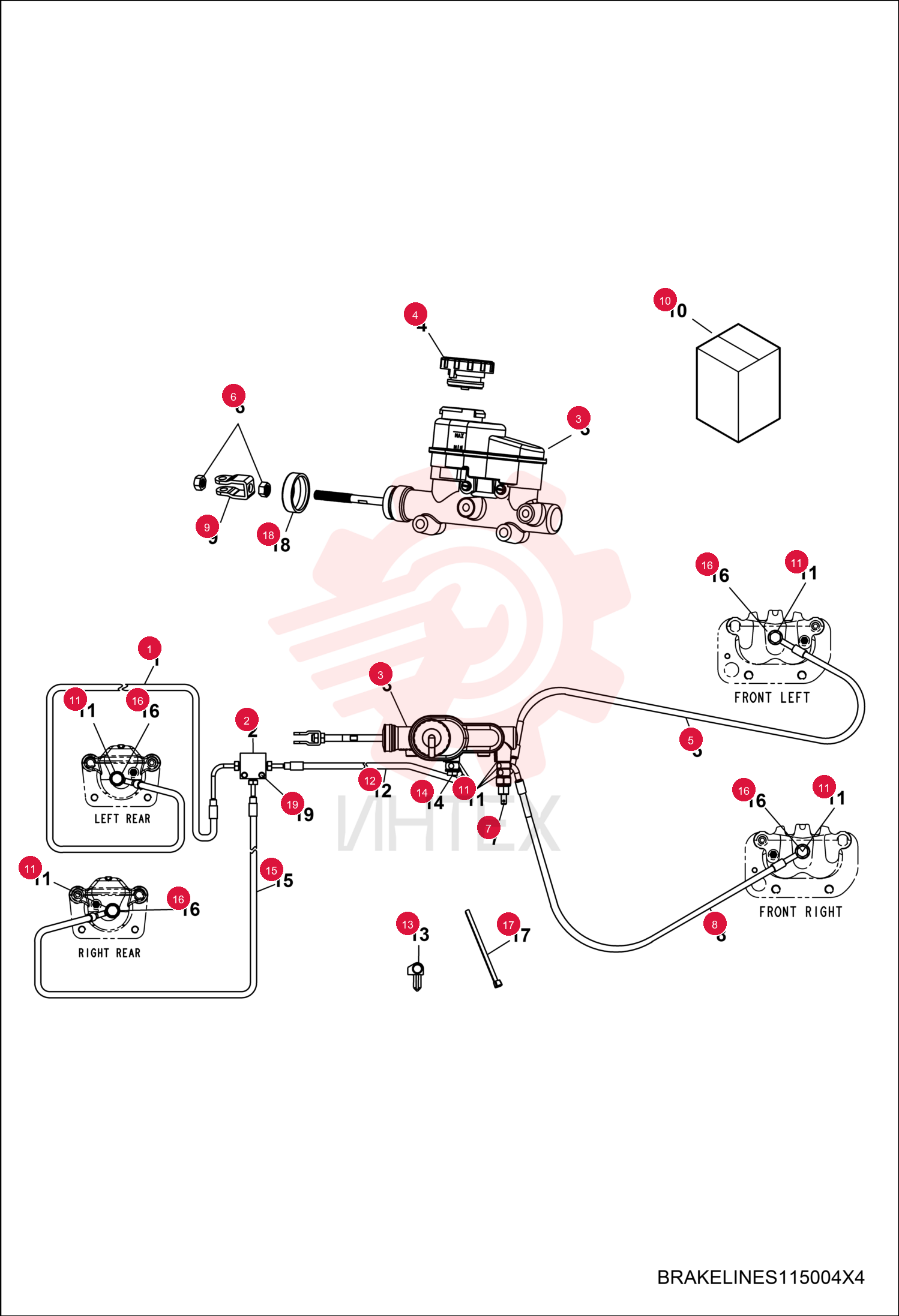

HOSE, LINE, BRAKE, REAR, LH, BRD 7016478 (1)

HOSE, LINE, BRAKE, REAR, LH, BRD 7016478 (1)

HOSE, LINE, BRAKE, REAR, LH, BRD 7016478 (1)

1 7016478

  • 7016478 - HOSE
  • LINE
  • BRAKE
  • REAR
  • LH
  • BRD

2 7016391

  • 7016391 - FITTING
  • TEE
  • BRAKE

3 7016059

  • 7016059 - CYLINDER
  • MASTER BRAKE
  • W/Ref. 4
  • 6
  • 9
  • 10 & 18 - Was 7025292

4 7025294

  • 7025294 - KIT
  • CAP

5 7016474

  • 7016474 - HOSE
  • LINE
  • BRAKE
  • FRONT
  • LH
  • BRD

6 7025296

  • 7025296 - KIT
  • NUT CLEVIS
  • consist of 2 jam nuts

7 7017584

  • 7017584 - KIT
  • NUTS CLEVIS M/C TANDEM
  • consist of 2 jam nuts

8 7258270

  • 7258270 - SENSOR
  • PRESS
  • With Pigtail

9 7017742

  • 7017742 - SWITCH
  • PRESS BRK M10 X 1.25 DBL
  • Without Pigtail

10 7016475

  • 7016475 - HOSE
  • LINE
  • BRAKE
  • FRONT
  • RH
  • BRD

11 7025295

  • 7025295 - KIT
  • CLEVIS

12 7017573

  • 7017573 - KIT
  • CLEVIS M/C TANDEM HB 3/4"

13 7016664

  • 7016664 - SEAL
  • STAT
  • O
  • 3/8
  • 70EP

14 7016476

  • 7016476 - HOSE
  • LINE
  • BRAKE
  • M/C
  • REAR
  • BRD
  • rear

15 7016306

  • 7016306 - CLIP

16 7016157

  • 7016157 - BOLT

17 7025308

  • 7025308 - TUBELINE
  • BRAKE

18 7016158

  • 7016158 - BOLT

19 7016245

  • 7016245 - TIE
  • CABLE

20 7017567

  • 7017567 - KIT
  • BOOT DUST

21 7018896

  • 7018896 - SCREW
