Bobcat
/
3400
/

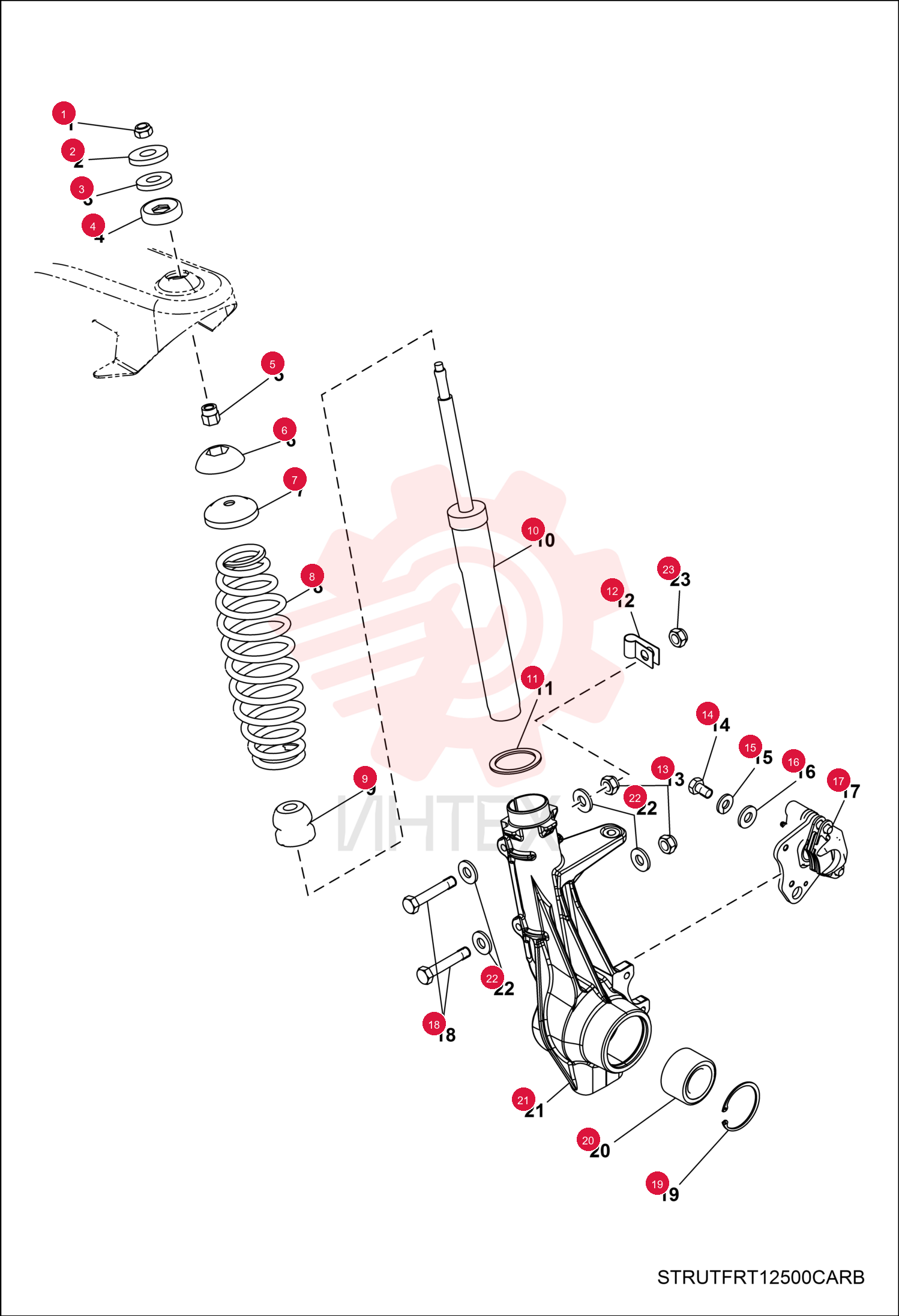

NUT 7016490 (3)

NUT 7016490 (3)

NUT 7016490 (3)

1 7016490

  • 7016490 - NUT

2 7016757

  • 7016757 - WASHER

3 7016686

  • 7016686 - SPACER
  • RUBBER

4 7016556

  • 7016556 - PIVOT
  • BALL
  • TOP

5 7016694

  • 7016694 - SPACER
  • 1/2
  • 20

6 7016555

  • 7016555 - PIVOT
  • BALL
  • BOTTOM

7 7016575

  • 7016575 - RETAINER
  • SPRING

8 7248217

  • 7248217 - SPRING
  • COIL

9 7016702

  • 7016702 - SPRING
  • 120#/IN
  • BLK

10 7016703

  • 7016703 - SPRING
  • 245#/IN
  • BLK
  • HD option

11 7016225

  • 7016225 - BUMPER
  • MCU
  • 17.8MM ID

12 7016718

  • 7016718 - STRUT
  • FRONT
  • 18X30MM
  • RGR/PPS
  • 18 x 30 mm

13 7016756

  • 7016756 - WASHER

14 7016285

  • 7016285 - CLAMP
  • CABLE

15 7016507

  • 7016507 - NUT

16 7016090

  • 7016090 - BOLT
  • assembles brake caliper

17 7016768

  • 7016768 - WASHER
  • SPRING LOCK
  • assembles brake caliper

18 7016779

  • 7016779 - WASHER
  • assembles brake caliper

19 7018894

  • 7018894 - BOLT

20 7016577

  • 7016577 - RING
  • RET.
  • 2. INTERNAL

21 7016080

  • 7016080 - BEARING
  • WHEEL
  • 35X64X37MM

22 7018872

  • 7018872 - SUPPORT
  • HUBSTRUT LH

23 7018873

  • 7018873 - SUPPORT
  • HUBSTRUT RH

24 7016766

  • 7016766 - WASHER
  • FLAT

25 7023350

  • 7023350 - NUT
  • LOCK
