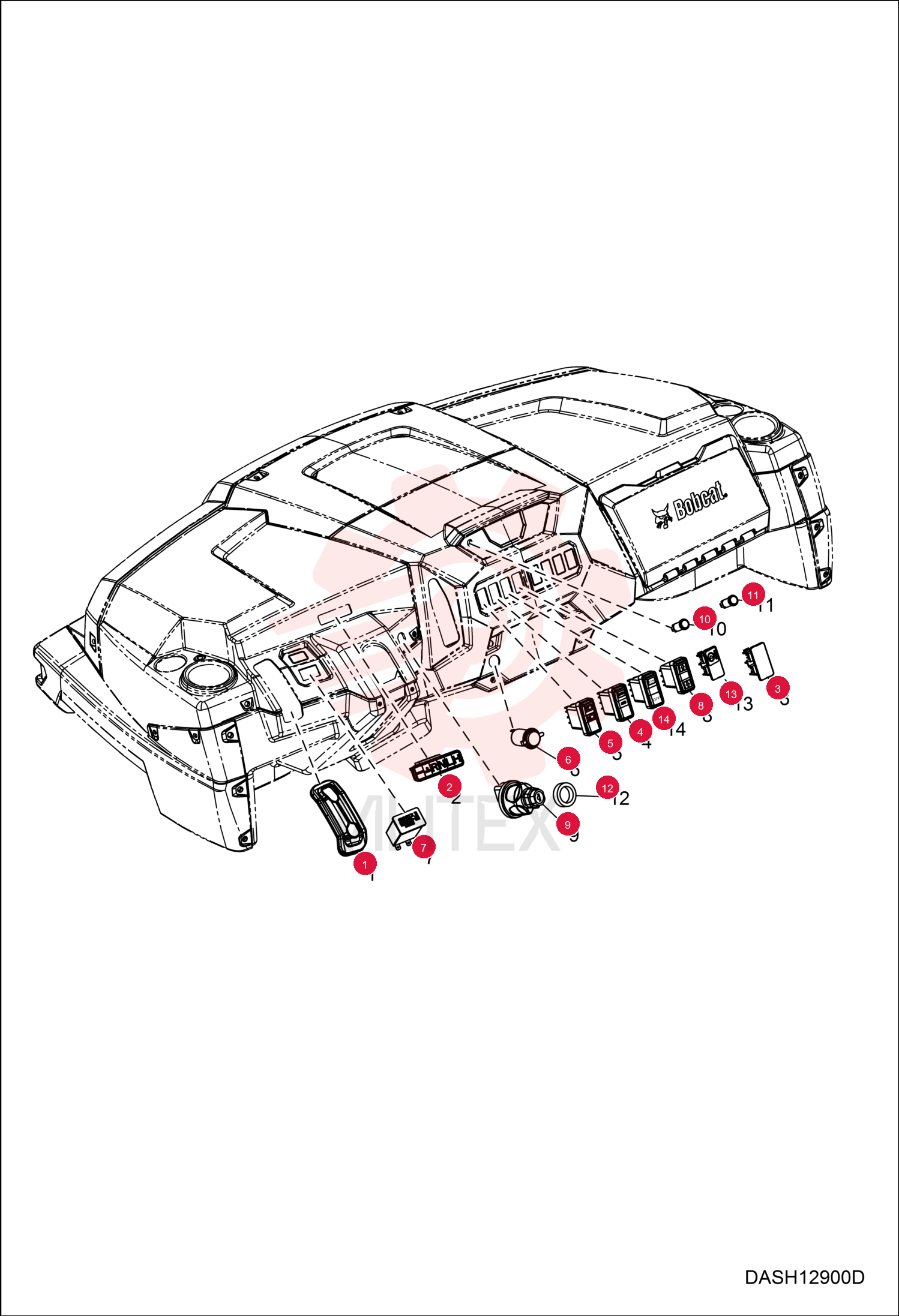

GROMMET, PARK BRAKE 7016416 (2)

GROMMET, PARK BRAKE 7016416 (2)

GROMMET, PARK BRAKE 7016416 (2)

1 7016416

  • 7016416 - GROMMET
  • PARK BRAKE

2 7327981

  • 7327981 - LIGHT BULB

3 7016533

  • 7016533 - PANEL
  • INDICATOR

4 7016565

  • 7016565 - PLUG
  • HOLE
  • CARLING ROCKER SWTCH

5 7016725

  • 7016725 - SWITCH
  • AWD

6 7016728

  • 7016728 - SWITCH
  • HEADLIGHT

7 7016570

  • 7016570 - RECEIVER
  • RECEPTACLE
  • POD MNT
  • 12 VOLT

8 7016451

  • 7016451 - HOURMETER
  • 12V
  • NON
  • POL
  • RECTNGLR

9 7020296

  • 7020296 - SWITCH
  • PUSH-BUTTON MOMENTARY
  • cargo lift

10 7016724

  • 7016724 - SWITCH
  • KEY
  • HEAVY
  • DUTY
  • 4 Pin Connector - use key 6693241

11 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

12 7016457

  • 7016457 - INDEX
  • INDICATOR
  • GLOW PLUG

13 7017552

  • 7017552 - SENSOR
  • INDICATOR OIL PRESSURE

14 7023409

  • 7023409 - SPACER

15 7023487

  • 7023487 - LIGHT
  • INDICATOR

16 7023488

  • 7023488 - SWITCH
  • ROCKER

17 7016729

  • 7016729 - SWITCH
  • ON/OFF
