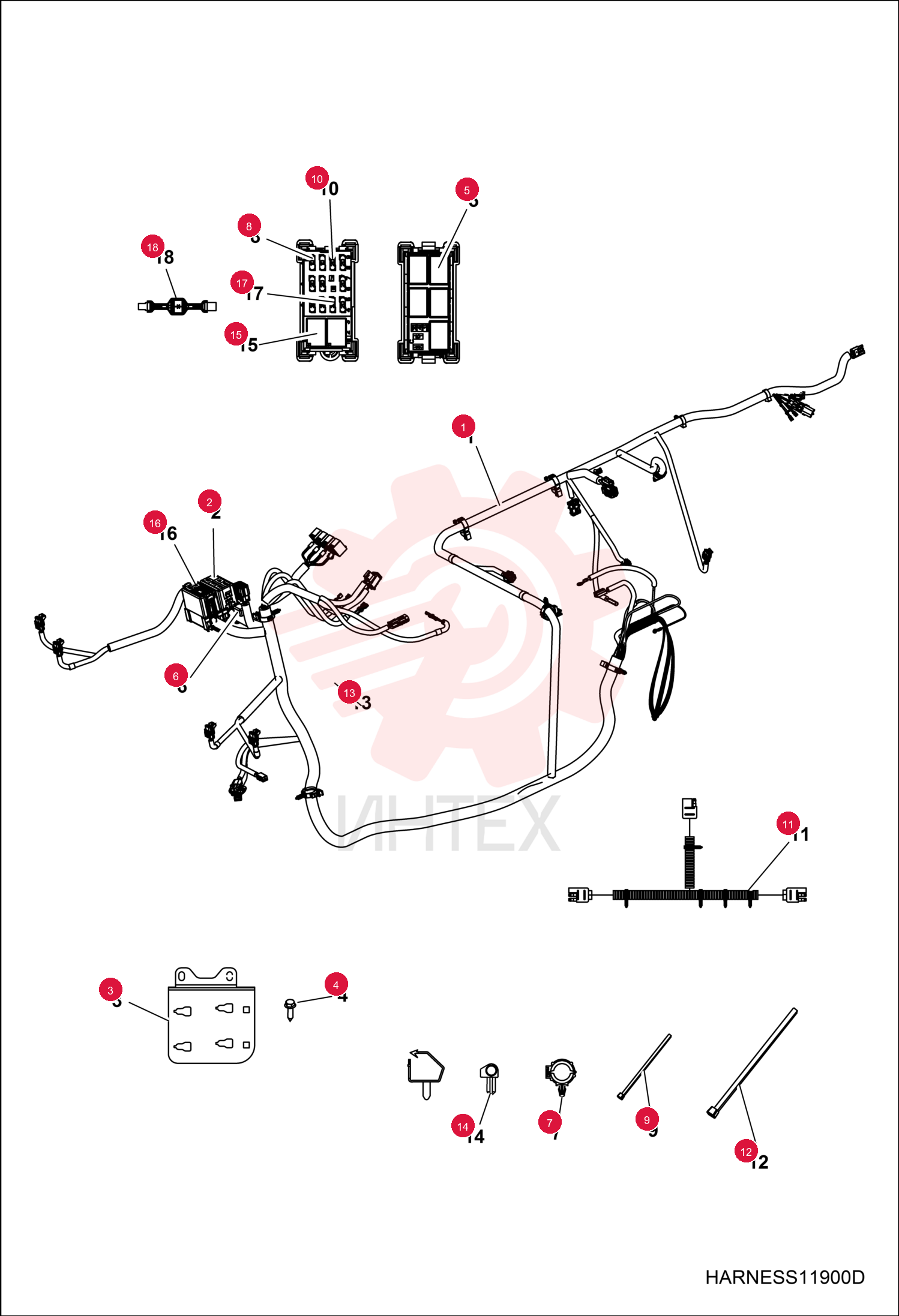

INSTRUCTIONS 6990024 (1)

INSTRUCTIONS 6990024 (1)

INSTRUCTIONS 6990024 (1)

1 6990024

  • 6990024 - INSTRUCTIONS

2 7017577

  • 7017577 - KIT
  • FUSIBLE LINK 2MM 6MM RING

3 7020267

  • 7020267 - HARNESS
  • MFR
  • W/Ref. 1
  • 2
  • 5
  • 6
  • 8
  • 10
  • 15-18 & All Kits

4 7020316

  • 7020316 - DECAL
  • FUSE BOX

5 7020306

  • 7020306 - PLATE
  • FUSE MOUNT

6 7016631

  • 7016631 - SCREW

7 7017643

  • 7017643 - RELAY
  • MICRO SPDT 35/20A SLD 12

8 7017469

  • 7017469 - BREAKER
  • CIRCUIT 20 AMP SEALED

9 7016309

  • 7016309 - CLIP
  • ROSEBUD

10 6707620

  • 6707620 - FUSE
  • 10A MINI 5
  • Was 7017531

11 7016245

  • 7016245 - TIE
  • CABLE

12 6707622

  • 6707622 - FUSE
  • 20A MINI 5
  • Was 7017533

13 7017545

  • 7017545 - HARNESS
  • CARGO BOX

14 7016246

  • 7016246 - TIE
  • CABLE
  • 14"
  • 355
  • 6 mm (14") long

15 7016315

  • 7016315 - CLIP
  • ROUTING

16 7016306

  • 7016306 - CLIP

17 7017644

  • 7017644 - RELAY
  • SPDT SERIES 301 SEALED

18 7020315

  • 7020315 - DECAL
  • FUSE BOX

19 7017532

  • 7017532 - FUSE
  • MAIN 30 AMP

20 7017511

  • 7017511 - RESISTOR
  • DIODE 6AMP 1/4 3/16 TERM
