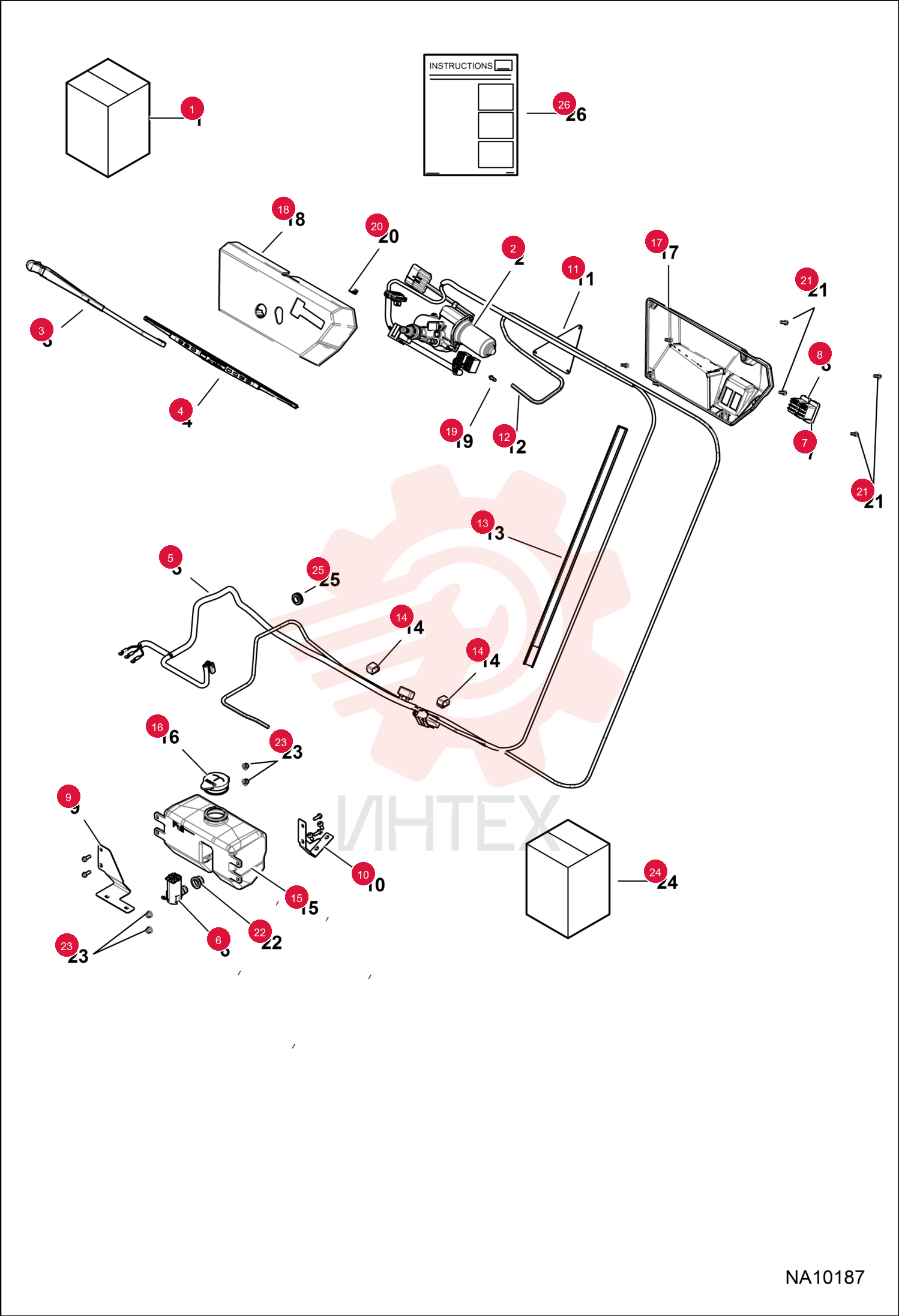

KIT, WASHER 7246232 (2)

KIT, WASHER 7246232 (2)

KIT, WASHER 7246232 (2)

1 7246232

  • 7246232 - KIT
  • WASHER
  • Ref. 2-26

2 7027534

  • 7027534 - MOTOR
  • WIPER

3 7027535

  • 7027535 - ARM
  • WIPER

4 7027536

  • 7027536 - BLADE
  • WIPER WSHLD

5 7249563

  • 7249563 - HARNESS
  • WIPER

6 7249562

  • 7249562 - PUMP
  • WIPER WASHER

7 7027631

  • 7027631 - SWITCH
  • WASH WIPER

8 7027632

  • 7027632 - SWITCH
  • WIPER LOW HIGH

9 7252808

  • 7252808 - BRACKET
  • WASHERBOTTLE FRONT

10 7252809

  • 7252809 - BRACKET
  • WASHER BOTTLE SIDE

11 7252813

  • 7252813 - RETAINER
  • MOTOR WIPER

12 7252811

  • 7252811 - HOSE
  • WIPER WSHR FLUID

13 7252814

  • 7252814 - GUIDE
  • HARNESS

14 7252815

  • 7252815 - GUIDE
  • HARNESS

15 7252805

  • 7252805 - BOTTLE
  • WASHER WIPER FLUID

16 7252807

  • 7252807 - LID
  • BOTTLE WASHER

17 7252812

  • 7252812 - COVER
  • WIPER WSHLD

18 7252810

  • 7252810 - MNT
  • WIPER WSHLD

19 7252816

  • 7252816 - FITTING
  • BARB HOSE

20 7252817

  • 7252817 - CLIP
  • HARNESS

21 7016615

  • 7016615 - SCREW

22 7252950

  • 7252950 - GROMMET
  • PUMP WSHR FLUID

23 7016524

  • 7016524 - NUT

24 7027537

  • 7027537 - KIT
  • HDWE WIPER

25 7025411

  • 7025411 - GROMMET

26 7246255ENUS

  • 7246255ENUS - INSTRUCTIONS
  • Was 7246255
