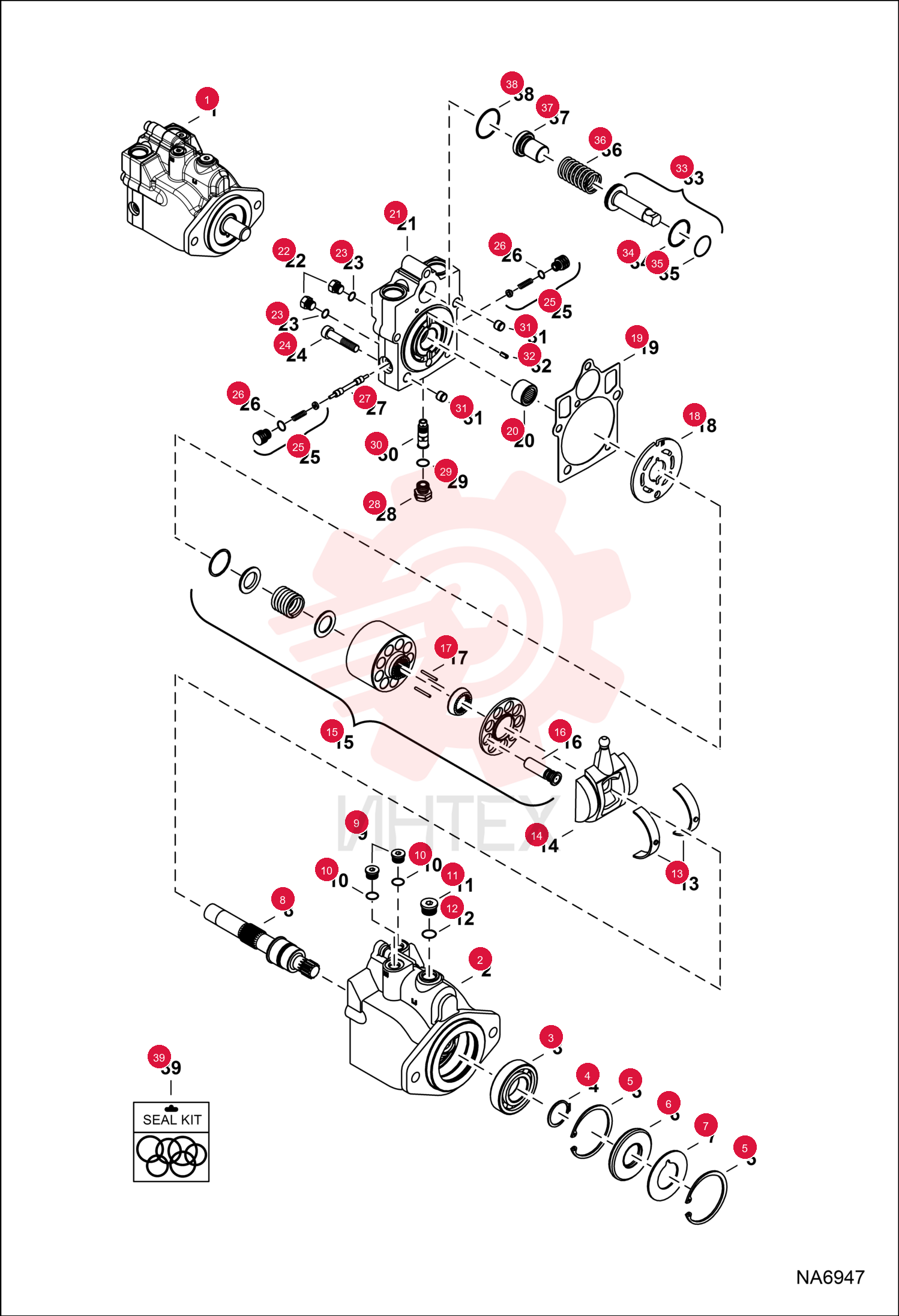

MOTOR, DRIVE HYD 7252861 (6)

MOTOR, DRIVE HYD 7252861 (6)

MOTOR, DRIVE HYD 7252861 (6)

1 7252861

  • 7252861 - MOTOR
  • DRIVE HYD
  • W/Ref. 2-38

2 654299

  • 654299 - BEARING

3 658128

  • 658128 - RING
  • SNAP

4 669863

  • 669863 - RING
  • SNAP

5 7296603

  • 7296603 - SEAL
  • SHAFT
  • Was 6687191

6 7024884

  • 7024884 - WASHER
  • Was 6669409

7 7027082

  • 7027082 - SHAFT

8 6640614

  • 6640614 - PLUG

9 6661481

  • 6661481 - O-RING

10 79K8

  • 79K8 - O RING 10

11 7027083

  • 7027083 - BEARING
  • ROLLER

12 7027084

  • 7027084 - SWASHPLATE

13 7027085

  • 7027085 - GROUP
  • ROTATING
  • W/Ref. 16 & 17

14 7027137

  • 7027137 - PISTON
  • ASSY

15 6678387

  • 6678387 - PIN

16 7027086

  • 7027086 - PLATE
  • VALVE

17 6667398

  • 6667398 - BEARING

18 6645085

  • 6645085 - PLUG

19 79K4

  • 79K4 - O RING 10
  • Was 91F3

20 7027087

  • 7027087 - BOLT

21 7027088

  • 7027088 - KIT
  • PLUG SPRING

22 6661481

  • 6661481 - O-RING

23 7027089

  • 7027089 - SPOOL

24 7027090

  • 7027090 - PLUG

25 6678371

  • 6678371 - O-RING

26 7027091

  • 7027091 - POPPET
  • VALVE RELIEF

27 7027133

  • 7027133 - PIN

28 6634553

  • 6634553 - PIN

29 7027093

  • 7027093 - PISTON
  • POSITIONING

30 7027136

  • 7027136 - O-RING

31 7027132

  • 7027132 - O-RING

32 7027134

  • 7027134 - SPRING

33 7027135

  • 7027135 - SEAT
  • SPRING

34 7027092

  • 7027092 - KIT
  • SEAL
  • Ref. 6
  • 10
  • 11
  • 19
  • 23
  • 26
  • 29
  • 34
  • 35 & 38
