Bobcat
/
3600
/

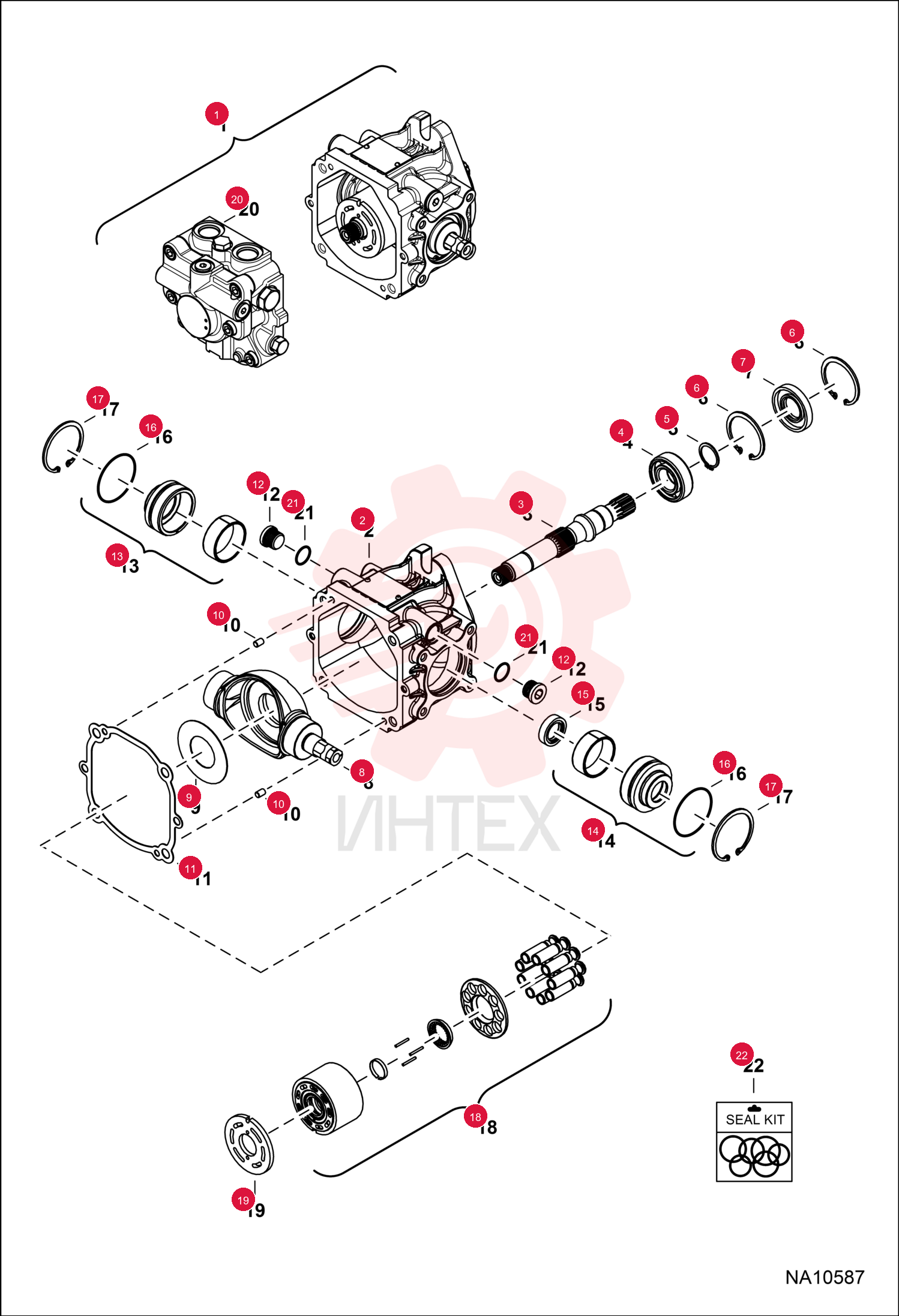

PUMP, GEROTOR 7251407 (3)

PUMP, GEROTOR 7251407 (3)

PUMP, GEROTOR 7251407 (3)

1 7251407

  • 7251407 - PUMP
  • GEROTOR

2 7025177

  • 7025177 - HOUSING

3 7271869

  • 7271869 - SHAFT

4 7025163

  • 7025163 - BEARING
  • BALL

5 7025169

  • 7025169 - RING
  • RETAINING

6 7025171

  • 7025171 - RING
  • RETAINING

7 7025173

  • 7025173 - SEAL
  • SHAFT

8 7025184

  • 7025184 - SWASHPLATE

9 7025167

  • 7025167 - PLATE
  • THRUST

10 7027130

  • 7027130 - PIN

11 7025176

  • 7025176 - GASKET

12 7271870

  • 7271870 - PLUG ASSEMBLY

13 7025151

  • 7025151 - HOUSING
  • BEARING
  • W/Ref. 16

14 7025150

  • 7025150 - HOUSING
  • BEARING
  • W/Ref. 15
  • & 16

15 7025172

  • 7025172 - SEAL
  • SHAFT

16 7023018

  • 7023018 - ORING
  • Was 7027131

17 7271871

  • 7271871 - RING
  • RETAINING
  • Was 7271871

18 7025157

  • 7025157 - KIT
  • BLOCK ROTATING

19 7025156

  • 7025156 - PLATE
  • VALVE

20 7025158

  • 7025158 - KIT
  • SEAL
  • W/Ref. 7
  • 11
  • 15
  • & 16
