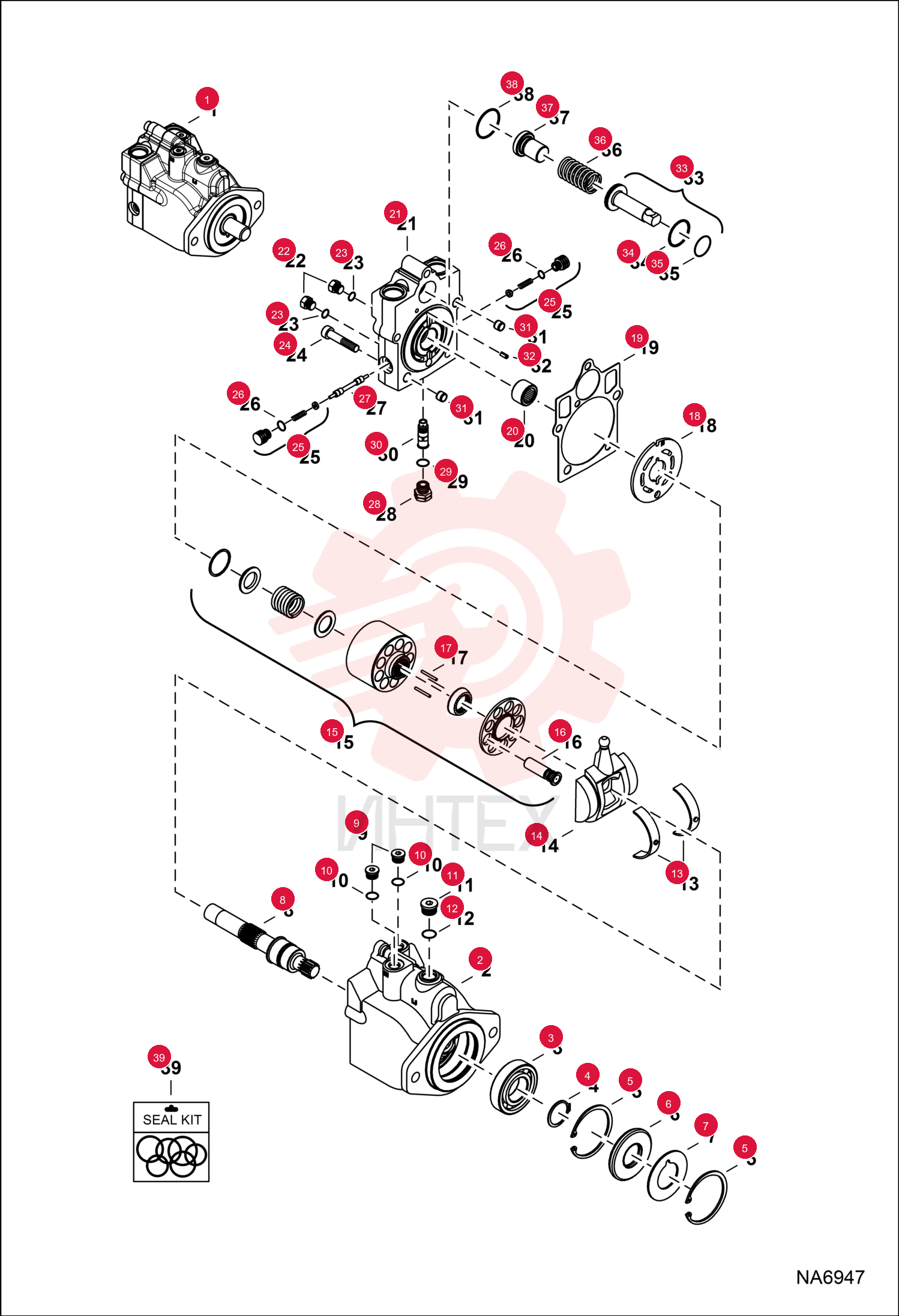

MOTOR, DRIVE HYD 7252861 (2)

MOTOR, DRIVE HYD 7252861 (2)

MOTOR, DRIVE HYD 7252861 (2)

1 7252861

  • 7252861 - MOTOR
  • DRIVE HYD

2 7252861

  • 7252861 - MOTOR
  • DRIVE HYD
  • Was 7023338

3 654299

  • 654299 - BEARING

4 658128

  • 658128 - RING
  • SNAP

5 669863

  • 669863 - RING
  • SNAP

6 6645090

  • 6645090 - SEAL

7 7024884

  • 7024884 - WASHER
  • Was 6669409

8 7027082

  • 7027082 - SHAFT

9 6640614

  • 6640614 - PLUG

10 6661481

  • 6661481 - O-RING

11 6667402

  • 6667402 - PLUG
  • W/Ref. 12

12 79K8

  • 79K8 - O RING 10

13 7027083

  • 7027083 - BEARING
  • ROLLER

14 7027084

  • 7027084 - SWASHPLATE

15 7027085

  • 7027085 - GROUP
  • ROTATING
  • W/Ref. 16 & 17

16 7027137

  • 7027137 - PISTON
  • ASSY

17 6678387

  • 6678387 - PIN

18 7027086

  • 7027086 - PLATE
  • VALVE

19 6667398

  • 6667398 - BEARING

20 6645085

  • 6645085 - PLUG

21 79K4

  • 79K4 - O RING 10
  • Was 91F3

22 7027087

  • 7027087 - BOLT

23 7027088

  • 7027088 - KIT
  • PLUG SPRING

24 6661481

  • 6661481 - O-RING

25 7027089

  • 7027089 - SPOOL

26 7027090

  • 7027090 - PLUG

27 6678371

  • 6678371 - O-RING

28 7027091

  • 7027091 - POPPET
  • VALVE RELIEF

29 7027133

  • 7027133 - PIN

30 6634553

  • 6634553 - PIN

31 7027093

  • 7027093 - PISTON
  • POSITIONING

32 7027136

  • 7027136 - O-RING

33 7027132

  • 7027132 - O-RING

34 7027134

  • 7027134 - SPRING

35 7027135

  • 7027135 - SEAT
  • SPRING

36 7027092

  • 7027092 - KIT
  • SEAL
  • Ref. 6
  • 10
  • 11
  • 19
  • 23
  • 26
  • 29
  • 34
  • 35 & 38
