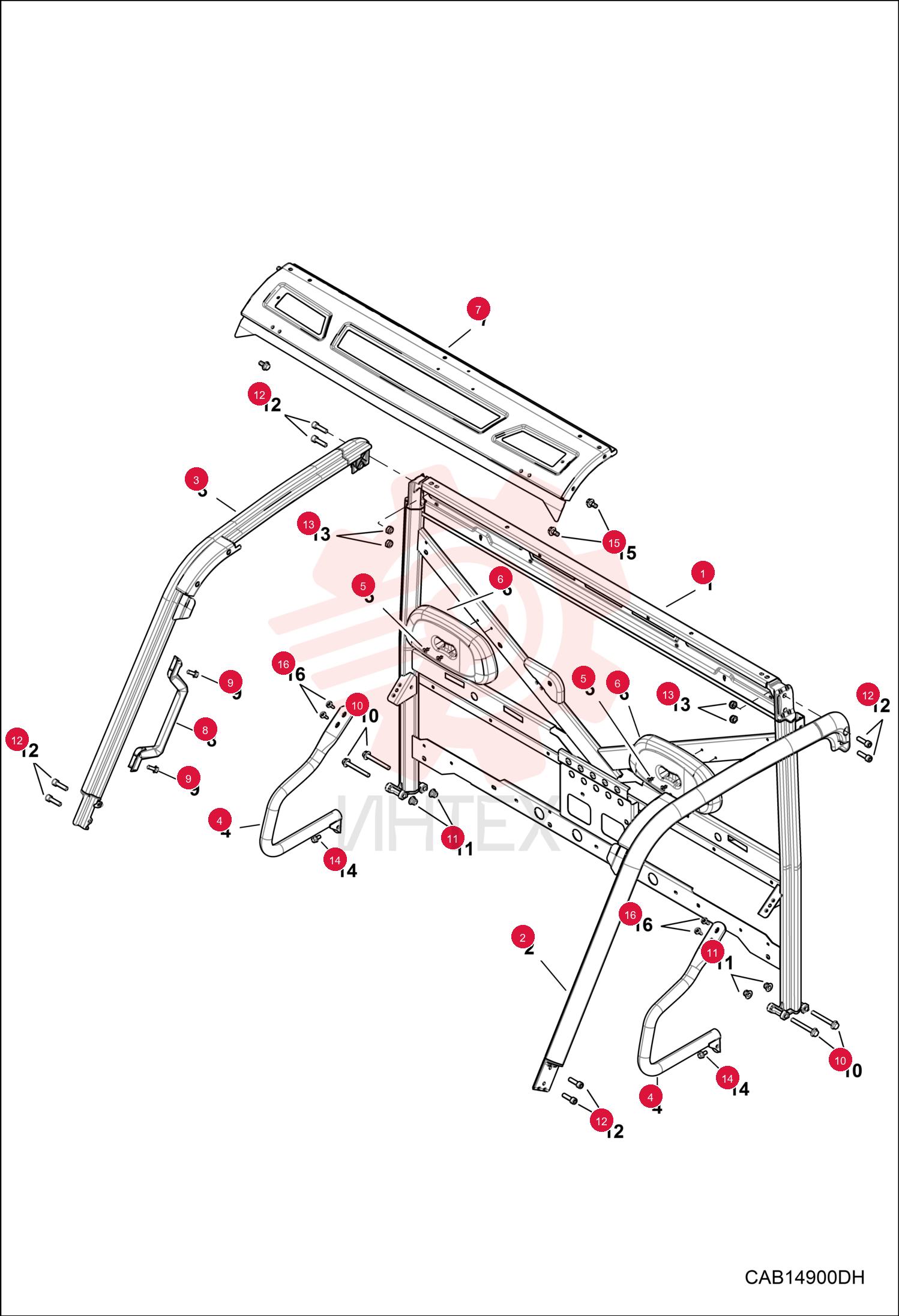

FRAME, CAB 7252822

FRAME, CAB 7252822

FRAME, CAB 7252822

1 7252822

  • 7252822 - FRAME
  • CAB

2 7252823

  • 7252823 - FRAME
  • CAB

3 7252824

  • 7252824 - FRAME
  • CAB

4 7252825

  • 7252825 - BOLSTER
  • HIP RH

5 7027759

  • 7027759 - RIVET

6 7016423

  • 7016423 - FLANGE
  • HEADREST
  • BLK

7 7025544

  • 7025544 - PLATE
  • MOUNTING WINDSHIELD

8 7252826

  • 7252826 - HANDLE
  • GRIP

9 7016175

  • 7016175 - BOLT

10 7025497

  • 7025497 - BOLT
  • FLANGE

11 7016518

  • 7016518 - NUT

12 7025483

  • 7025483 - SCREW
  • MACHINE

13 7025506

  • 7025506 - NUT
  • LOCK

14 7025485

  • 7025485 - BOLT
  • FLANGE

15 7016169

  • 7016169 - BOLT

16 7024692

  • 7024692 - BOLT
