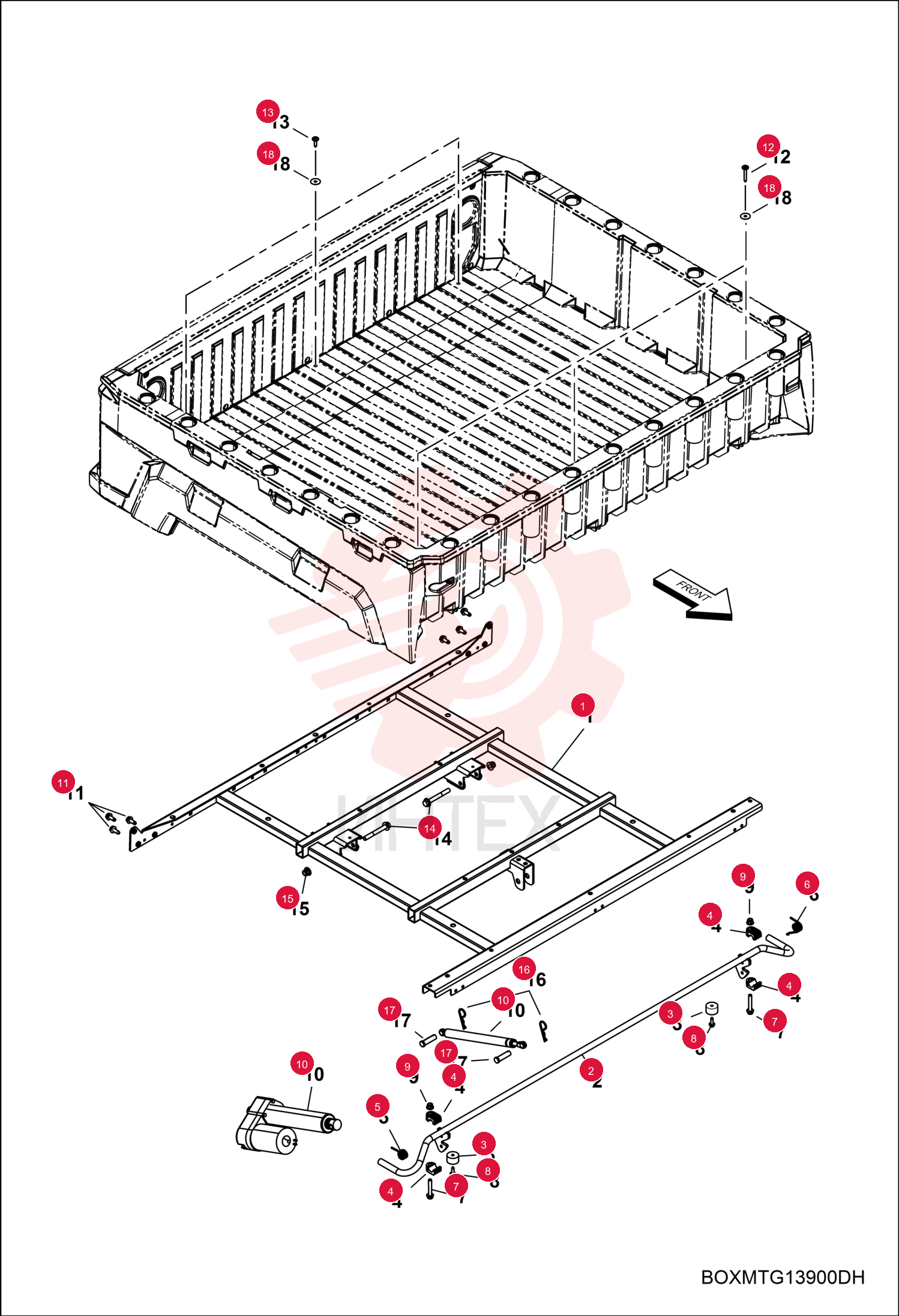

SUPPORT, BOX LONG BLACK 7249564

SUPPORT, BOX LONG BLACK 7249564

SUPPORT, BOX LONG BLACK 7249564

1 7249564

  • 7249564 - SUPPORT
  • BOX LONG BLACK

2 7025525

  • 7025525 - SUPPORT
  • BOX LONG
  • Was 7025525

3 7025524

  • 7025524 - LATCH
  • BOX
  • W/O power lift actuator

4 7025410

  • 7025410 - BUMPER
  • RUBBER

5 7016238

  • 7016238 - BUSHING
  • BOX
  • LATCH
  • W/O power lift actuator

6 7016713

  • 7016713 - SPRING
  • LATCH
  • W/O power lift actuator

7 7016714

  • 7016714 - SPRING
  • LATCH
  • W/O power lift actuator

8 7025484

  • 7025484 - BOLT
  • FLANGE
  • W/O power lift actuator

9 7016645

  • 7016645 - SCREW

10 7027759

  • 7027759 - RIVET

11 7016527

  • 7016527 - NUT

12 7027629

  • 7027629 - ACTUATOR
  • LIFT BOX
  • optional

13 7025451

  • 7025451 - SHOCK
  • DAMPER
  • W/O power lift actuator

14 7016175

  • 7016175 - BOLT

15 7025500

  • 7025500 - BOLT

16 7024692

  • 7024692 - BOLT

17 7025497

  • 7025497 - BOLT
  • FLANGE

18 7016518

  • 7016518 - NUT

19 7016314

  • 7016314 - CLIP
  • HITCHPIN .148X3 1/16

20 7016546

  • 7016546 - PIN
  • CLEVIS
  • 1/2 X 1 3/4

21 7016771

  • 7016771 - WASHER
