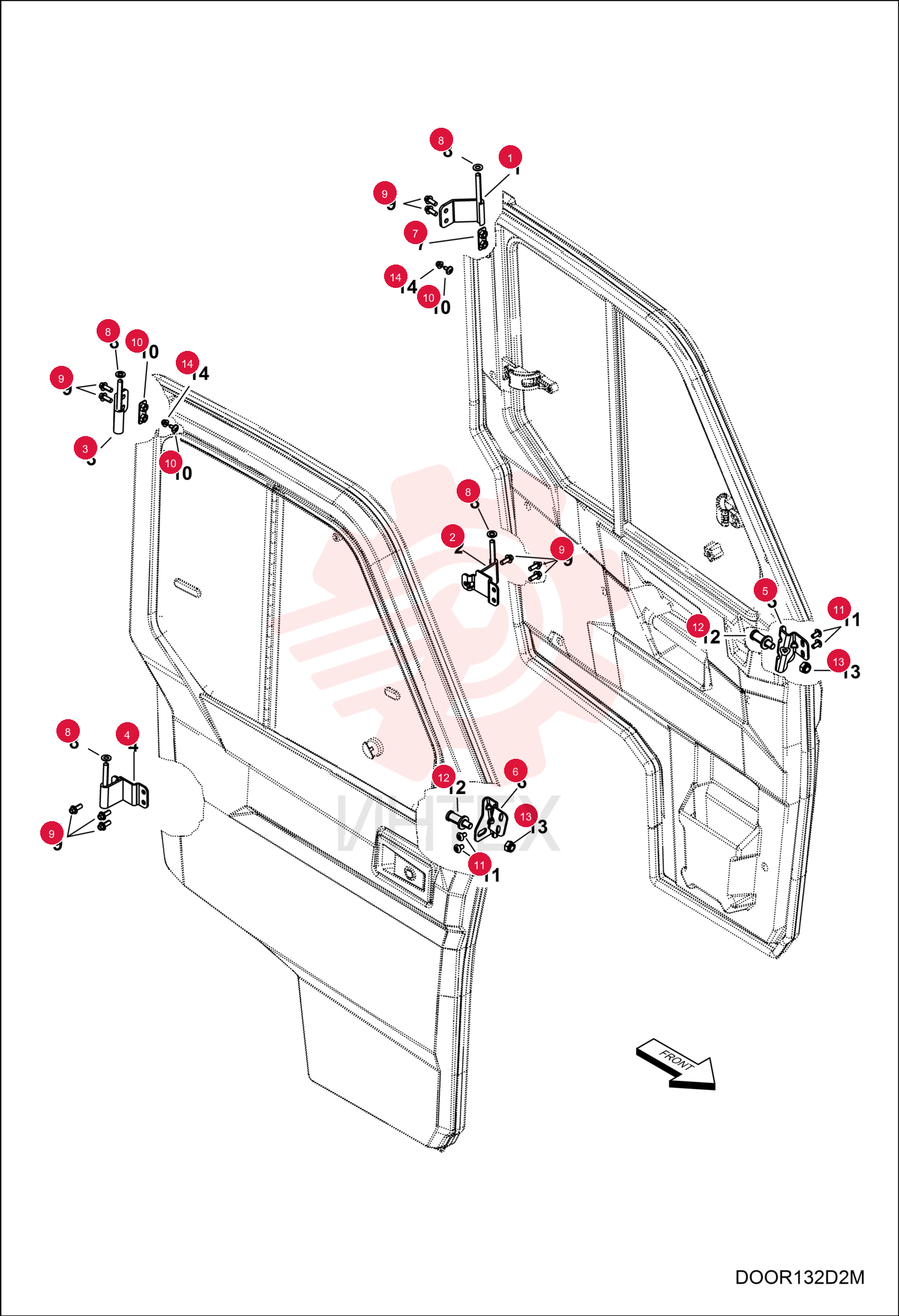

HINGE, UPPER RH 7252643

HINGE, UPPER RH 7252643

HINGE, UPPER RH 7252643

1 7252643

  • 7252643 - HINGE
  • UPPER RH

2 7027778

  • 7027778 - HINGE
  • UPPER LH

3 7030240

  • 7030240 - HINGE
  • DOOR CAB

4 7027776

  • 7027776 - HINGE
  • LOWER LH

5 7252644

  • 7252644 - HINGE
  • UPPER RH

6 7027779

  • 7027779 - HINGE
  • UPPER RH

7 7030241

  • 7030241 - HINGE
  • DOOR CAB

8 7027777

  • 7027777 - HINGE
  • LOWER RH

9 7027800

  • 7027800 - BRACKET
  • ADJUST STRIKER LH

10 7027800

  • 7027800 - BRACKET
  • ADJUST STRIKER LH

11 7027801

  • 7027801 - BRACKET
  • ADJUST STRIKER RH

12 7027801

  • 7027801 - BRACKET
  • ADJUST STRIKER RH

13 7260666

  • 7260666 - PLATE
  • HINGE
  • Was 7027641

14 7027673

  • 7027673 - WASHER

15 7016640

  • 7016640 - SCREW

16 7024692

  • 7024692 - BOLT

17 7024693

  • 7024693 - BOLT

18 7027741

  • 7027741 - SCREW

19 7027744

  • 7027744 - STRIKER

20 7027749

  • 7027749 - NUT
  • LOCK

21 7016525

  • 7016525 - NUT
