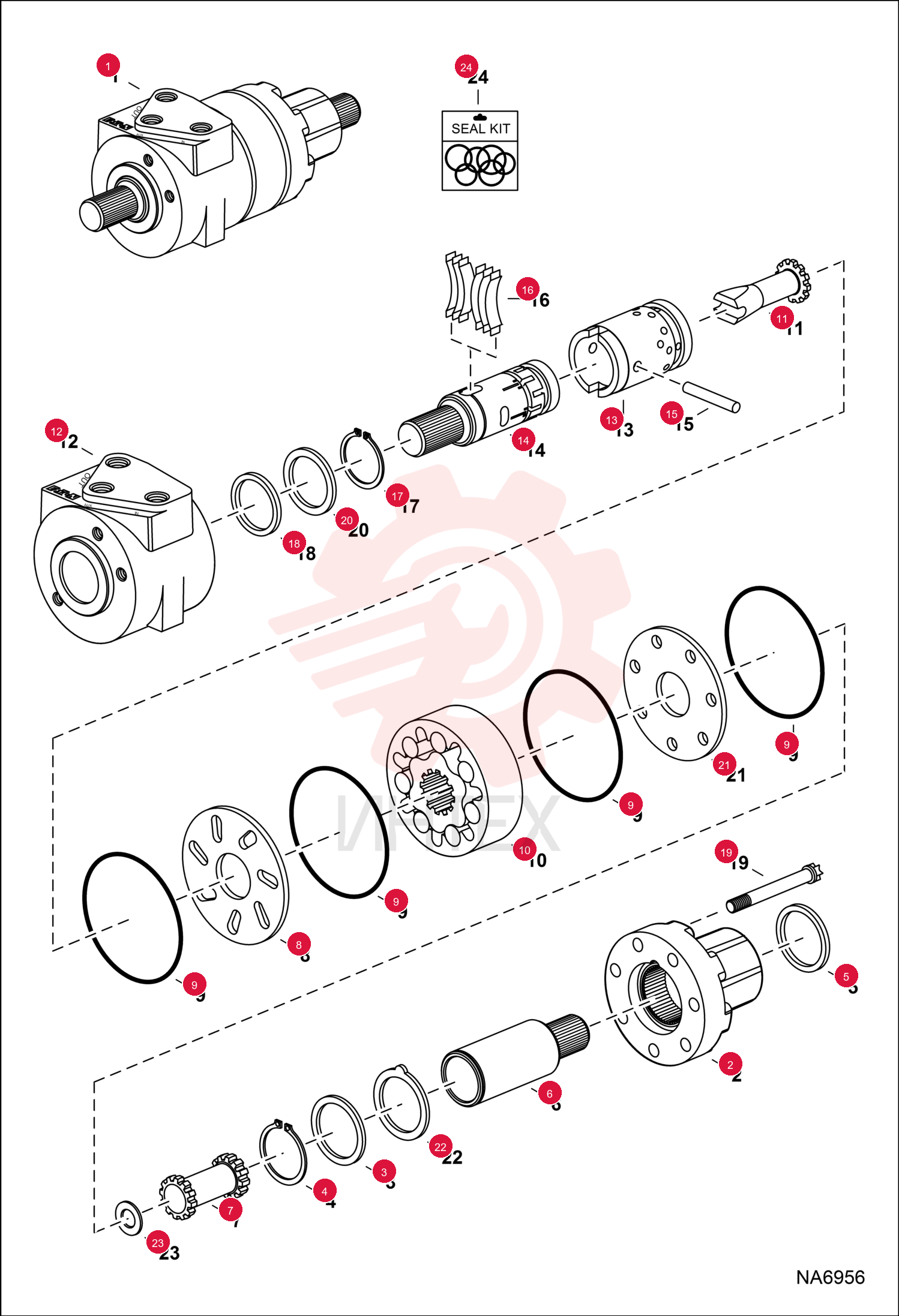

MOTOR, STEERING POWER 7252920

MOTOR, STEERING POWER 7252920

MOTOR, STEERING POWER 7252920

1 7252920

  • 7252920 - MOTOR
  • STEERING POWER

2 7024857

  • 7024857 - MOTOR
  • STEERING POWER

3 7027098

  • 7027098 - HOUSING
  • END POWER

4 7027099

  • 7027099 - WASHER

5 7027100

  • 7027100 - RING
  • RETAINING

6 7027105

  • 7027105 - SHAFT
  • END POWER

7 7027110

  • 7027110 - PLATE
  • SPACER

8 7027106

  • 7027106 - SECTION
  • GEROLER

9 7027107

  • 7027107 - SHAFT
  • END CONTROL

10 7027111

  • 7027111 - RING
  • RETAINING

11 6678747

  • 6678747 - BOLT
  • Was 7027104

12 7027101

  • 7027101 - WASHER

13 7027102

  • 7027102 - PLATE
  • SPACER

14 7027103

  • 7027103 - WASHER

15 7027108

  • 7027108 - SPACER

16 7027109

  • 7027109 - KIT
  • SEAL
  • Ref. 5
  • 9 & 18
