Bobcat
/
430.0
/

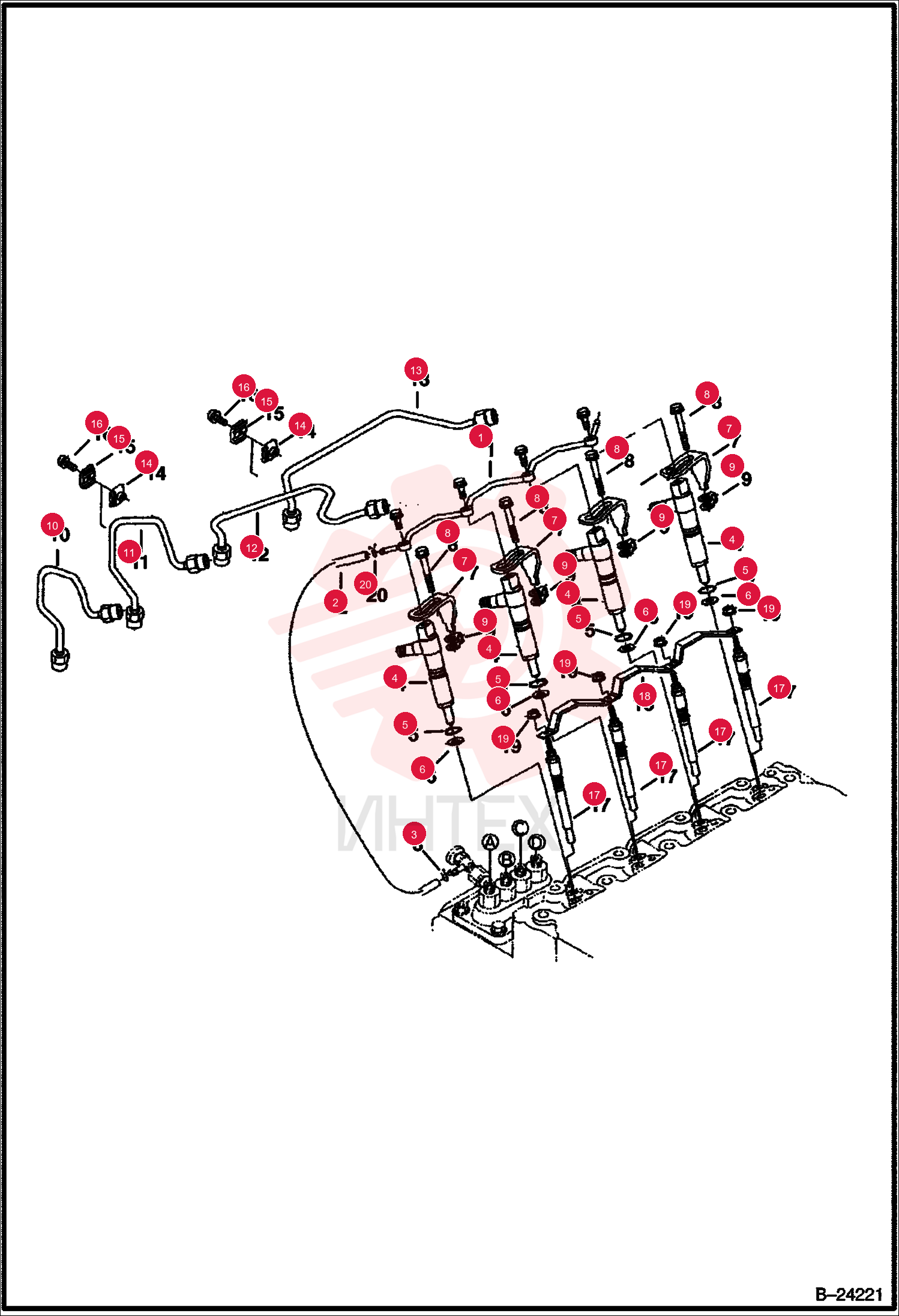

PIPE 6684842 (3)

PIPE 6684842 (3)

PIPE 6684842 (3)

1 6684842

  • 6684842 - PIPE

2 6598146

  • 6598146 - PIPE
  • W/Ref. 3
  • 20

3 6654718

  • 6654718 - CLAMP 5
  • pipe - Was 6680795

4 6685101

  • 6685101 - INJECTOR
  • FUEL ASSY

5 6670769

  • 6670769 - O-RING

6 6969824

  • 6969824 - GASKET
  • NOZZLE INJ
  • Was 6680779

7 7015275

  • 7015275 - CLAMP
  • INJECTION
  • nozzle - Was 6684845

8 6684844

  • 6684844 - BOLT

9 6685498

  • 6685498 - GASKET

10 6685102

  • 6685102 - PIPE

11 6685103

  • 6685103 - PIPE

12 6684848

  • 6684848 - PIPE

13 6684849

  • 6684849 - PIPE

14 6652688

  • 6652688 - CLAMP
  • Was 6680785

15 6652689

  • 6652689 - CLAMP
  • pipe - Was 6680786

16 3974260

  • 3974260 - SCREW

17 6684850

  • 6684850 - GLOW PLUG

18 6969825

  • 6969825 - CORD
  • GLOW PLUG
  • Was 6684851

19 6670472

  • 6670472 - NUT

20 6654718

  • 6654718 - CLAMP 5
