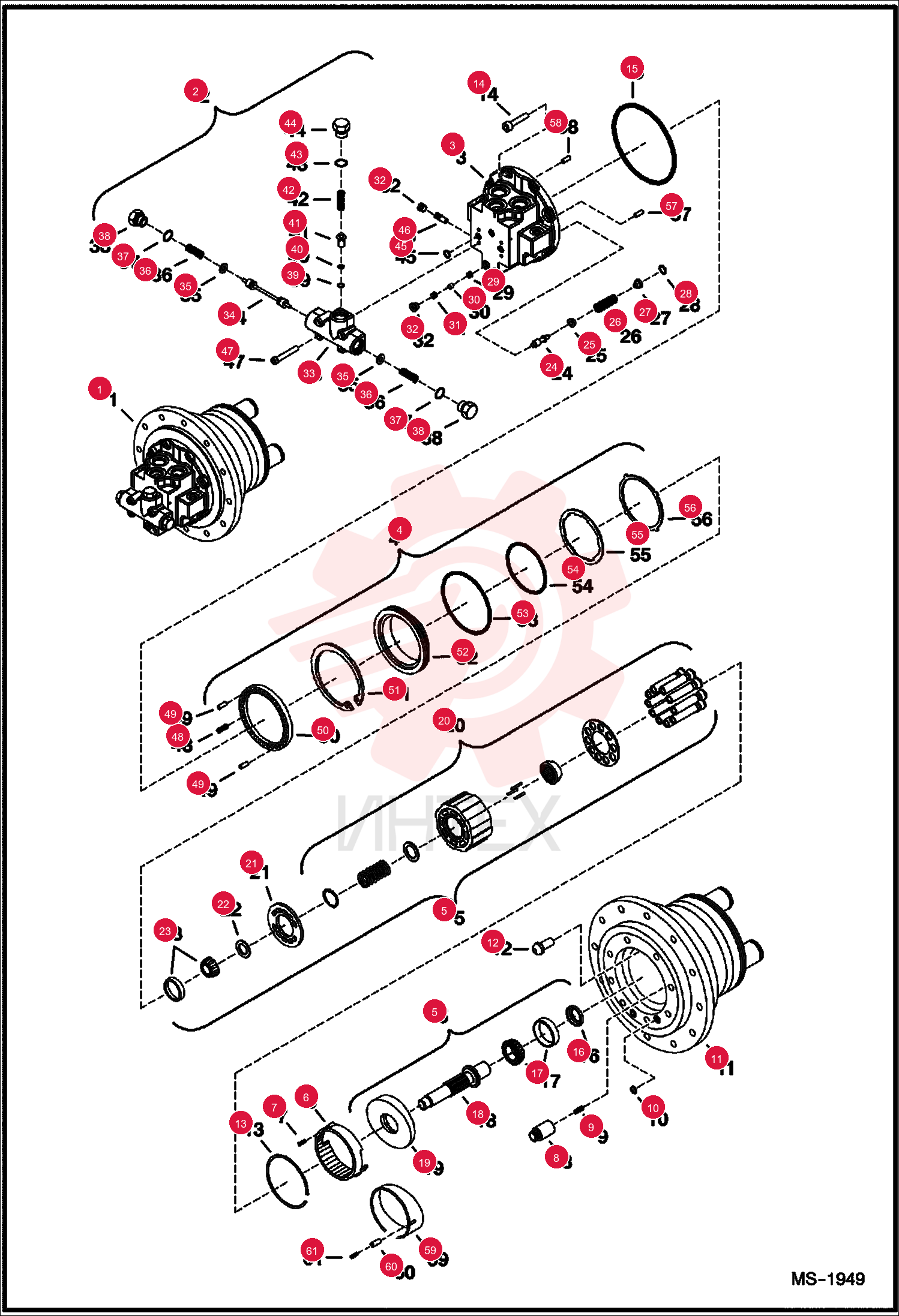

PLATE 6686298 (6)

PLATE 6686298 (6)

PLATE 6686298 (6)

1 6686298

  • 6686298 - PLATE
  • Ref. 24-47

2 6686598

  • 6686598 - PRESSURE RING
  • complete pressure - Ref. 48-56

3 6686297

  • 6686297 - ROTARY GROUP
  • Ref. 16-22

4 6686301

  • 6686301 - STOP
  • assy - W/Ref. 7 - Was 6686617

5 6686607

  • 6686607 - SPRING
  • pressure

6 6686300

  • 6686300 - ASSY
  • PISTON

7 6686307

  • 6686307 - SPRING
  • pressure

8 6686936

  • 6686936 - GASKET

9 6691509

  • 6691509 - SPINDLE

10 6686302

  • 6686302 - SWIVEL
  • BALL JOINT

11 6686626

  • 6686626 - CLIP

12 6686304

  • 6686304 - SCREW
  • socket

13 6686937

  • 6686937 - O-RING
  • Was 6686305

14 6686313

  • 6686313 - SEAL
  • RING
  • seal

15 6686311

  • 6686311 - BEARING

16 6686309

  • 6686309 - SHAFT

17 6686618

  • 6686618 - CONNECTOR

18 6691507

  • 6691507 - ROTARY GRP

19 6691611

  • 6691611 - PLATE
  • control

20 6686312

  • 6686312 - SHIM

21 6686310

  • 6686310 - BEARING

22 6686316

  • 6686316 - PISTON
  • control

23 6686317

  • 6686317 - COLLAR
  • spring

24 6686319

  • 6686319 - SPRING
  • pressure

25 6686318

  • 6686318 - COLLAR
  • spring

26 6686323

  • 6686323 - RING
  • RETAINER
  • retaining

27 6686321

  • 6686321 - SCREW
  • throttle

28 6691476

  • 6691476 - PIN

29 6686320

  • 6686320 - SCREW
  • throttle

30 6682878

  • 6682878 - PLUG
  • locking - Was 6686322

31 6686315

  • 6686315 - VALVE
  • pressure

32 6967785

  • 6967785 - WASHER

33 6967786

  • 6967786 - SPRING
  • PRESS
  • pressure

34 6686602

  • 6686602 - O-RING

35 6967783

  • 6967783 - LOCKING SCREW

36 6666369

  • 6666369 - SNAP RING
  • retaining

37 6967699

  • 6967699 - ORIFICE
  • Was 6691510

38 6967782

  • 6967782 - VALVE PISTON

39 6674042

  • 6674042 - SPRING

40 6686601

  • 6686601 - O-RING

41 6967784

  • 6967784 - LOCKING SCREW

42 6967784

  • 6967784 - LOCKING SCREW

43 6686936

  • 6686936 - GASKET

44 6686314

  • 6686314 - VALVE
  • shuttle

45 6671889

  • 6671889 - SCREW

46 6686624

  • 6686624 - SPRING
  • pressure

47 6686606

  • 6686606 - PIN

48 6686625

  • 6686625 - RING
  • guide

49 6686329

  • 6686329 - RING
  • RETAINER
  • retaining

50 6686621

  • 6686621 - RING
  • pressure

51 6686605

  • 6686605 - O-RING

52 6686604

  • 6686604 - O-RING

53 6686622

  • 6686622 - RINGS
  • PRESS

54 6686623

  • 6686623 - RINGS
  • PRESS

55 6686303

  • 6686303 - PIN
  • CYL
  • cylinder

56 6682919

  • 6682919 - PIN CYLINDER
