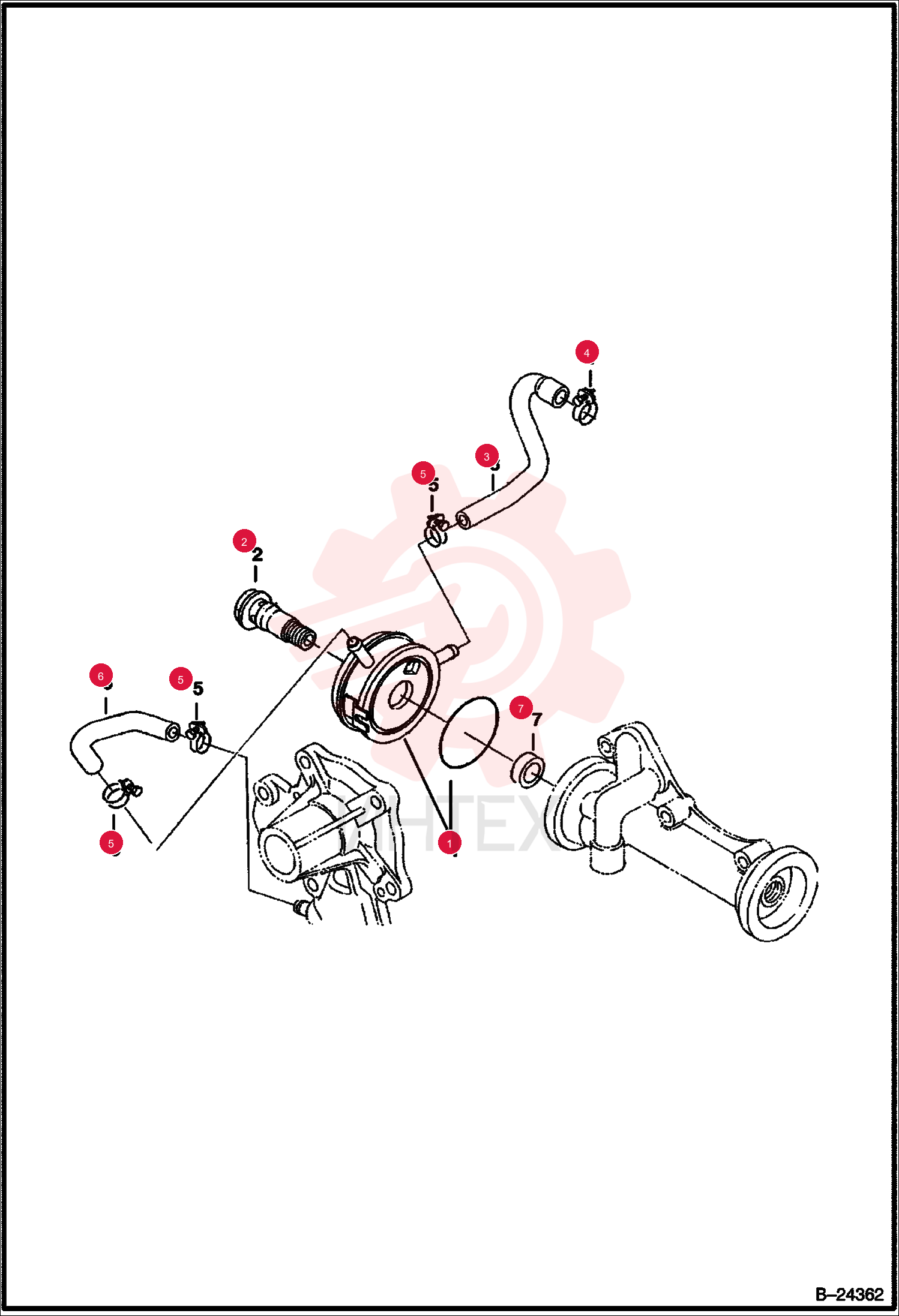

OIL COOLER ASSY 6684885 (3)

OIL COOLER ASSY 6684885 (3)

OIL COOLER ASSY 6684885 (3)

1 6684885

  • 6684885 - OIL COOLER ASSY

2 6684886

  • 6684886 - CONNECTOR

3 6684888

  • 6684888 - HOSE

4 6684889

  • 6684889 - CLAMP
  • hose

5 6680580

  • 6680580 - CLAMP
  • pipe

6 6684890

  • 6684890 - HOSE

7 6685637

  • 6685637 - COLLAR
