Bobcat
/
435.0
/

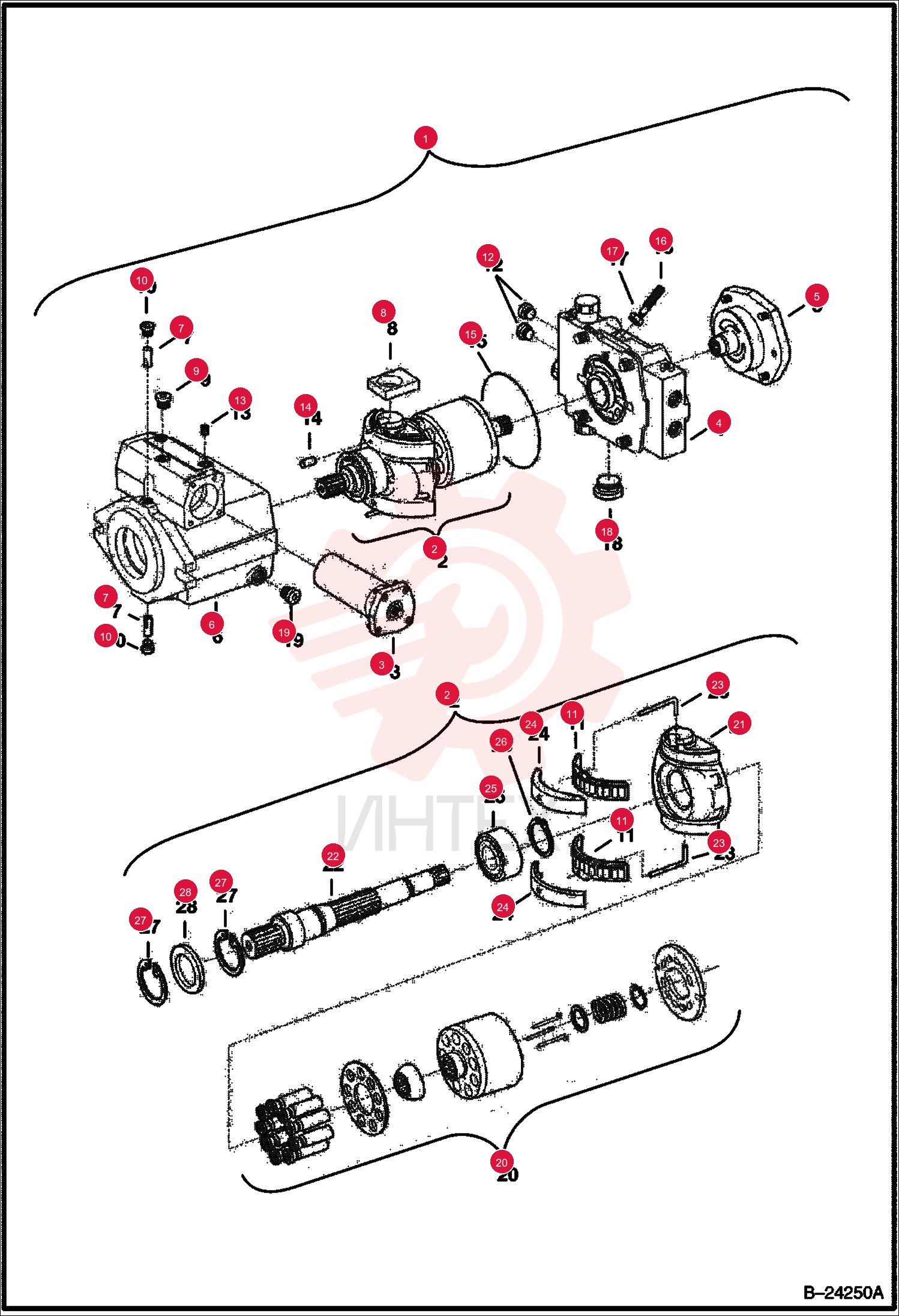

PUMP 6687768

PUMP 6687768

PUMP 6687768

1 6687768

  • 6687768 - PUMP
  • rear - Was 6685379

2 6685420

  • 6685420 - ASSY
  • BLOCK
  • assy

3 6685384

  • 6685384 - ADJUSTER

4 6685428

  • 6685428 - PLATE
  • - port - assy

5 6687770

  • 6687770 - PLATE
  • support - Was 6685421

6 6967414

  • 6967414 - PIN
  • Was 6671789

7 6685388

  • 6685388 - RING
  • side

8 6682776

  • 6682776 - PLUG

9 6682878

  • 6682878 - PLUG

10 6685396

  • 6685396 - BEARING ASSY
  • set

11 6698343

  • 6698343 - ORING

12 6682875

  • 6682875 - PLUG

13 6967419

  • 6967419 - ORIFICE
  • Was 6671745

14 6685389

  • 6685389 - PIN

15 6682949

  • 6682949 - O-RING

16 6682881

  • 6682881 - SCREW ECCENTRIC

17 6671746

  • 6671746 - NUT
  • LOCK
  • Was 6682882 - seal lock

18 6682877

  • 6682877 - PLUG

19 6685391

  • 6685391 - ASSY
  • PISTON
  • assy

20 6685392

  • 6685392 - CRADLE

21 6685422

  • 6685422 - SHAFT

22 6682887

  • 6682887 - WIRE

23 6685394

  • 6685394 - BEARING
  • CONE
  • bearing

24 6685395

  • 6685395 - BEARING

25 6685397

  • 6685397 - RING
  • RETAINER
  • retaining

26 6685398

  • 6685398 - RING
  • RETAINER
  • retaining

27 6685399

  • 6685399 - SEAL
