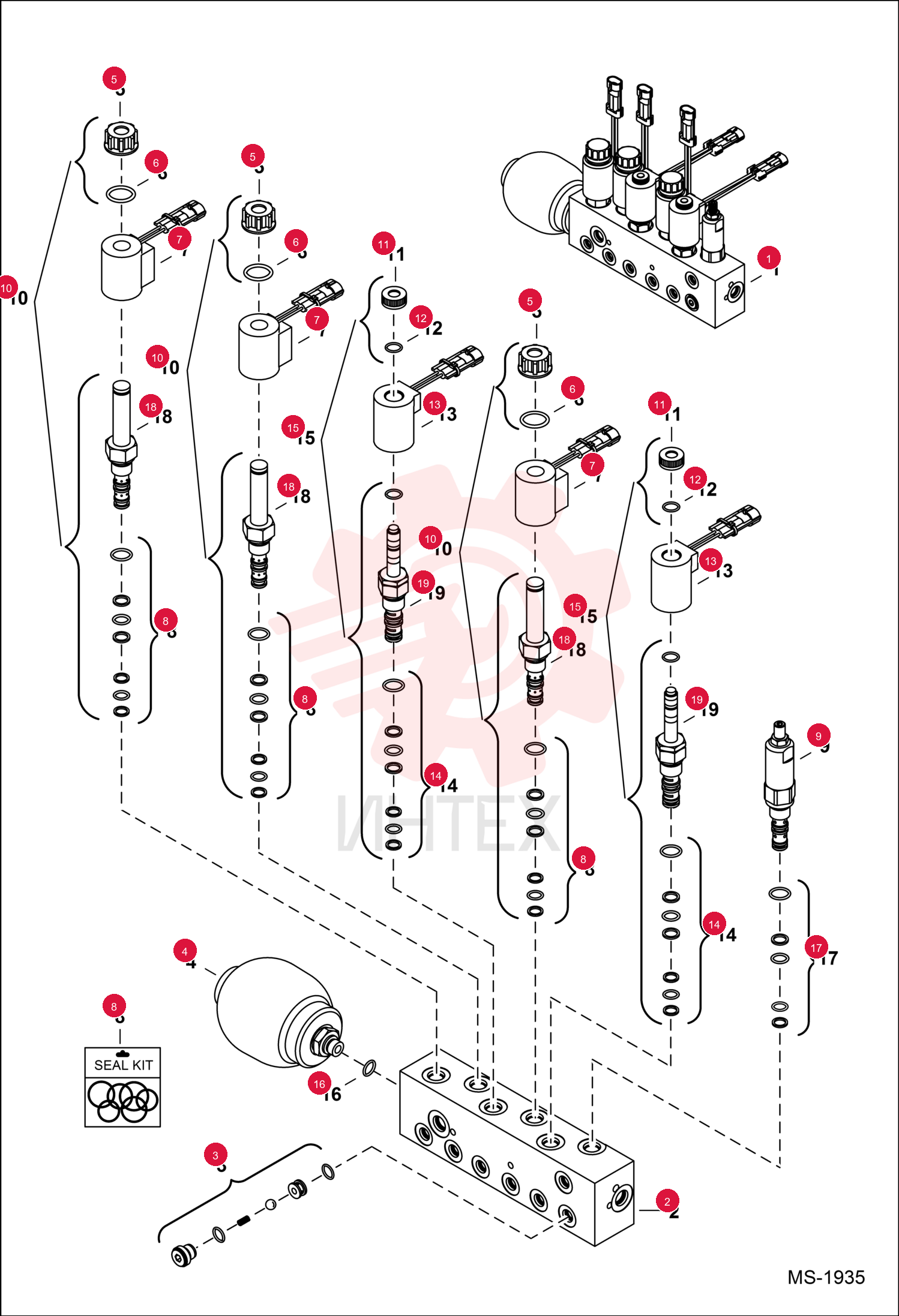

MANIFOLD 6685165 (1)

MANIFOLD 6685165 (1)

MANIFOLD 6685165 (1)

1 6685165

  • 6685165 - MANIFOLD
  • assy

2 6678990

  • 6678990 - VALVE
  • CHECK

3 6685832

  • 6685832 - ACCUMULATOR

4 6679075

  • 6679075 - NUT
  • Was 6685282

5 6679684

  • 6679684 - O-RING

6 6685283

  • 6685283 - COIL

7 6679078

  • 6679078 - KIT
  • SEAL

8 6685284

  • 6685284 - VALVE
  • pressure reducing

9 6679032

  • 6679032 - ASSY
  • VALVE
  • W/Ref. 5
  • 6
  • 8
  • & 18

10 6679076

  • 6679076 - NUT

11 6679509

  • 6679509 - O-RING
  • order Ref. 15

12 6678984

  • 6678984 - COIL

13 6679078

  • 6679078 - KIT
  • SEAL
  • seal seal - Was 6685285

14 6678988

  • 6678988 - ASSY
  • VALVE
  • W/Ref. 11
  • 12
  • 14
  • & 19

15 79K6

  • 79K6 - O RING 10
