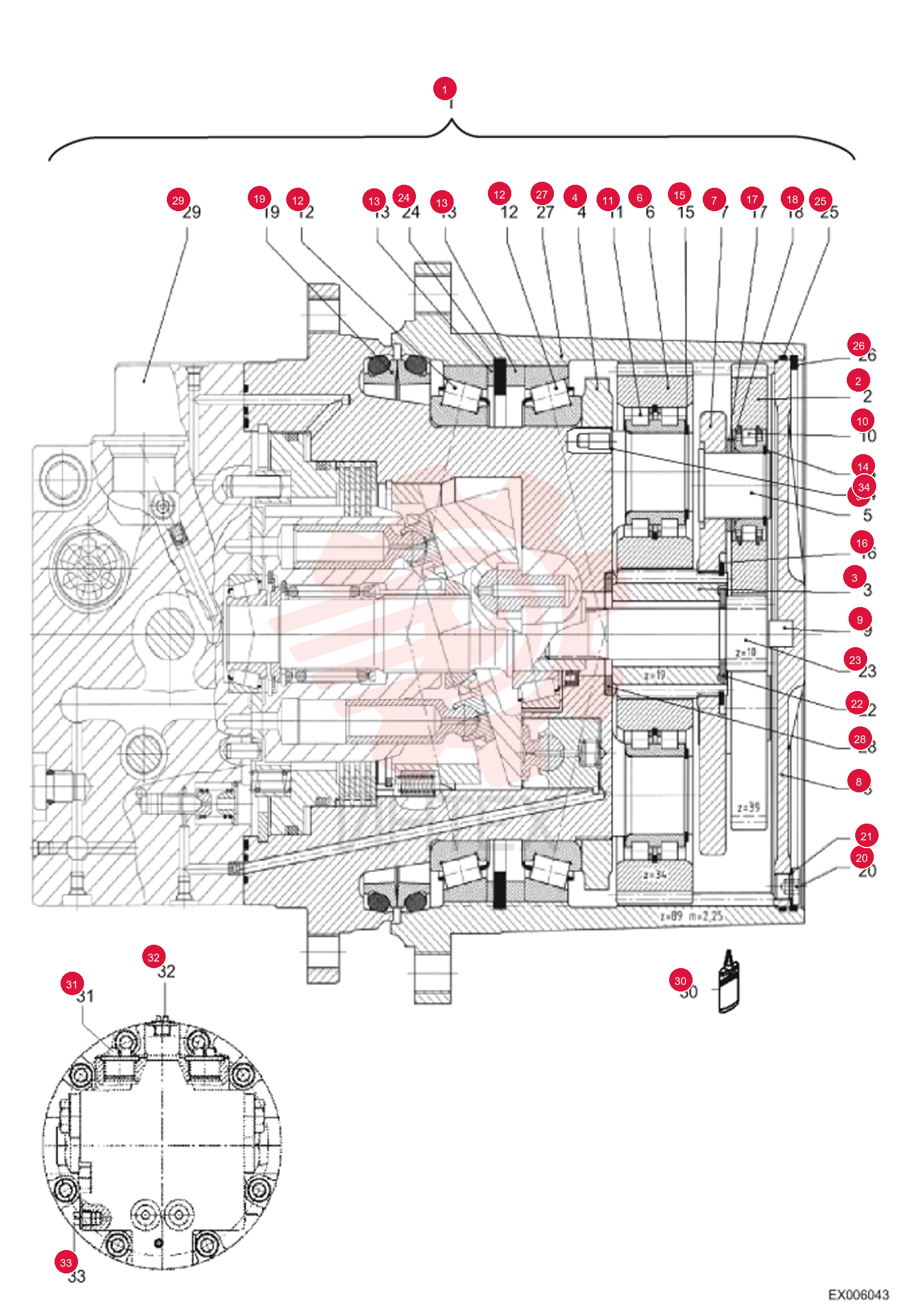

MOTOR, DRIVE HYD 5459660217 (14)

MOTOR, DRIVE HYD 5459660217 (14)

MOTOR, DRIVE HYD 5459660217 (14)

1 5459660217

  • 5459660217 - MOTOR
  • DRIVE HYD
  • travel - W/Ref. 2-34 - Was 5999991227

2 5459661101

  • 5459661101 - PLANETARY WHEEL

3 5459661102

  • 5459661102 - SUN WHEEL

4 5459661103

  • 5459661103 - SHAFT NUT

5 6686273

  • 6686273 - PIN
  • Was 5459661104

6 5459661100

  • 5459661100 - PLANETARY GEAR

7 5459661105

  • 5459661105 - PLANETARY NOSE

8 5459661106

  • 5459661106 - COVER

9 6686277

  • 6686277 - PLUG
  • BUTTON
  • Was 5459661107

10 5459661076

  • 5459661076 - BEARING

11 5459661095

  • 5459661095 - BEARING

12 5459661216

  • 5459661216 - TAPER ROLLER BEARING
  • Was 5459661081

13 5459661214

  • 5459661214 - INTERMEDIATE RING
  • Was 5459661114

14 1455622927

  • 1455622927 - CIRCLIP

15 1455622233

  • 1455622233 - CIRCLIP

16 1455622349

  • 1455622349 - CIRCLIP

17 1309412824

  • 1309412824 - SHIM

18 1309412119

  • 1309412119 - ADJ WASHER

19 5459661093

  • 5459661093 - SEAL FLOATING

20 1148201413

  • 1148201413 - PLUG

21 1636815229

  • 1636815229 - SEAL

22 5459661112

  • 5459661112 - MODULATED WASHER

23 5459661111

  • 5459661111 - SNAP RING

24 5459661096

  • 5459661096 - O-RING

25 5459661094

  • 5459661094 - SNAP RING

26 5459661213

  • 5459661213 - RING GEAR
  • Was 5459661109

27 5459661108

  • 5459661108 - DISK CASE

28 5459661215

  • 5459661215 - HYDRAULIC MOTOR
  • Was 5459660217

29 MCS001036A

  • MCS001036A - GLUE

30 5459661217

  • 5459661217 - BOLT M27X2

31 5459661218

  • 5459661218 - BOLT M14X1
  • 5

32 5459661219

  • 5459661219 - BOLT M12X1
  • 5

33 5459661220

  • 5459661220 - PIN
