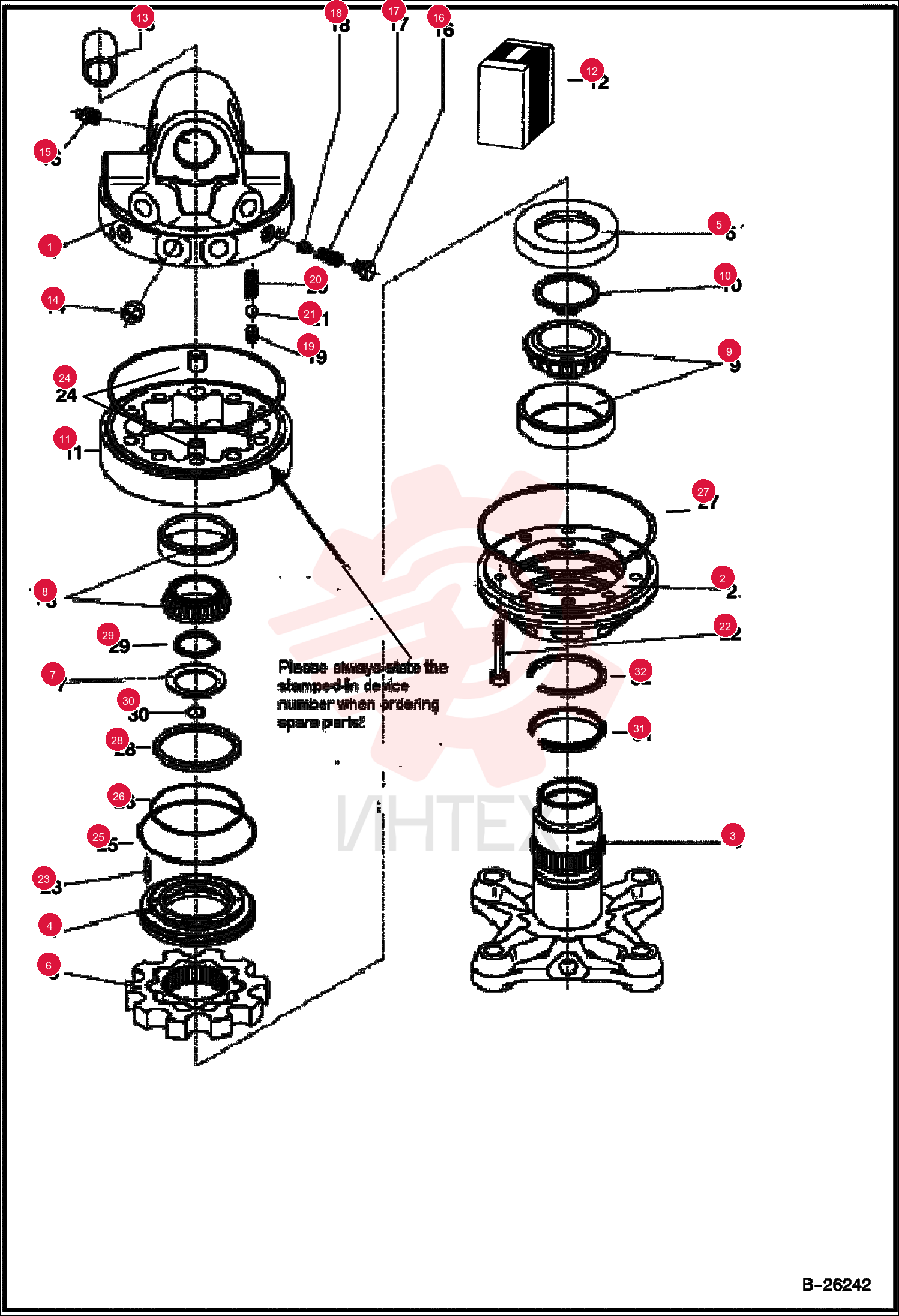

SWIVEL HEAD 5440000032 (1)

SWIVEL HEAD 5440000032 (1)

SWIVEL HEAD 5440000032 (1)

1 5440000032

  • 5440000032 - SWIVEL HEAD

2 5440000013

  • 5440000013 - BEARING CAP

3 5440000014

  • 5440000014 - SHAFT FLANGE

4 5440000015

  • 5440000015 - LOAD DISTR PLATE

5 5440000017

  • 5440000017 - DISC

6 5440000018

  • 5440000018 - ROTOR ASSEMBLY

7 5440000019

  • 5440000019 - DISC SPRING

8 5440000020

  • 5440000020 - BEARING

9 5440000021

  • 5440000021 - BEARING

10 5440000022

  • 5440000022 - LOCKING RING

11 5440000033

  • 5440000033 - ROTATOR HOUSING

12 5440000023

  • 5440000023 - SEAL KIT
  • W/Ref. 25-32

13 5440000004

  • 5440000004 - BUSHING

14 5440000005

  • 5440000005 - PLUG

15 5440000006

  • 5440000006 - GREASE ZERK

16 5440000007

  • 5440000007 - SCREW PLUG

17 5440000008

  • 5440000008 - SPRING

18 5440000009

  • 5440000009 - VALVE PLUNGER

19 5440000010

  • 5440000010 - PLUG

20 5440000011

  • 5440000011 - SPRING

21 5440000012

  • 5440000012 - BALL

22 1045707025

  • 1045707025 - CAP SCREW

23 5440000016

  • 5440000016 - PIN

24 5440000035

  • 5440000035 - SLEEVE
