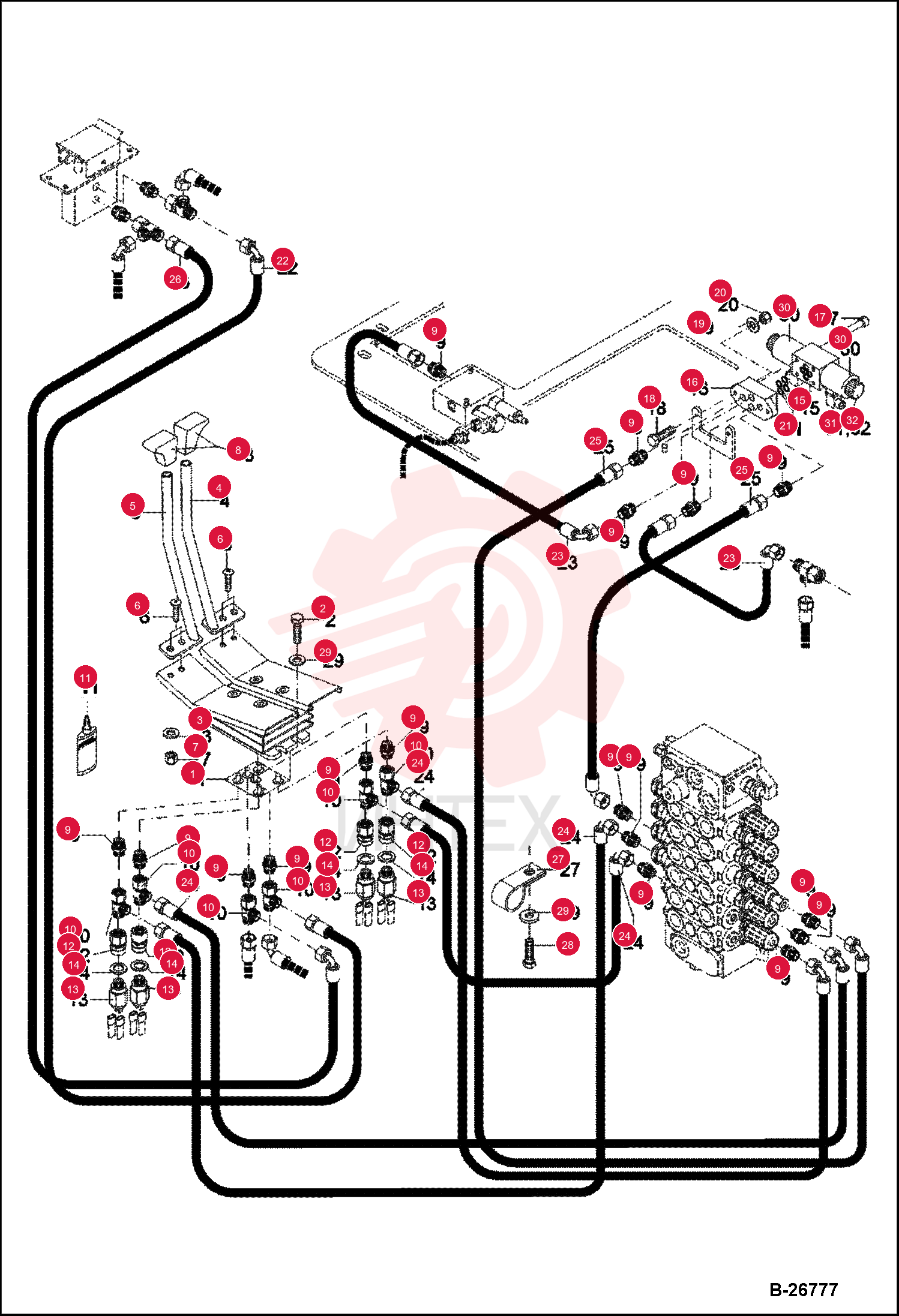

PEDAL 5606658896 (1)

PEDAL 5606658896 (1)

PEDAL 5606658896 (1)

1 5606658896

  • 5606658896 - PEDAL

2 1008707318

  • 1008707318 - BOLT

3 1290707018

  • 1290707018 - WASHER

4 6190008060

  • 6190008060 - PEDAL

5 6190008062

  • 6190008062 - PEDAL

6 1069020018

  • 1069020018 - BOLT

7 1212251011

  • 1212251011 - NUT

8 1576000512

  • 1576000512 - HANDLE

9 1915060255

  • 1915060255 - FITTING

10 1919060351

  • 1919060351 - FITTING

11 MCS001040A

  • MCS001040A - GLUE

12 1943000101

  • 1943000101 - CONNECTION

13 5050143175

  • 5050143175 - PRESSURE SWITCH

14 1636815155

  • 1636815155 - SEAL RING

15 5003700001

  • 5003700001 - DIRECT CONTR. VALVE
  • W/Ref. 30 - 32

16 5003700003

  • 5003700003 - CONNECTING PLATE

17 1045907011

  • 1045907011 - BOLT

18 1008707513

  • 1008707513 - BOLT

19 1290707014

  • 1290707014 - WASHER

20 1212251009

  • 1212251009 - NUT

21 5003700027

  • 5003700027 - SEAL KIT

22 4506040351

  • 4506040351 - HOSE

23 4506140371

  • 4506140371 - HOSE

24 4506270371

  • 4506270371 - HOSE

25 4506180351

  • 4506180351 - HOSE

26 4256033371

  • 4256033371 - HOSE
  • HYD
  • Was 4506033351

27 5000210462

  • 5000210462 - HOSE CLIP

28 1008707817

  • 1008707817 - BOLT

29 1343707057

  • 1343707057 - WASHER

30 5003700025

  • 5003700025 - COIL

31 5003700026

  • 5003700026 - NUT W/SEAL
  • W/Ref. 32

32 1970956810

  • 1970956810 - O-RING
