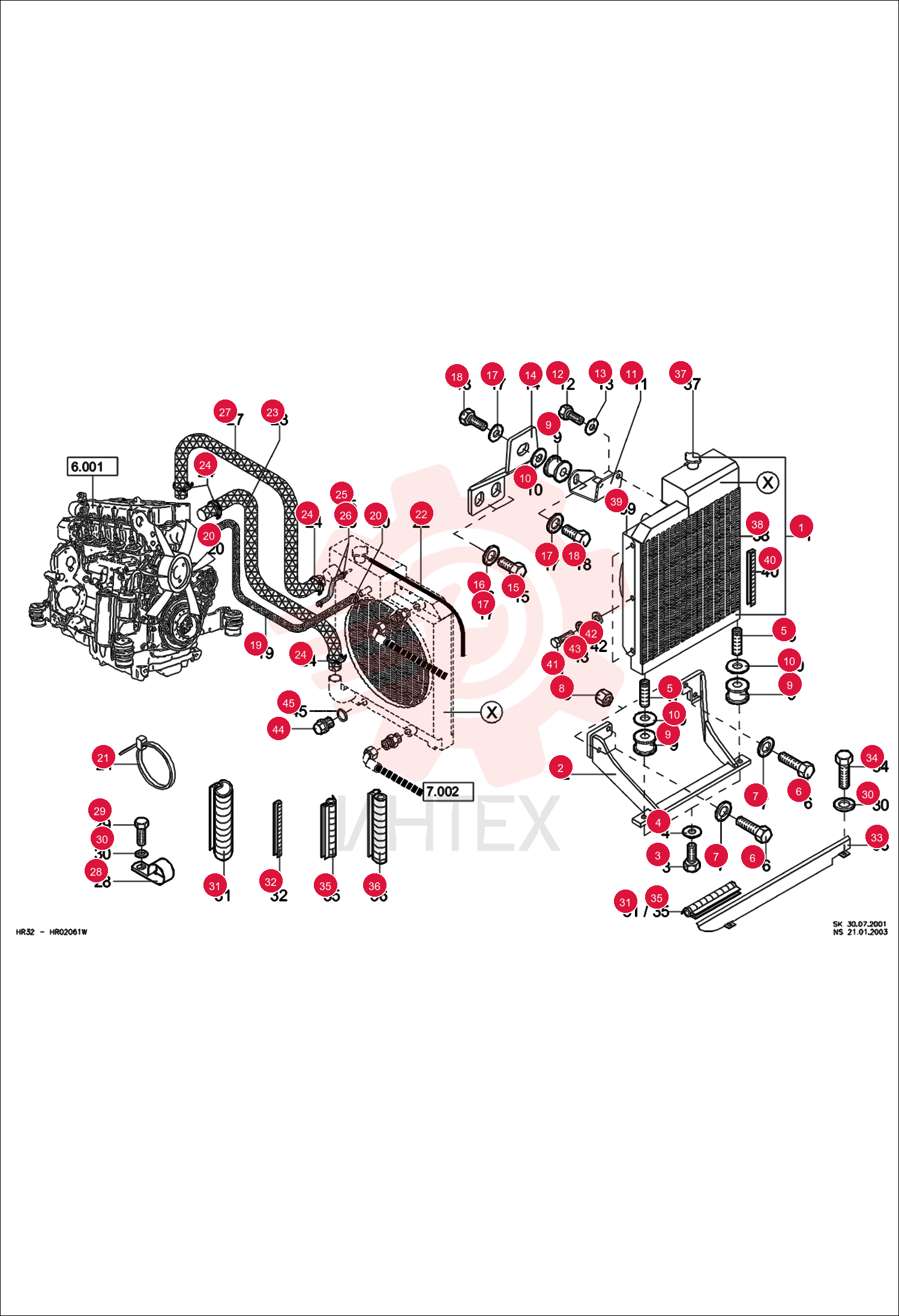

OIL WATER COOLER 5010660992

OIL WATER COOLER 5010660992

OIL WATER COOLER 5010660992

1 5010660992

  • 5010660992 - OIL WATER COOLER
  • W/Ref. 37-45

2 6190015010

  • 6190015010 - COOLER BRACKET

3 1008707923

  • 1008707923 - BOLT
  • Was 1008707923

4 1307707020

  • 1307707020 - WASHER

5 1133341623

  • 1133341623 - STUD

6 1008707630

  • 1008707630 - BOLT

7 1343707061

  • 1343707061 - WASHER

8 1212251014

  • 1212251014 - NUT

9 1299707020

  • 1299707020 - WASHER

10 0202515042

  • 0202515042 - PLATE
  • Was 6202515042

11 1008707817

  • 1008707817 - BOLT

12 1343707057

  • 1343707057 - WASHER

13 1008707124

  • 1008707124 - BOLT

14 1290707020

  • 1290707020 - WASHER

15 1343707059

  • 1343707059 - WASHER

16 1008707423

  • 1008707423 - BOLT

17 0190015050

  • 0190015050 - HOSE

18 5660199200

  • 5660199200 - HOSE CLIP

19 5350650280

  • 5350650280 - BINDER

20 0202515049

  • 0202515049 - HOSE ASSEMBLY CPL.

21 0190015051

  • 0190015051 - HOSE

22 5660095305

  • 5660095305 - HOSE CLIP

23 0202515044

  • 0202515044 - WATER HOSE

24 5603320320

  • 5603320320 - HOSE CLIP

25 0202515050

  • 0202515050 - ELBOW

26 5000210460

  • 5000210460 - HOSE CLIP

27 1008707318

  • 1008707318 - BOLT

28 1343707057

  • 1343707057 - WASHER

29 5354600010

  • 5354600010 - RUBBER PROFILE

30 6190015015

  • 6190015015 - COVER PLATE

31 1008707517

  • 1008707517 - BOLT

32 5354255965

  • 5354255965 - SEALING SECTION

33 5354660507

  • 5354660507 - SEALING SECTION

34 5010657415

  • 5010657415 - CAP

35 5010663035

  • 5010663035 - COOLER

36 5010663036

  • 5010663036 - VENTILATOR COVER

37 5010663037

  • 5010663037 - SEAL

38 1008707018

  • 1008707018 - BOLT

39 1307707018

  • 1307707018 - WASHER

40 1321707018

  • 1321707018 - SPRING WASHER

41 1150201615

  • 1150201615 - PLUG

42 1636700432

  • 1636700432 - SEAL RING
