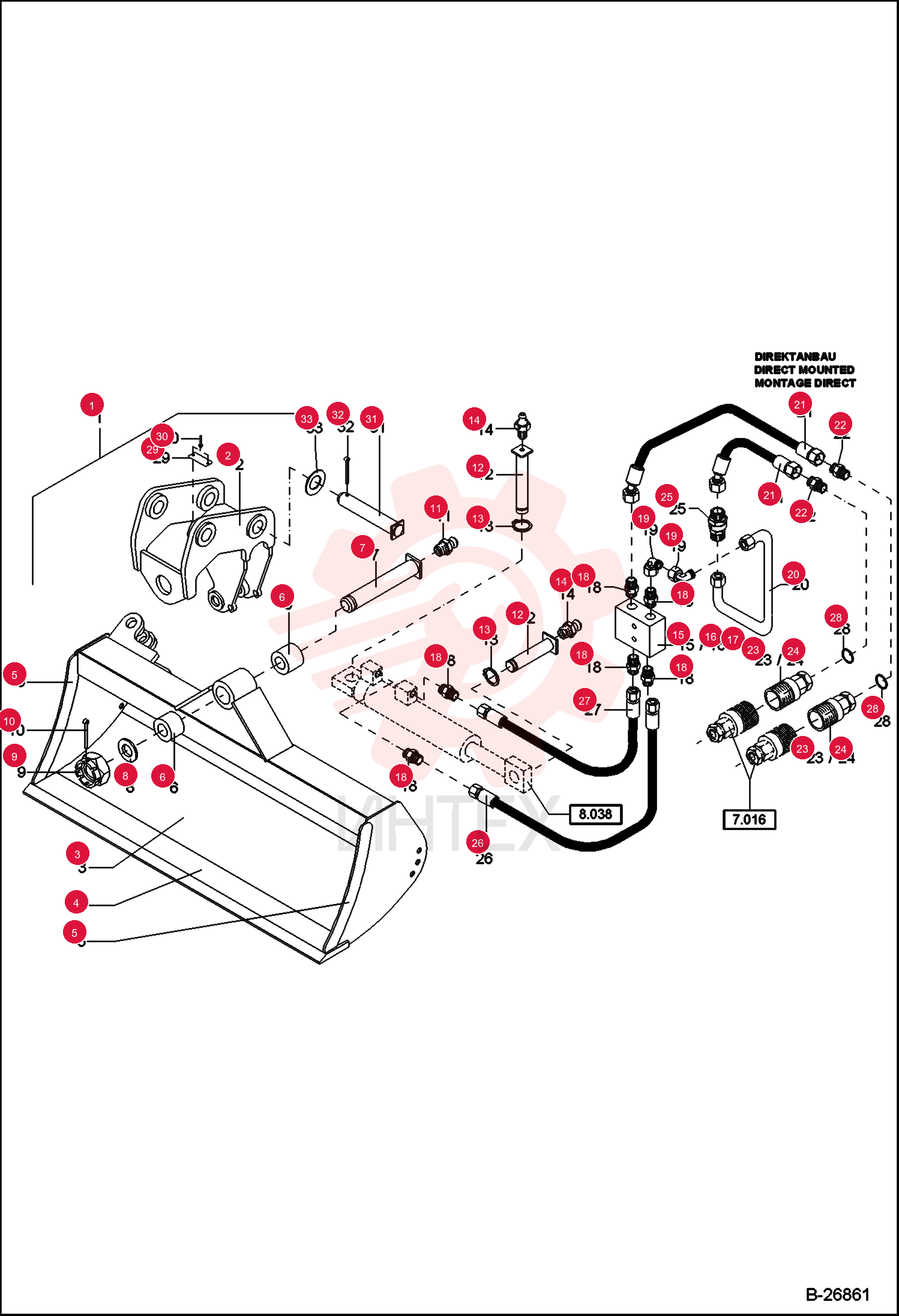

PIVOT MOUNT 5018001037 (3)

PIVOT MOUNT 5018001037 (3)

PIVOT MOUNT 5018001037 (3)

1 5018001037

  • 5018001037 - PIVOT MOUNT

2 5018001039

  • 5018001039 - CUTTING EDGE

3 5018001028

  • 5018001028 - CUTTING EDGE

4 5018001005

  • 5018001005 - CLAMPING BUSH

5 5018001006

  • 5018001006 - PIN

6 1290707076

  • 1290707076 - SHIM

7 1218251840

  • 1218251840 - CASTLE NUT

8 1395707838

  • 1395707838 - COTTER PIN

9 1607003010

  • 1607003010 - GREASE NIPPLE

10 5018001007

  • 5018001007 - PIN

11 5018001008

  • 5018001008 - CIRCLIP

12 1607003008

  • 1607003008 - GREASE NIPPLE

13 5018001040

  • 5018001040 - VALVE

14 5018001015

  • 5018001015 - BOLT

15 1307707014

  • 1307707014 - WASHER

16 5018001017

  • 5018001017 - FITTING

17 5018001018

  • 5018001018 - FITTING

18 5018001041

  • 5018001041 - TUBELINE

19 5018001020

  • 5018001020 - HYDR. HOSE

20 5018001021

  • 5018001021 - FITTING

21 5260301140

  • 5260301140 - COUPLING SOCKET

22 5260301147

  • 5260301147 - COVER NUT

23 5018001024

  • 5018001024 - FITTING

24 5018001025

  • 5018001025 - HYDR. HOSE

25 5018001026

  • 5018001026 - HYDR. HOSE

26 1970956719

  • 1970956719 - O-RING

27 1395707642

  • 1395707642 - COTTER PIN

28 1309412430

  • 1309412430 - WASHER

29 0211005045

  • 0211005045 - PIN
