Главная
/
Бренды
/
Bobcat
/
442
/

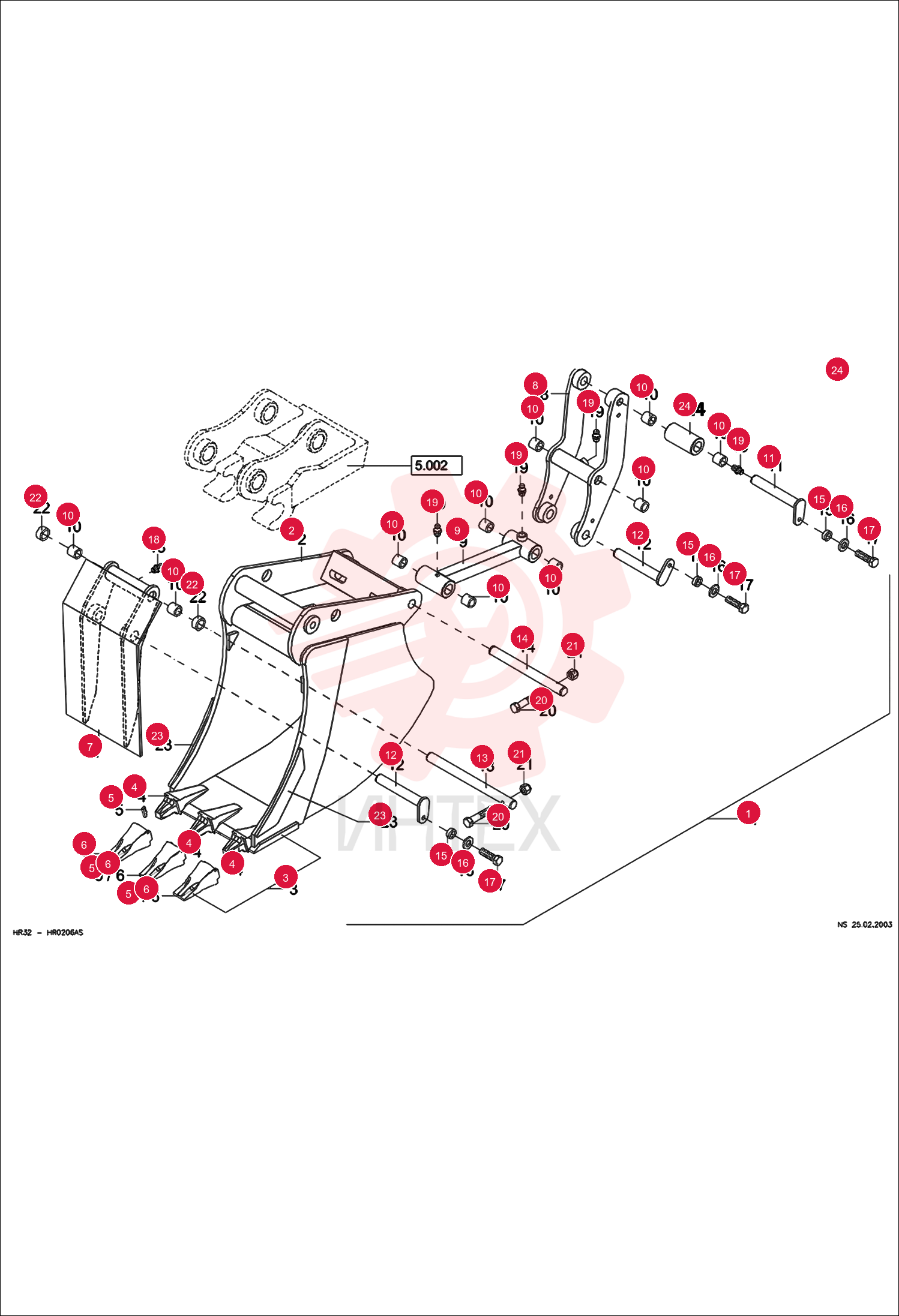

CUTTING EDGE 5018001075 (1)

CUTTING EDGE 5018001075 (1)

CUTTING EDGE 5018001075 (1)

1 5018001075

  • 5018001075 - CUTTING EDGE
  • 400 MM

2 5455660446

  • 5455660446 - BRACKET

3 5455660447

  • 5455660447 - LOCK

4 5455660445

  • 5455660445 - TOOTH
  • BUCKET

5 5018001079

  • 5018001079 - EJECTOR
  • 400 MM

6 5018001080

  • 5018001080 - BUCKET LINK

7 5018001081

  • 5018001081 - ROD

8 5018001082

  • 5018001082 - BUSHING

9 5018001083

  • 5018001083 - PIN

10 5018001083

  • 5018001083 - PIN

11 5018001084

  • 5018001084 - PIN

12 5018001085

  • 5018001085 - PIN

13 5018001086

  • 5018001086 - BUSHING

14 1290707020

  • 1290707020 - WASHER

15 1008707923

  • 1008707923 - BOLT
  • Was 1008707923

16 1609010008

  • 1609010008 - GREASE ZERK

17 1607010008

  • 1607010008 - GREASE ZERK

18 1007707919

  • 1007707919 - BOLT

19 1212251011

  • 1212251011 - NUT

20 5018001090

  • 5018001090 - BUSHING

21 5018001089

  • 5018001089 - CUTTING EDGE

22 5018001088

  • 5018001088 - BUSHING
