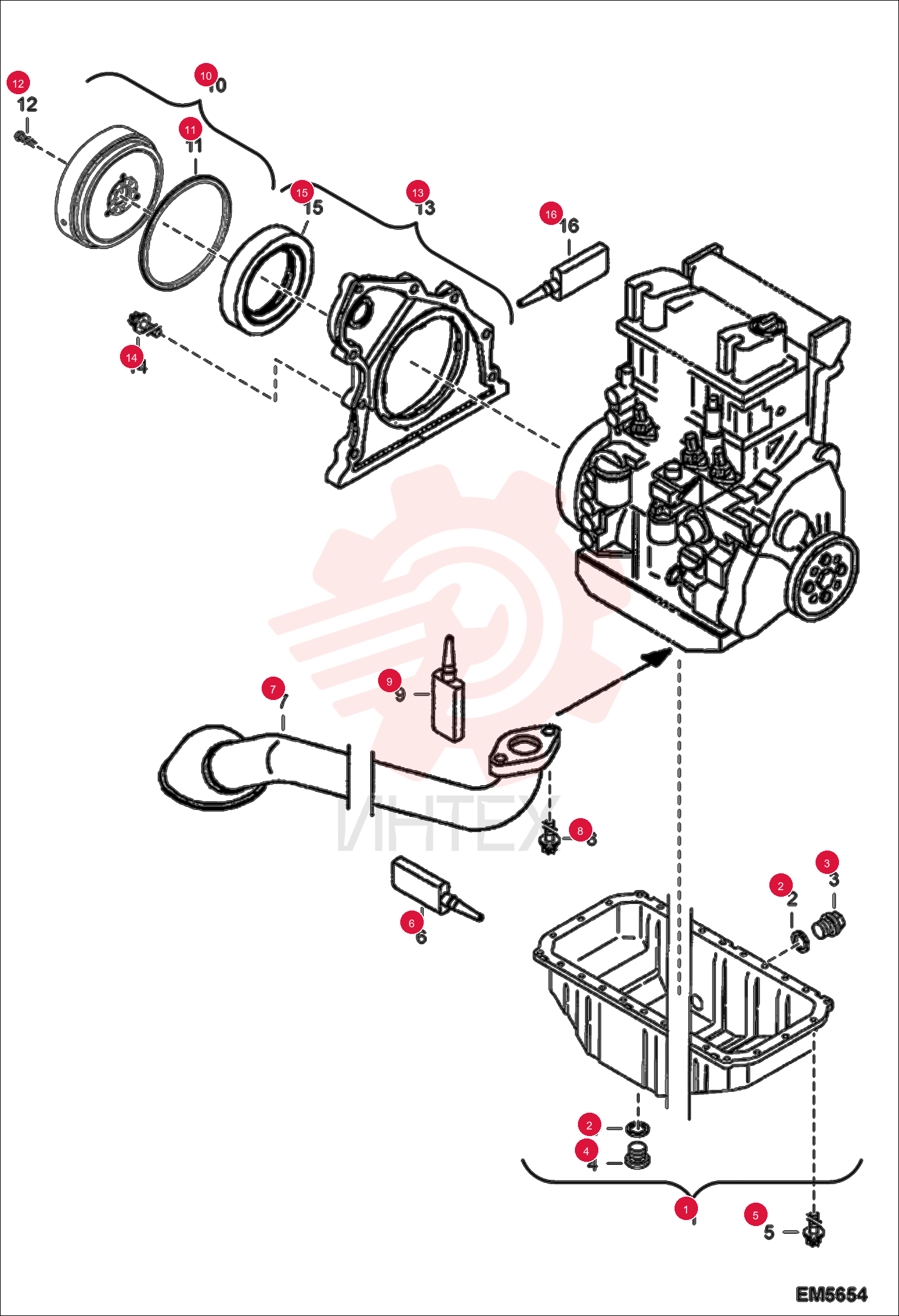

OIL PAN 5411657085

OIL PAN 5411657085

OIL PAN 5411657085

1 5411657085

  • 5411657085 - OIL PAN
  • W/Ref. 2-4

2 6666394

  • 6666394 - WASHER
  • Was 7013354

3 6672888

  • 6672888 - PLUG
  • Was 7013365

4 7013387

  • 7013387 - PLUG SCREW

5 5411664027

  • 5411664027 - BOLT

6 5411657382

  • 5411657382 - PACKING COMPOUND

7 6666508

  • 6666508 - TUBE
  • Was 7013488

8 6668938

  • 6668938 - BOLT
  • Was 7013408

9 7028292

  • 7028292 - LOCK
  • THREAD
  • Was 7013331

10 5411657086

  • 5411657086 - FLYWHEEL
  • W/Ref. 11

11 5411657087

  • 5411657087 - GEAR

12 7015335

  • 7015335 - BOLT

13 7015332

  • 7015332 - COVER
  • W/Ref. 15

14 7015323

  • 7015323 - BOLT

15 7015334

  • 7015334 - SEAL

16 5411664001

  • 5411664001 - PACKING COMPOUND
