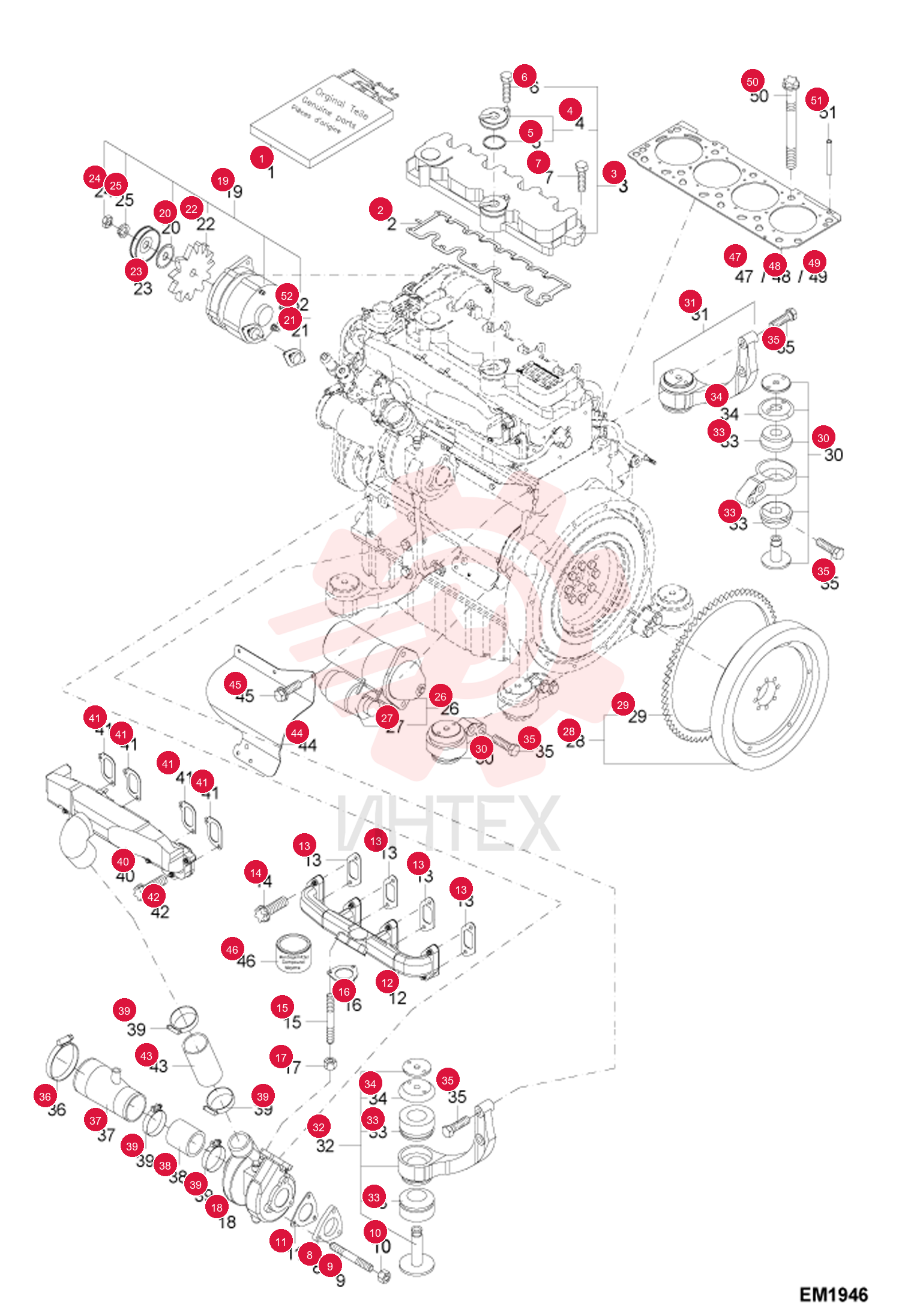

KIT, GASKET 5411663644 (1)

KIT, GASKET 5411663644 (1)

KIT, GASKET 5411663644 (1)

1 5411663644

  • 5411663644 - KIT
  • GASKET
  • engine

2 5411658001

  • 5411658001 - GASKET
  • Was 5411657056

3 5411663891

  • 5411663891 - COVER
  • HEAD CYL ENG
  • W/Ref. 4-6

4 5411657057

  • 5411657057 - BREATHER VALVE
  • W/Ref. 5

5 5411663892

  • 5411663892 - O-RING

6 5411663807

  • 5411663807 - BOLT

7 5411657060

  • 5411657060 - BOLT

8 5411663808

  • 5411663808 - FLANGE
  • INTAKE

9 5411656901

  • 5411656901 - STUD

10 5411657804

  • 5411657804 - NUT

11 5411656449

  • 5411656449 - SEAL

12 5411663809

  • 5411663809 - MANIFOLD
  • EXHAUST

13 5411656293

  • 5411656293 - SEAL

14 5411663893

  • 5411663893 - BOLT

15 5411663811

  • 5411663811 - STUD

16 5411656451

  • 5411656451 - SEAL

17 5411656427

  • 5411656427 - NUT

18 5411657984

  • 5411657984 - TURBOCHARGER

19 5411663461

  • 5411663461 - GENERATOR
  • W/Ref. 20-22
  • 24-25 & 52

20 5411663641

  • 5411663641 - RING
  • SUPPORT

21 5411663640

  • 5411663640 - RELAY
  • VOLTAGE

22 5411663638

  • 5411663638 - FAN
  • ALT

23 5411663639

  • 5411663639 - PULLEY
  • ENG

24 5411656994

  • 5411656994 - NUT

25 5411656995

  • 5411656995 - SPRING WASHER

26 7015337

  • 7015337 - STARTER
  • W/Ref. 27 - Was 5411664007

27 7015333

  • 7015333 - RELAY
  • Was 5411657136

28 5411657086

  • 5411657086 - FLYWHEEL
  • W/Ref. 29

29 5411657087

  • 5411657087 - GEAR

30 5411663653

  • 5411663653 - MOUNT
  • ENG
  • W/Ref. 33-34

31 5411657095

  • 5411657095 - MOUNTING FOOT
  • W/Ref. 33-34

32 5411657094

  • 5411657094 - OUTRIGGER
  • W/Ref. 33-34

33 5411663451

  • 5411663451 - MOUNT
  • RUBBER

34 5411663452

  • 5411663452 - COVER
  • MOUNT ENG

35 5411656919

  • 5411656919 - BOLT

36 5411656897

  • 5411656897 - HOSE CLIP

37 5411664420

  • 5411664420 - INLET PIPE

38 5411664415

  • 5411664415 - RUBBER SLEEVE

39 5411663813

  • 5411663813 - CLIP
  • HOSE

40 5411664418

  • 5411664418 - SUCTION PIPE

41 5411664419

  • 5411664419 - SEAL

42 5411663048

  • 5411663048 - BOLT

43 5411663323

  • 5411663323 - RUBBER SLEEVE

44 5411657963

  • 5411657963 - COOLING AIR BAFFLE

45 5411664286

  • 5411664286 - BOLT

46 5411664312

  • 5411664312 - FITTING COMPOUND

47 5411664052

  • 5411664052 - CYLINDER HEAD GASKET A1.47/B1.51
  • 0.058" x 0.060" (1.47 mm x 1.51 mm)

48 5411664053

  • 5411664053 - CYLINDER HEAD GASKET A1.57 B1.61
  • 0.062" x 0.064" (1.57 mm x 1.61 mm)

49 5411664054

  • 5411664054 - CYLINDER HEAD GASKET A1.67 / B1.71
  • 0.066" x 0.068" (1.67 mm x 1.71 mm)

50 5411664050

  • 5411664050 - BOLT

51 5411664051

  • 5411664051 - PIN ROLL

52 5411664287

  • 5411664287 - GASKET SET
  • voltage regulator
