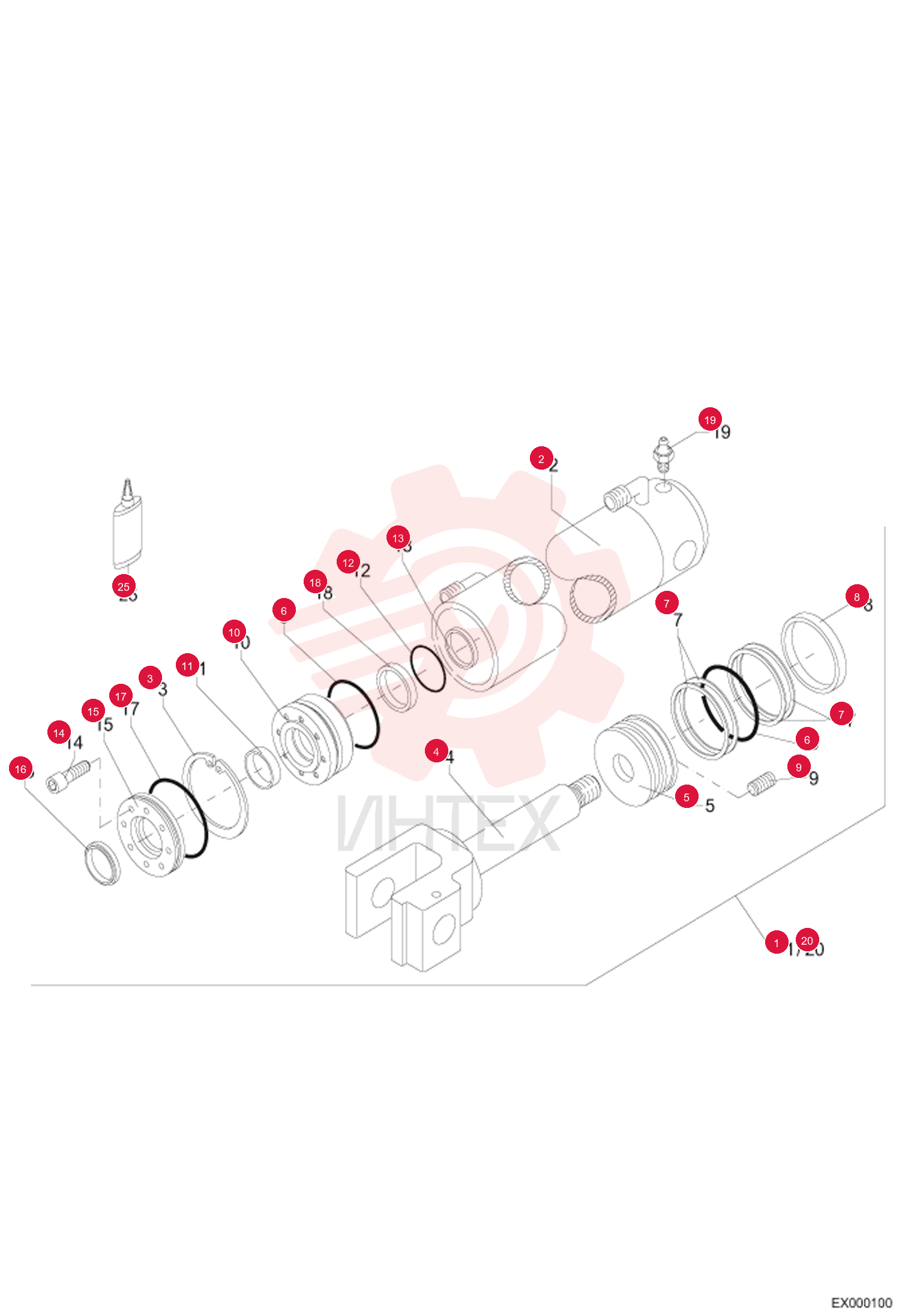

HYDRAULIC CYLINDER 6502045000 (1)
1 6502045000
- 6502045000 - HYDRAULIC CYLINDER
2 6502045003
- 6502045003 - PIPE
3 1456622670
- 1456622670 - CIRCLIP
4 6502045013
- 6502045013 - PISTON ROD CPL.
5 0502027015
- 0502027015 - PISTON
- Secure with SCHAEFFLOCK 2070
6 1971956591
- 1971956591 - O-RING
7 1966954404
- 1966954404 - BACK UP RING
8 5060592800
- 5060592800 - GUIDING RING
9 1136347417
- 1136347417 - STUD
10 0500704117
- 0500704117 - BUSHING
11 1965015400
- 1965015400 - ROD SEAL
12 1971956339
- 1971956339 - O-RING
13 5060592830
- 5060592830 - GUIDING RING
14 1045707513
- 1045707513 - BOLT
15 0500701019
- 0500701019 - COUNTER FLANGE
16 1974930108
- 1974930108 - SCRAPER RING
17 1971956243
- 1971956243 - O-RING
18 1965840309
- 1965840309 - ROD SEAL
19 1607003006
- 1607003006 - GREASE NIPPLE
20 1976999940
- 1976999940 - SEAL KIT
- Includes Ref. 6 + 7 + 8 + 11 + 12 + 13 + 16
