Bobcat
/
444
/

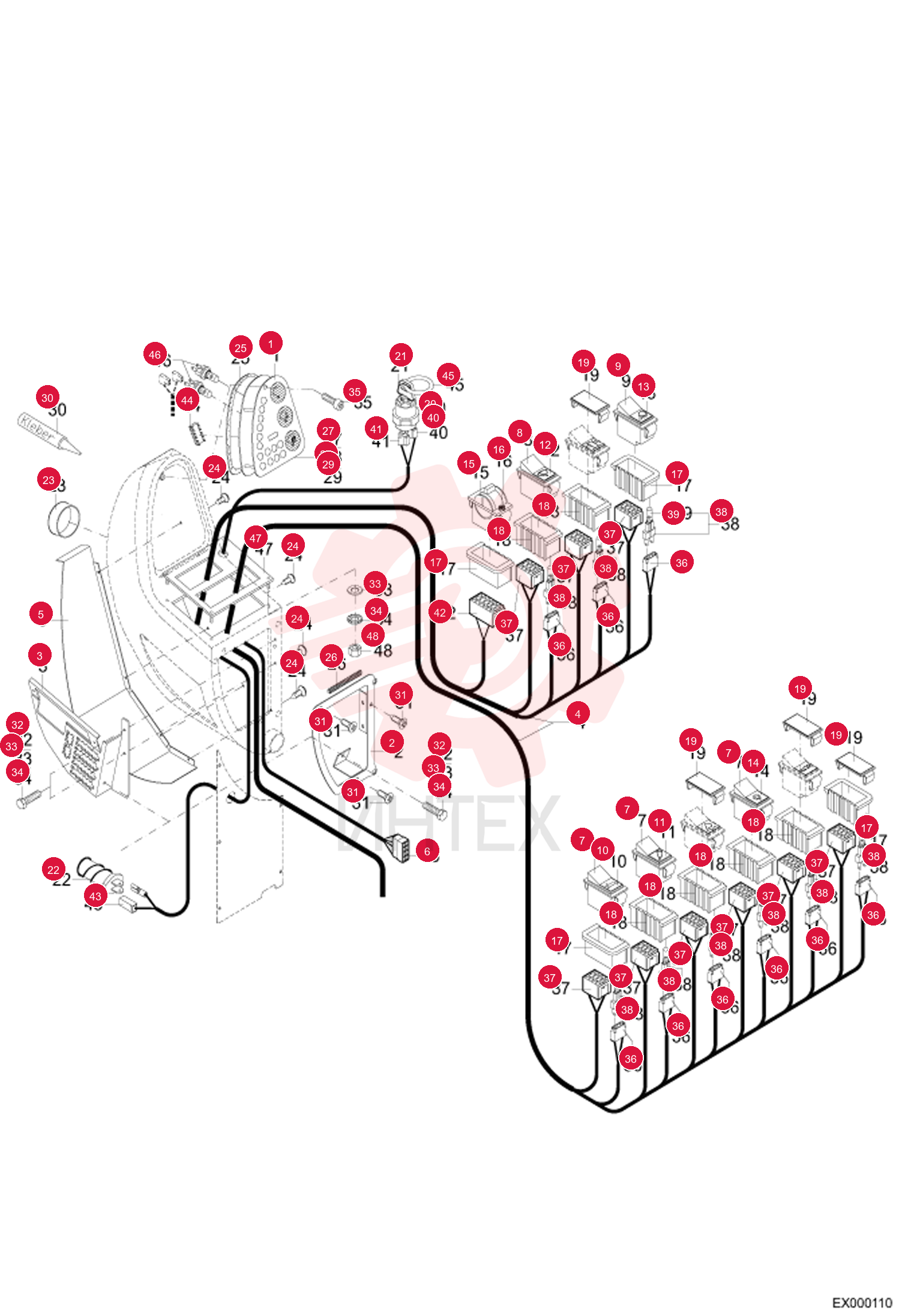

PANEL, DASH 7023525

PANEL, DASH 7023525

PANEL, DASH 7023525

1 7023525

  • 7023525 - PANEL
  • DASH
  • W/ O E-Prom - Was 5821661076

2 5821662101

  • 5821662101 - ADAPTER

3 5821662102

  • 5821662102 - BRACKET

4 5821662241

  • 5821662241 - CABLE
  • SET

5 5821662104

  • 5821662104 - AIR BAFFLE

6 5350249505

  • 5350249505 - HOUSING

7 5821662105

  • 5821662105 - SWITCH

8 5821662106

  • 5821662106 - SWITCH

9 5821662107

  • 5821662107 - SWITCH

10 5358650341

  • 5358650341 - SYMBOL DECAL
  • Was 5821662108

11 5821662109

  • 5821662109 - SYMBOL DECAL

12 5821662110

  • 5821662110 - SYMBOL DECAL

13 5821662111

  • 5821662111 - SYMBOL DECAL

14 5821662112

  • 5821662112 - SYMBOL DECAL

15 5821662113

  • 5821662113 - SWITCH

16 5821662114

  • 5821662114 - SYMBOL DECAL

17 5821662088

  • 5821662088 - CAP

18 5821662089

  • 5821662089 - SPACER

19 5821662115

  • 5821662115 - COVER

20 5821662116

  • 5821662116 - STARTER SWITCH
  • Includes Ref. 21

21 5050650256

  • 5050650256 - KEY
  • IGN

22 5050076420

  • 5050076420 - CIGARETTE LIGHTER

23 5821662130

  • 5821662130 - MOZZLE

24 5821662129

  • 5821662129 - SCREW

25 5821662131

  • 5821662131 - SEAL

26 5821662132

  • 5821662132 - SEAL

27 5821662133

  • 5821662133 - CROWN GEAR

28 5821662134

  • 5821662134 - WASHER

29 1210707006

  • 1210707006 - NUT
  • Was 5821662135

30 5821662137

  • 5821662137 - GLUE KIT

31 5821662123

  • 5821662123 - SCREW

32 5821662124

  • 5821662124 - SCREW

33 5821662127

  • 5821662127 - CROWN GEAR

34 5821662126

  • 5821662126 - WASHER

35 5821662128

  • 5821662128 - SCREW

36 5050650231

  • 5050650231 - HOUSING

37 5050650225

  • 5050650225 - HOUSING

38 5050650226

  • 5050650226 - LAMP
  • Includes Ref. 39

39 1813000021

  • 1813000021 - ROUND BULB

40 5050650261

  • 5050650261 - PLUG

41 5050650262

  • 5050650262 - PLUG

42 5050650287

  • 5050650287 - PLUG

43 5350249536

  • 5350249536 - HOUSING

44 1557909026

  • 1557909026 - RING

45 5755656003

  • 5755656003 - KIT BULB AND SOCKET
  • SATZ=2X
