Главная
/
Бренды
/
Bobcat
/
453
/

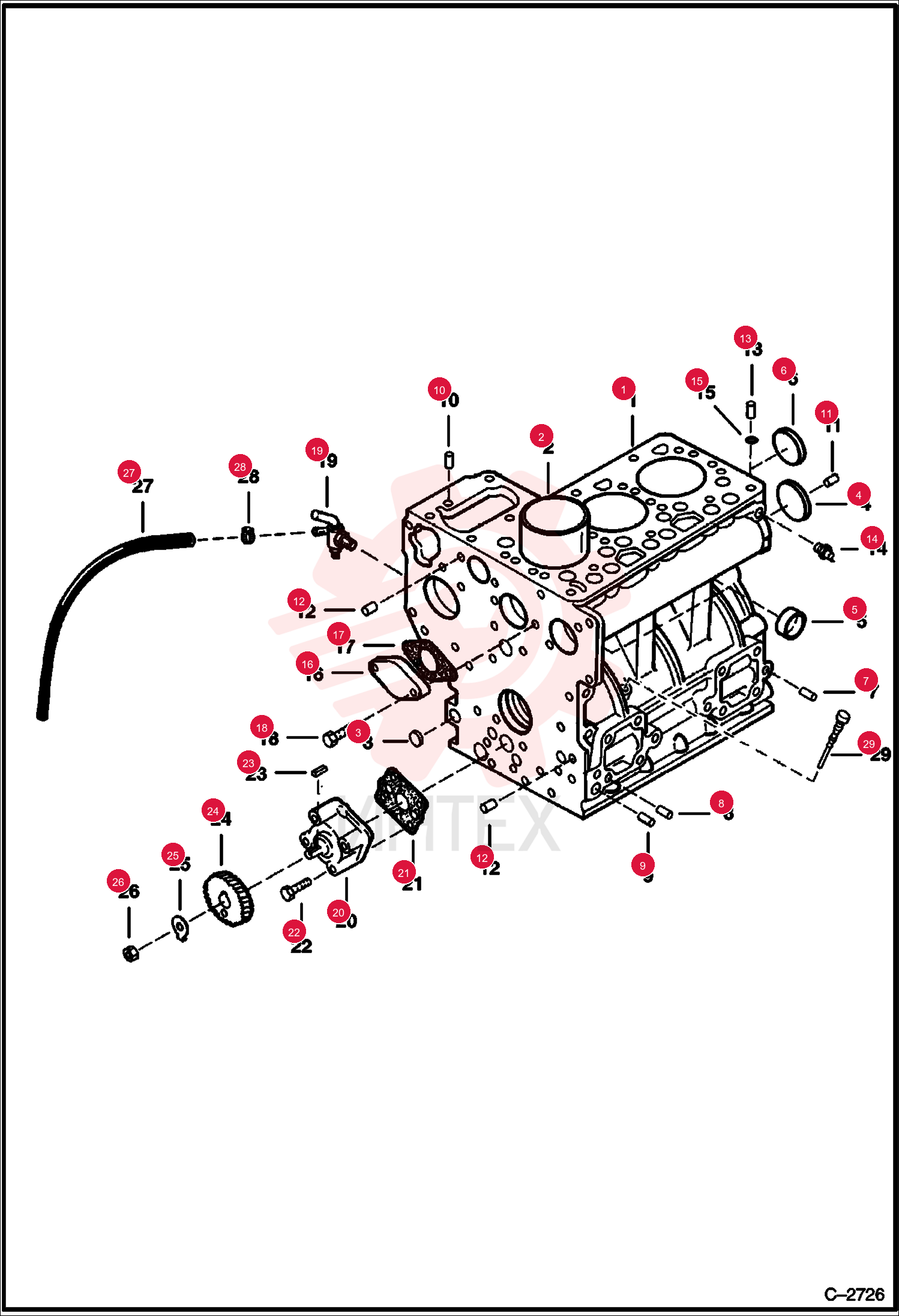

LINER 6599985 (1)

LINER 6599985 (1)

LINER 6599985 (1)

1 6599985

  • 6599985 - LINER

2 4FM18

  • 4FM18 - PLUG

3 4FM40

  • 4FM40 - PLUG

4 3974033

  • 3974033 - CAP

5 3974433

  • 3974433 - PLUG

6 6598116

  • 6598116 - PLUG

7 6652574

  • 6652574 - PLUG
  • Was 6598169

8 6652575

  • 6652575 - PLUG
  • Was 6598170

9 3974394

  • 3974394 - PIN

10 21JM814

  • 21JM814 - PIN
  • dowel

11 3974039

  • 3974039 - PIN

12 3974037

  • 3974037 - PIN

13 6969775

  • 6969775 - SWITCH
  • OIL PRESSURE
  • Was 6652576

14 3974038

  • 3974038 - O-RING

15 3974044

  • 3974044 - COVER

16 6666778

  • 6666778 - GASKET
  • Was 3974045B

17 4CM618

  • 4CM618 - BOLT

18 6672190

  • 6672190 - VALVE
  • DRAIN
  • Was 6630177

19 6598984

  • 6598984 - OIL PUMP

20 6666773

  • 6666773 - GASKET
  • Was 6599108

21 6599067

  • 6599067 - BOLT

22 6969805

  • 6969805 - KEY
  • FEATHER
  • Was 15JM00410B

23 6653580

  • 6653580 - GEAR

24 6599048

  • 6599048 - GEAR
  • Use W/Ref. 25

25 6652656

  • 6652656 - NUT
  • flanged

26 6599065

  • 6599065 - NUT
  • Use W/Ref. 25

27 6577822

  • 6577822 - HOSE BULK
  • sold per foot

28 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

29 6657048

  • 6657048 - PLUG
