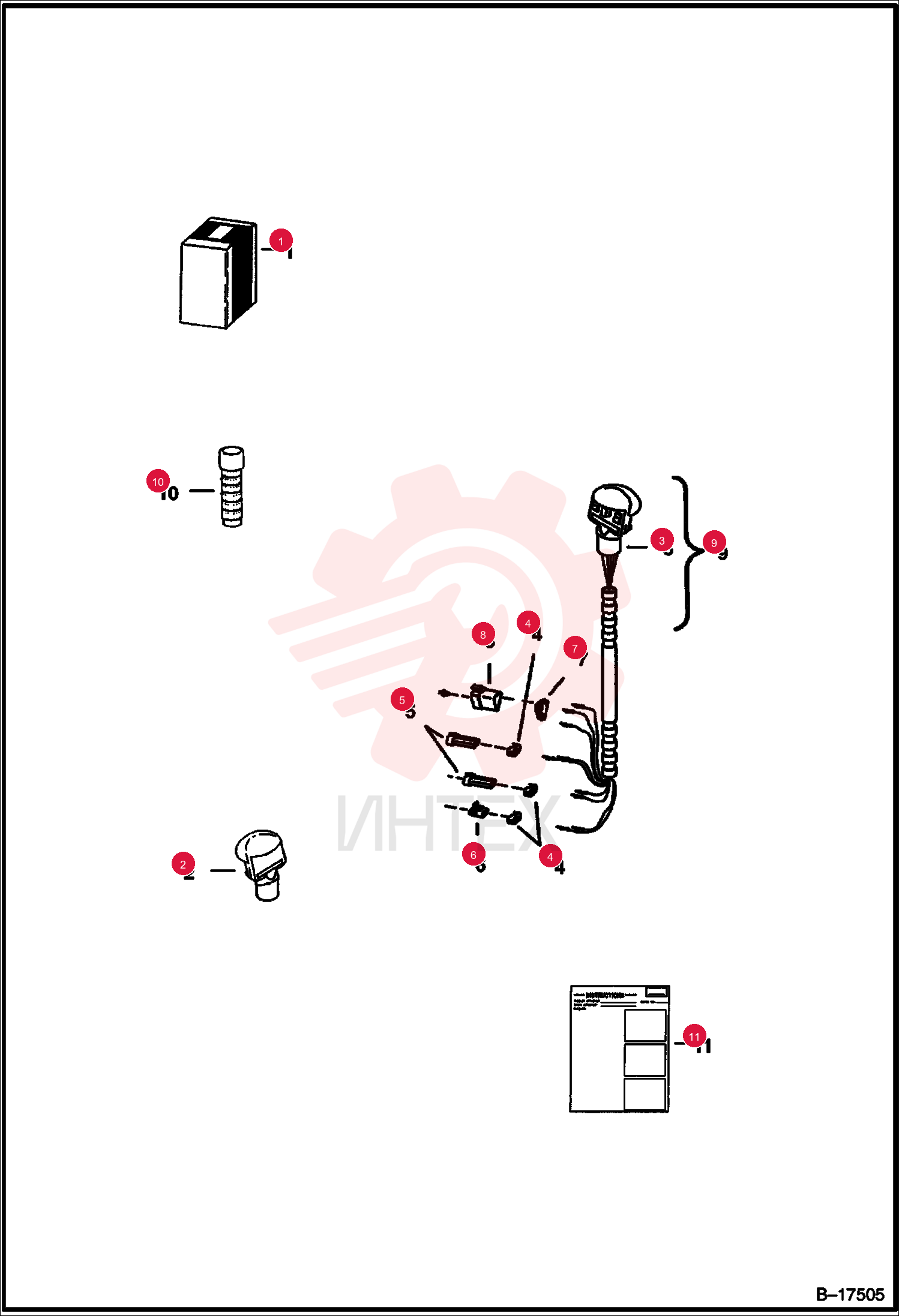

KIT, HANDLE 6706565

KIT, HANDLE 6706565

KIT, HANDLE 6706565

1 6706565

  • 6706565 - KIT
  • HANDLE
  • R.H. - blank handle - Ref. 2 & 11

2 6680415

  • 6680415 - HANDLE BLANK
  • R.H. - blank - Was 6705920

3 6662257

  • 6662257 - PIN

4 6680447

  • 6680447 - DECAL
  • Was 6677370

5 6641176

  • 6641176 - SEAL

6 6640691

  • 6640691 - TERMINAL

7 6680412

  • 6680412 - HANDLE DLX LEFT
  • L.H. - Also Order Ref. 4-8 - Was 6707976

8 6640690

  • 6640690 - PIN

9 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

10 6640700

  • 6640700 - LOCK METRI PACK
  • 3-pin

11 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

12 6640699

  • 6640699 - CONNECTOR METRI PACK
  • 3-pin

13 6641178

  • 6641178 - CONNECTOR METRI PACK
  • 2-pin

14 6664800

  • 6664800 - LOCK SECONDARY
  • 3-pin triangle - Was 6664186

15 6664599

  • 6664599 - CONNECTOR 3 PIN
  • 3-pin triangle - Was 6664184

16 6706568

  • 6706568 - KIT
  • HANDLE
  • handle - Ref. 3 - 5
  • 6 - 8 & 11

17 6702621

  • 6702621 - HANDLE GRIP

18 6722759

  • 6722759 - INSTRUCTIONS
