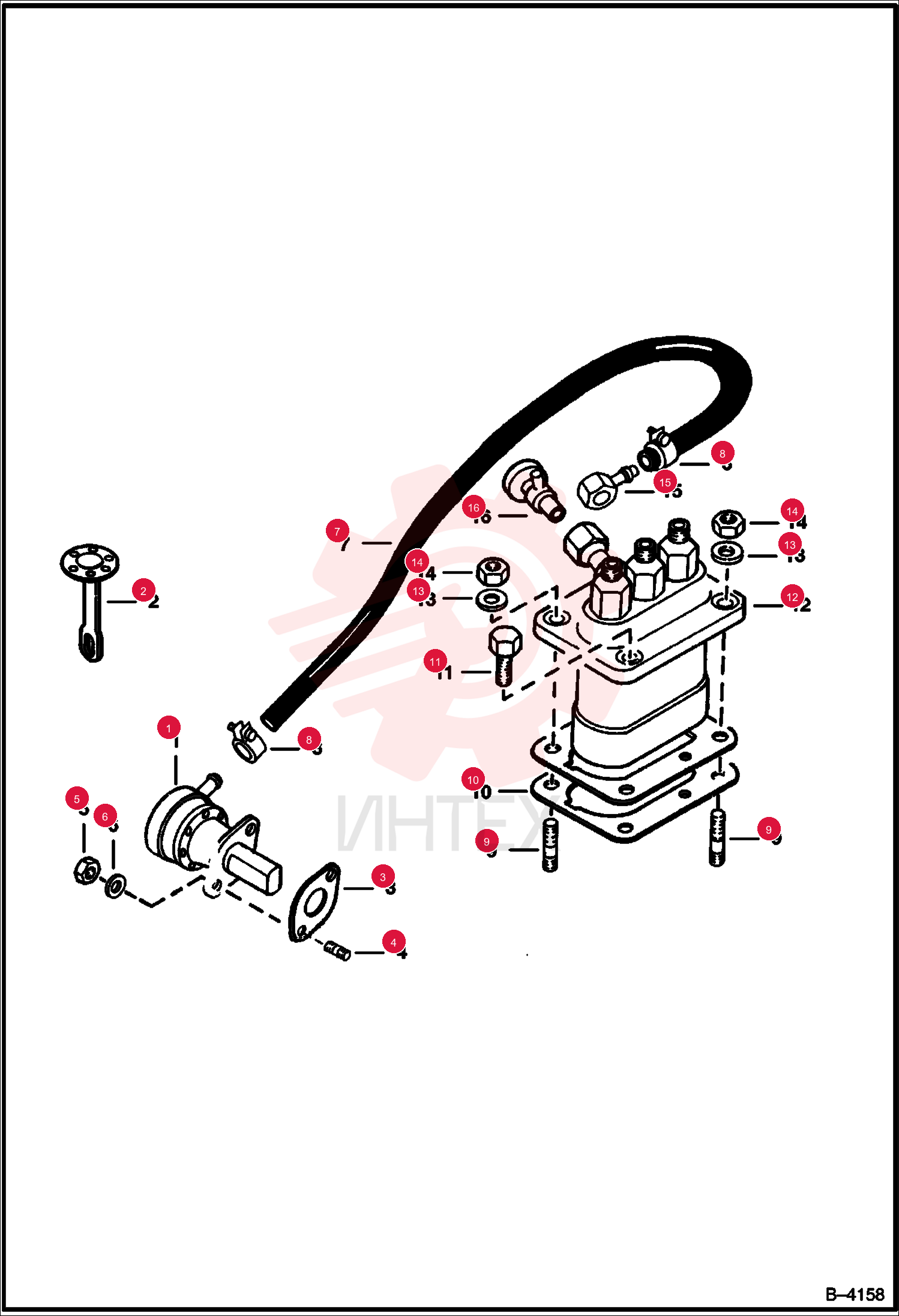

PUMP, FUEL 6666850

PUMP, FUEL 6666850

PUMP, FUEL 6666850

1 6666850

  • 6666850 - PUMP
  • FUEL
  • Was 6598121

2 6630183

  • 6630183 - DIAPHRAM
  • For Fuel Pump

3 3974502

  • 3974502 - GASKET

4 3974503

  • 3974503 - STUD

5 1DM6

  • 1DM6 - NUT

6 6EM60

  • 6EM60 - WASHER

7 7302472

  • 7302472 - HOSE
  • W/Ref. 7 - Was 6598694

8 6655874

  • 6655874 - CLIP
  • Was 3974499B

9 6652670

  • 6652670 - STUD 5
  • Was 3974916B

10 6652668

  • 6652668 - SHIM

11 1CM818

  • 1CM818 - BOLT
  • Was 4CM818

12 6599004

  • 6599004 - INJTRPUMP
  • INJECTION

13 6EM80

  • 6EM80 - WASHER
  • SPRING

14 1DM8

  • 1DM8 - NUT
  • Was 25DM00008B

15 6513707

  • 6513707 - FITTING
  • BANJO

16 6598102

  • 6598102 - VALVE
  • PUMP INJ
