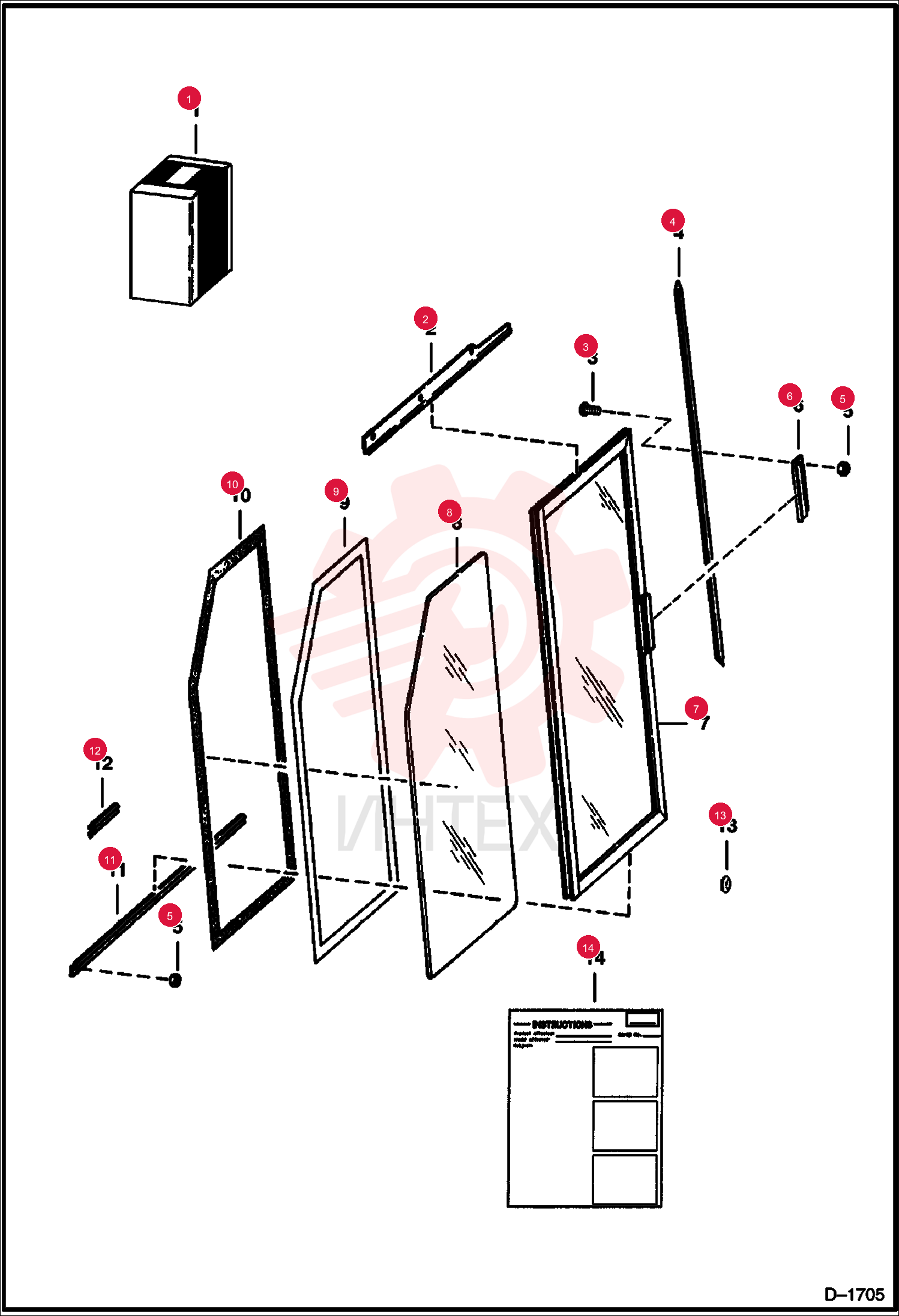

KIT, WINDOW SIDE 6706993

KIT, WINDOW SIDE 6706993

KIT, WINDOW SIDE 6706993

1 6706993

  • 6706993 - KIT
  • WINDOW SIDE
  • Ref. 2-14

2 6703160

  • 6703160 - TRACK WINDOW
  • LH - Was 6630920

3 6703159

  • 6703159 - TRACK WINDOW
  • RH - Was 6630921

4 25G410

  • 25G410 - SCREW SKT BTN HD CAP

5 6630918

  • 6630918 - BRACKET
  • L.H.

6 6630919

  • 6630919 - TRACK
  • R.H.

7 83D4

  • 83D4 - LKNUT HEX FLG GR8

8 6630924

  • 6630924 - BRACKET

9 6658143

  • 6658143 - WINDOW
  • LH - W/felt

10 6658142

  • 6658142 - WINDOW
  • RH - W/felt

11 6702731

  • 6702731 - WINDOW CAB

12 6631548

  • 6631548 - LOOP SCOTCHMATE
  • scotchmate

13 6631549

  • 6631549 - HOOK SCOTCHMATE
  • scotchmate

14 6661689

  • 6661689 - TRACK WINDOW
  • LH

15 6661690

  • 6661690 - TRACK WINDOW
  • RH

16 6555351

  • 6555351 - SEAL BULK/FT 15
  • bulk - sold per foot

17 6566957ENUS

  • 6566957ENUS - INSTRUCTIONS
  • Side Window - Was 6566957
