Bobcat
/
743.0
/

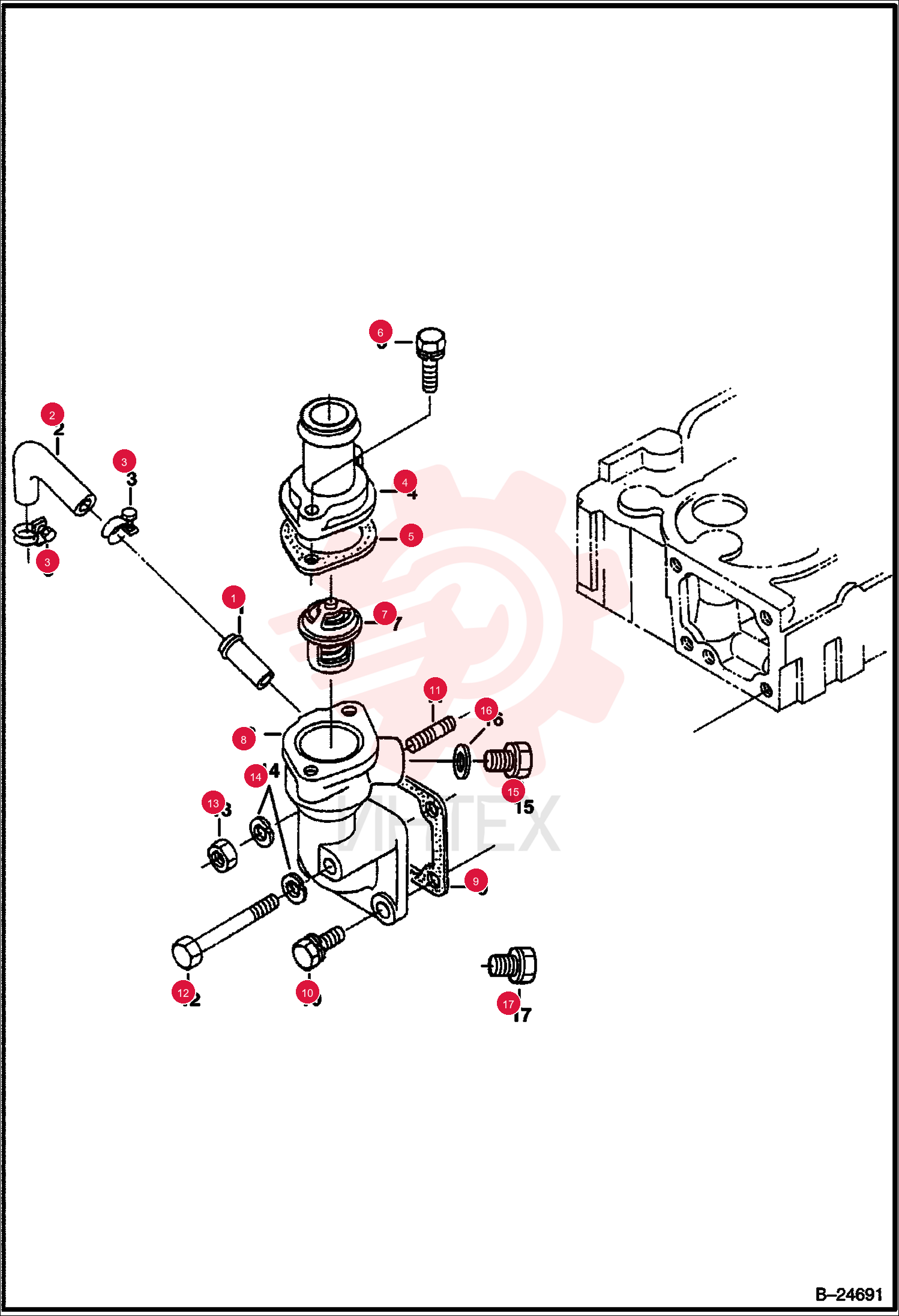

PIPE 6655880 (4)

PIPE 6655880 (4)

PIPE 6655880 (4)

1 6655880

  • 6655880 - PIPE
  • water return

2 6686988

  • 6686988 - PIPE
  • water return

3 3974679

  • 3974679 - BAND
  • pipe

4 6674173

  • 6674173 - COVER
  • thermostat

5 1CM835

  • 1CM835 - BOLT

6 6674172

  • 6674172 - THERMOSTAT
  • 159.8 degrees F (71 degeees C)

7 6630184

  • 6630184 - THERMOSTAT
  • 179.6 degrees F (82 degeees C) - Use W/cab heater

8 6666802

  • 6666802 - GASKET
  • water flange - Was 6684860

9 6657415

  • 6657415 - BOLT

10 6652670

  • 6652670 - STUD 5
  • Was 3974916B

11 1CM865

  • 1CM865 - SCREW

12 6652792

  • 6652792 - NUT

13 6667422

  • 6667422 - WASHER

14 6649536

  • 6649536 - PLUG

15 6653562

  • 6653562 - WASHER
  • SEALING

16 40K2

  • 40K2 - PLUG HEX
