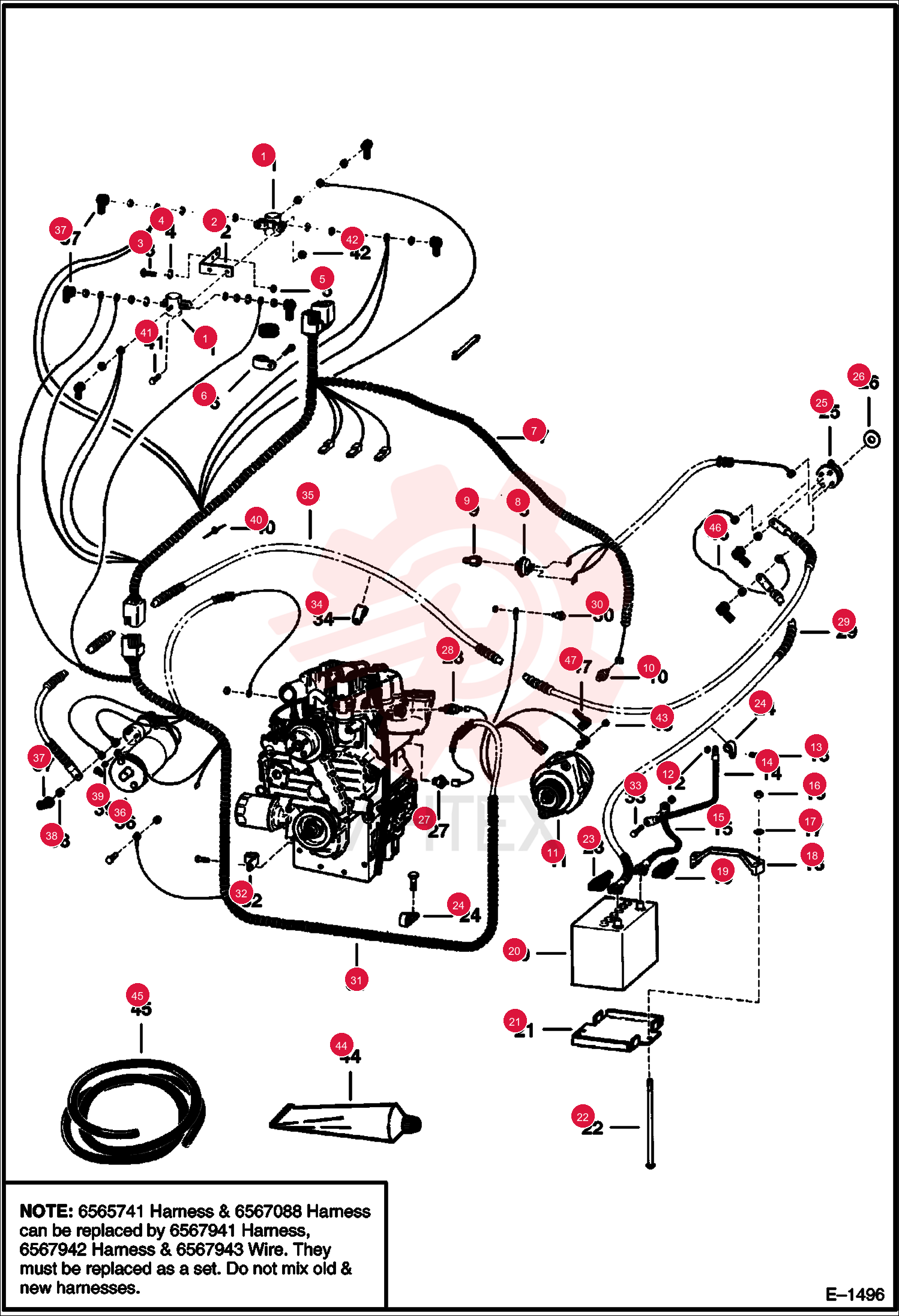

SOLENOID, STARTER MAGNETIC 6659319 (3)

SOLENOID, STARTER MAGNETIC 6659319 (3)

SOLENOID, STARTER MAGNETIC 6659319 (3)

1 6659319

  • 6659319 - SOLENOID
  • STARTER MAGNETIC
  • Was 6632186

2 6563483

  • 6563483 - BRACKET

3 37C512

  • 37C512 - BOLT SQ NECK RND HD
  • Was 7C512

4 6E5

  • 6E5 - WASHER INTL T LOCK

5 61D5

  • 61D5 - NUT HEX FINISHED GR5

6 30H42

  • 30H42 - CLAMP

7 6567941

  • 6567941 - HARNESS
  • chassis

8 6565741

  • 6565741 - HARNESS
  • chassis - See Note

9 6671062

  • 6671062 - SWITCH
  • PRESS OIL HYD
  • hydro. press. - Was 6664577

10 6563922

  • 6563922 - SNUBBER
  • W/Filter

11 6563920

  • 6563920 - FILTER SNUBBER

12 7251584

  • 7251584 - SWITCH
  • TEMP
  • hyd temp - Was 6632633

13 83D5

  • 83D5 - LKNUT HEX FLG GR8

14 17C512

  • 17C512 - BOLT 5

15 6563025

  • 6563025 - CABLE

16 6553094

  • 6553094 - CABLE
  • Was 6562905

17 59D5

  • 59D5 - NUT LOCK HEX PT

18 25E15

  • 25E15 - WASHER FLAT PLAIN

19 6569203

  • 6569203 - CLAMP BATTERY

20 6599652

  • 6599652 - BOOT

21 7269857

  • 7269857 - BATTERY WET 1000 CCA
  • - Was 6665032

22 6630153

  • 6630153 - CAP

23 6561733

  • 6561733 - BOX

24 2356058

  • 2356058 - BOOT

25 30H46

  • 30H46 - CLIP

26 1781345

  • 1781345 - SWITCH
  • Was 754019B

27 6590789

  • 6590789 - PLATE

28 6969775

  • 6969775 - SWITCH
  • OIL PRESSURE
  • eng. oil press. - Was 6652576

29 6658818

  • 6658818 - SENDER TEMP
  • eng temp - threaded connector

30 6565737

  • 6565737 - CABLE

31 6567088

  • 6567088 - HARNESS
  • engine - See Note

32 6567942

  • 6567942 - HARNESS
  • engine

33 31H38

  • 31H38 - CLAMP

34 17C610

  • 17C610 - BOLT

35 30H29

  • 30H29 - CLAMP

36 6563135

  • 6563135 - CABLE
  • pos. - W/Ref. 45

37 6560172

  • 6560172 - COVER

38 4DM10

  • 4DM10 - NUT HEX

39 4DM5

  • 4DM5 - NUT HEXAGON M5

40 3675725

  • 3675725 - DIODE

41 17C412

  • 17C412 - BOLT 5

42 61D4

  • 61D4 - NUT 5

43 1DM6

  • 1DM6 - NUT
  • Was 4DM6

44 6599360

  • 6599360 - SEALANT
  • ELEC .3 OZ
  • electrical - tube - 3 oz

45 6563505

  • 6563505 - CONDUIT
  • bulk - sold per foot

46 6567943

  • 6567943 - WIRE

47 624425

  • 624425 - COVER
