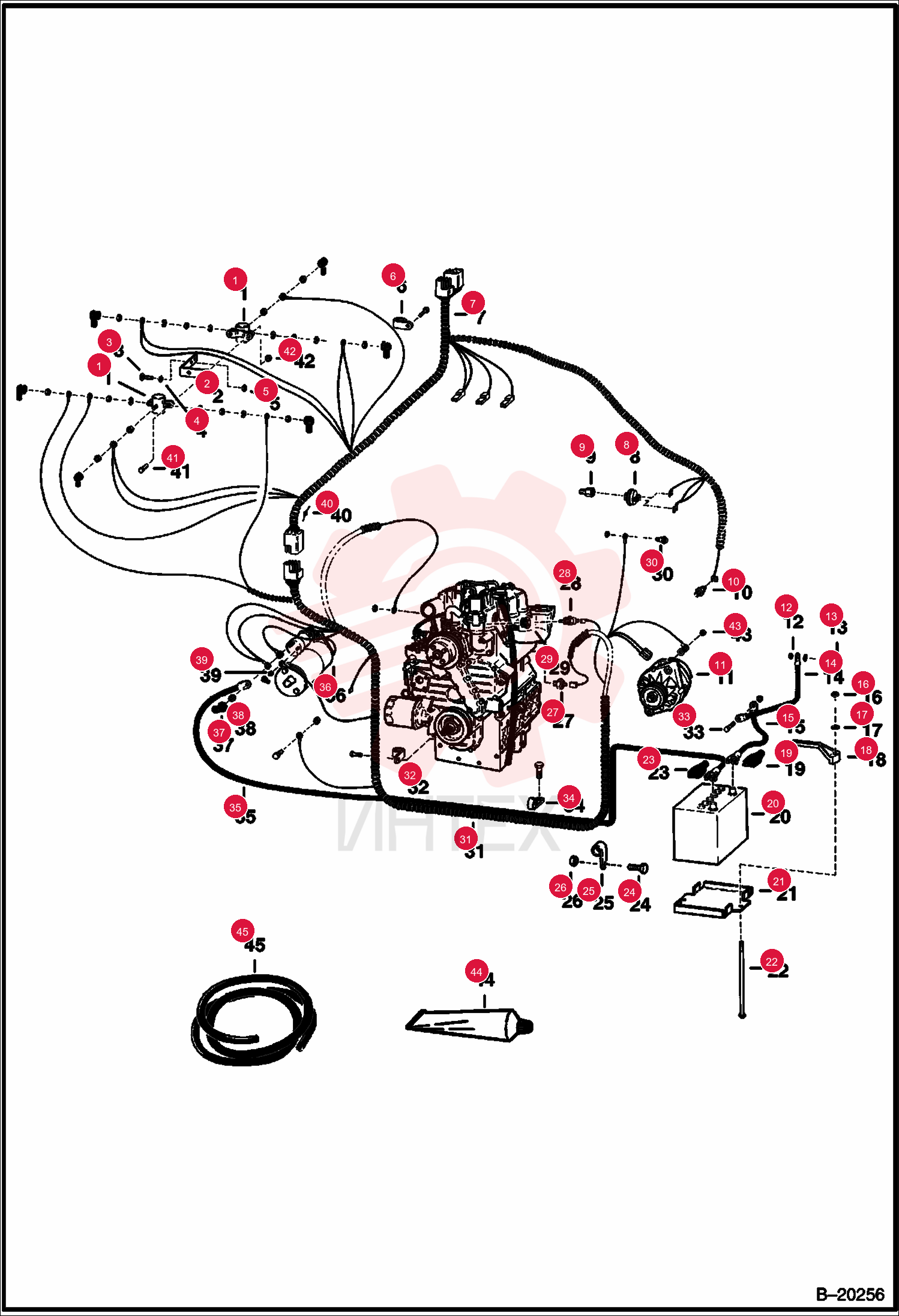

SOLENOID, STARTER MAGNETIC 6659319 (1)
1 6659319
- 6659319 - SOLENOID
- STARTER MAGNETIC
- Was 6632186
2 6563483
- 6563483 - BRACKET
3 7C520
- 7C520 - BOLT
4 6E5
- 6E5 - WASHER INTL T LOCK
5 61D5
- 61D5 - NUT HEX FINISHED GR5
6 30H42
- 30H42 - CLAMP
7 6564908
- 6564908 - HARNESS
- chassis
8 6565639
- 6565639 - HARNESS
- chassis
9 6671062
- 6671062 - SWITCH
- PRESS OIL HYD
- hydro. press. - Was 6664577
10 6563920
- 6563920 - FILTER SNUBBER
11 6564350
- 6564350 - SNUBBER
12 6563922
- 6563922 - SNUBBER
- W/Filter
13 7251584
- 7251584 - SWITCH
- TEMP
- hyd temp - Was 6632633
14 83D5
- 83D5 - LKNUT HEX FLG GR8
15 17C512
- 17C512 - BOLT 5
16 6563025
- 6563025 - CABLE
- Ground
17 6553094
- 6553094 - CABLE
- Ground - Was 6562905
18 59D5
- 59D5 - NUT LOCK HEX PT
19 25E15
- 25E15 - WASHER FLAT PLAIN
20 6569203
- 6569203 - CLAMP BATTERY
21 6599652
- 6599652 - BOOT
22 6665031
- 6665031 - BATTERY
- Was 6568707
23 6630153
- 6630153 - CAP
24 6561733
- 6561733 - BOX
25 2356058
- 2356058 - BOOT
26 31C820
- 31C820 - BOLT
27 30H48
- 30H48 - CLIP
28 57D8
- 57D8 - NUT 10
29 6969775
- 6969775 - SWITCH
- OIL PRESSURE
- eng. oil press. - Was 6652576
30 6658818
- 6658818 - SENDER TEMP
- eng temp - threaded connector
31 19F4
- 19F4 - BUSHING
- Use W/Ref. 28 if engine has 1/2'' hole for temp. switch
32 6564909
- 6564909 - HARNESS
- engine
33 6567088
- 6567088 - HARNESS
- engine
34 6571535
- 6571535 - HARNESS
- Use W/Bobcat alt.
35 30H29
- 30H29 - CLAMP
36 17C610
- 17C610 - BOLT
37 30H30
- 30H30 - CLIP
38 6564991
- 6564991 - CABLE
- POSITIVE
- pos. - W/Ref. 45
39 6560172
- 6560172 - COVER
40 61D6
- 61D6 - NUT HEX FINISHED GR5
41 4DM10
- 4DM10 - NUT HEX
42 12D8
- 12D8 - NUT HEX MACH SCREW
43 4DM5
- 4DM5 - NUT HEXAGON M5
44 3675725
- 3675725 - DIODE
45 17C412
- 17C412 - BOLT 5
46 61D4
- 61D4 - NUT 5
47 1DM6
- 1DM6 - NUT
- Use W/Bobcat alt. - Was 4DM6
48 6599360
- 6599360 - SEALANT
- ELEC .3 OZ
- electrical - tube - 3 oz
49 6563505
- 6563505 - CONDUIT
- bulk - sold per foot
