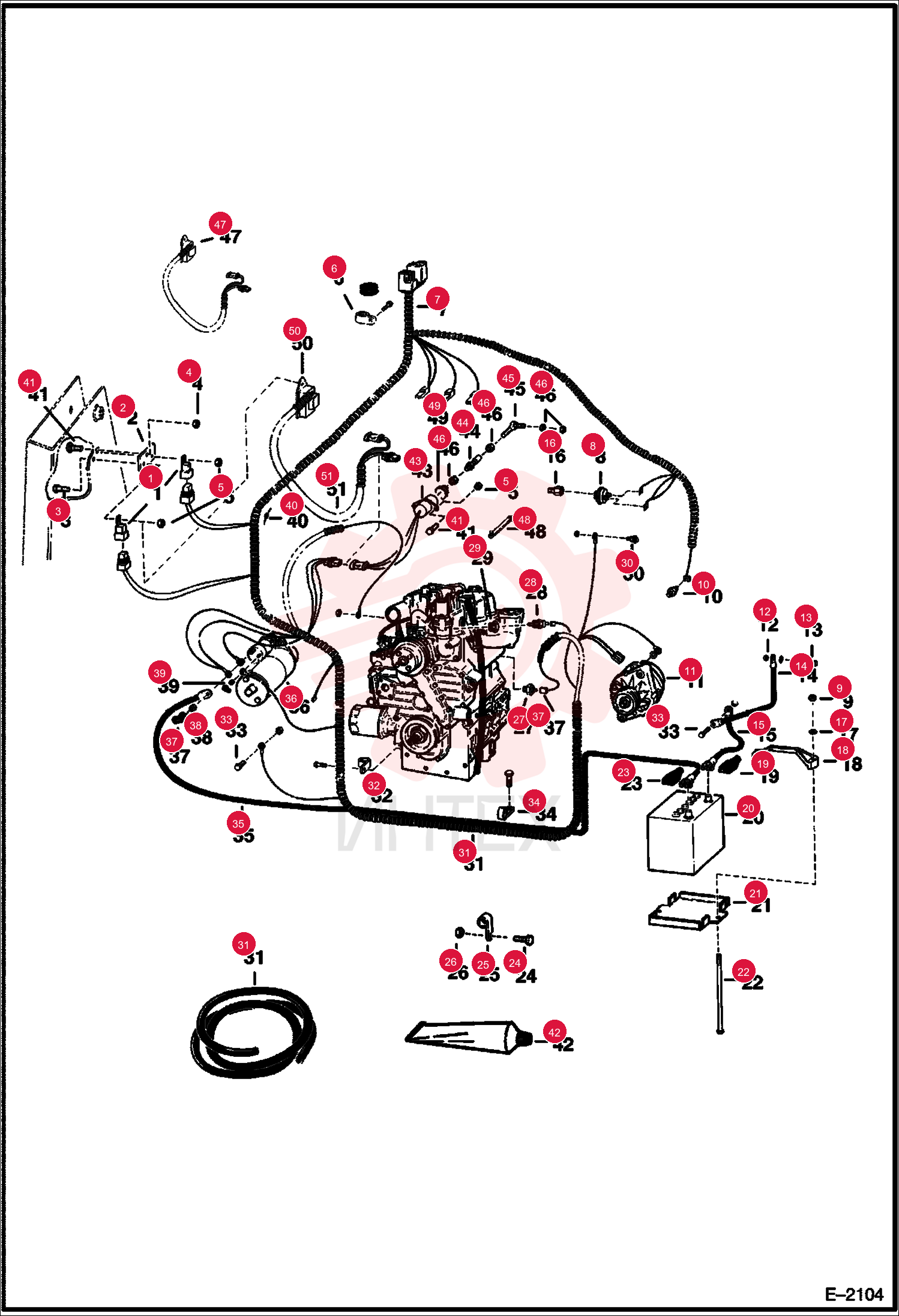

SWITCH, RELAY MAGNETIC 6651975 (1)

SWITCH, RELAY MAGNETIC 6651975 (1)

SWITCH, RELAY MAGNETIC 6651975 (1)

1 6651975

  • 6651975 - SWITCH
  • RELAY MAGNETIC

2 6703685

  • 6703685 - BRACKET

3 37C512

  • 37C512 - BOLT SQ NECK RND HD
  • Was 7C512

4 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

5 85D4

  • 85D4 - NUT 5

6 30H42

  • 30H42 - CLAMP

7 6703686

  • 6703686 - HARNESS
  • chassis & engine

8 6671062

  • 6671062 - SWITCH
  • PRESS OIL HYD
  • hydro. press. - Was 6664577

9 59D5

  • 59D5 - NUT LOCK HEX PT

10 7251584

  • 7251584 - SWITCH
  • TEMP
  • hyd temp - Was 6632633

11 83D5

  • 83D5 - LKNUT HEX FLG GR8

12 17C512

  • 17C512 - BOLT 5

13 6563025

  • 6563025 - CABLE
  • Ground

14 6553094

  • 6553094 - CABLE
  • Ground - Was 6562905

15 6563922

  • 6563922 - SNUBBER
  • W/Filter

16 6563920

  • 6563920 - FILTER SNUBBER

17 25E15

  • 25E15 - WASHER FLAT PLAIN

18 6569203

  • 6569203 - CLAMP BATTERY

19 6599652

  • 6599652 - BOOT

20 6665031

  • 6665031 - BATTERY
  • Was 6568707

21 6630153

  • 6630153 - CAP

22 6561733

  • 6561733 - BOX

23 2356058

  • 2356058 - BOOT

24 31C820

  • 31C820 - BOLT

25 30H48

  • 30H48 - CLIP

26 57D8

  • 57D8 - NUT 10

27 6969775

  • 6969775 - SWITCH
  • OIL PRESSURE
  • eng. oil press. - Was 6652576

28 6658818

  • 6658818 - SENDER TEMP
  • eng. temp. - threaded connector - Was 6656818

29 19F4

  • 19F4 - BUSHING
  • Use W/Ref. 28 if engine has 1/2" hole for temp switch

30 6563505

  • 6563505 - CONDUIT
  • bulk - sold per foot

31 30H54

  • 30H54 - CLIP
  • Was 30H000029B

32 17C610

  • 17C610 - BOLT

33 30H41

  • 30H41 - CLIP
  • Was 30H000030B

34 6564991

  • 6564991 - CABLE
  • POSITIVE
  • pos. - W/Ref. 45

35 6560172

  • 6560172 - COVER

36 4DM10

  • 4DM10 - NUT HEX

37 4DM5

  • 4DM5 - NUT HEXAGON M5

38 3675725

  • 3675725 - DIODE

39 17C412

  • 17C412 - BOLT 5

40 6599360

  • 6599360 - SEALANT
  • ELEC .3 OZ
  • electrical - tube - 3 oz

41 6662993

  • 6662993 - SOLENOID
  • fuel shut-off - Was 6577503

42 6578366

  • 6578366 - JOINT
  • BALL

43 6578363

  • 6578363 - ROD END

44 62D4

  • 62D4 - NUT HEX FINISHED GR5

45 6610510

  • 6610510 - STRAP
  • TIE 10

46 6664286

  • 6664286 - BOOT
  • Also Order Ref. 48

47 6669415

  • 6669415 - TIMER
  • SOLENOID

48 6702444

  • 6702444 - FUSE 25A 5
  • 25 amp - Was 6670808

49 6713879

  • 6713879 - HARNESS
  • 16'' (406
  • 4mm) Long
