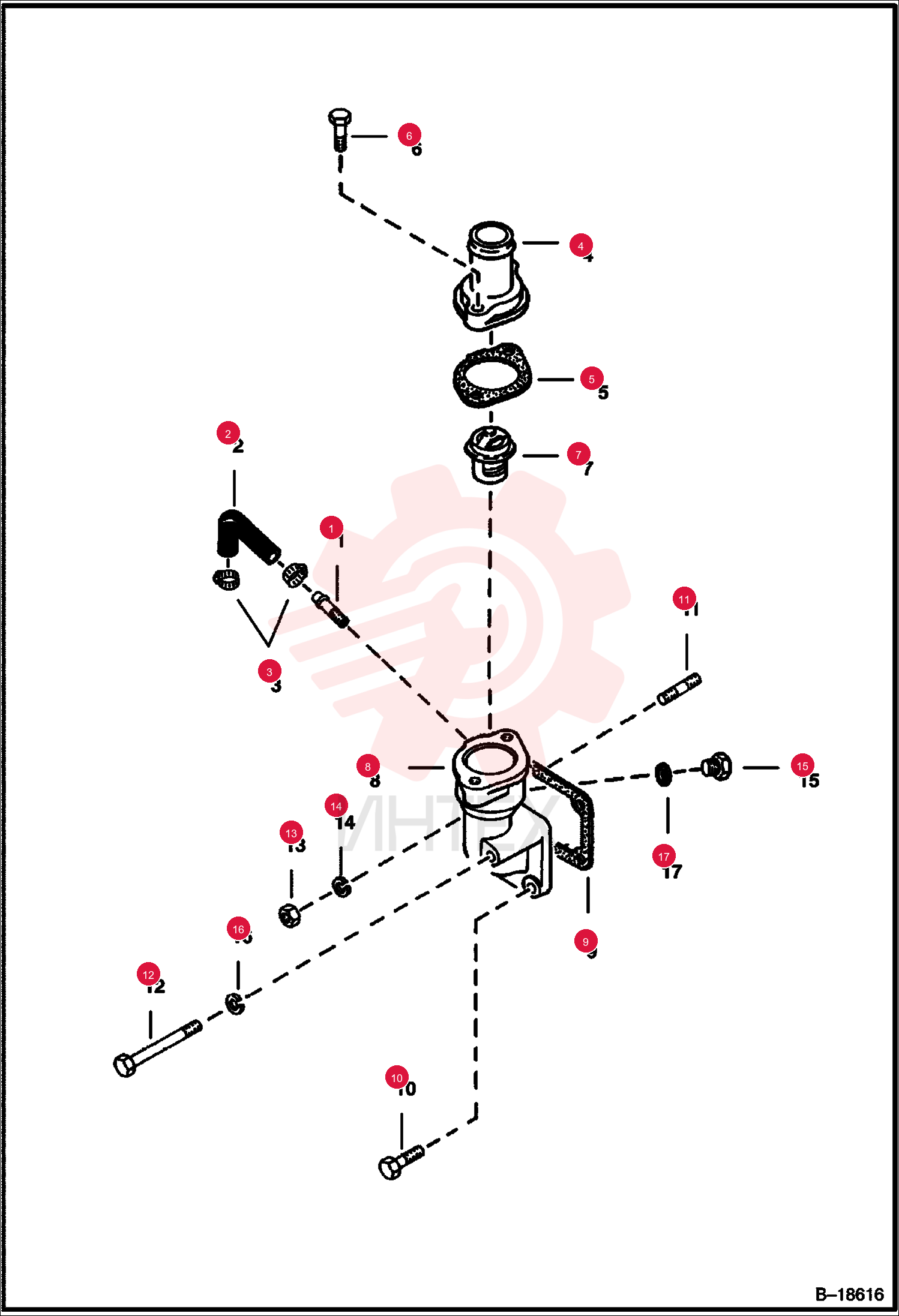

PIPE 3974677 (3)

PIPE 3974677 (3)

PIPE 3974677 (3)

1 3974677

  • 3974677 - PIPE
  • water return - Was 6653791

2 3974988

  • 3974988 - PIPE
  • water return

3 3974679

  • 3974679 - BAND
  • pipe

4 6598118

  • 6598118 - COVER
  • thermostat

5 6732199

  • 6732199 - GASKET
  • thermostat cover - Was 6666790

6 1CM840

  • 1CM840 - SCREW HEX CAP

7 3918235

  • 3918235 - THERMOSTAT

8 6646743

  • 6646743 - FLANGE
  • W/O replaceable pipe

9 6666802

  • 6666802 - GASKET
  • water flange - Was 3974987B

10 4CM822

  • 4CM822 - BOLT

11 3974627

  • 3974627 - STUD

12 1CM870

  • 1CM870 - BOLT

13 1DM8

  • 1DM8 - NUT

14 6EM80

  • 6EM80 - WASHER
  • SPRING

15 6649536

  • 6649536 - PLUG
  • Was 6599615

16 1EM80

  • 1EM80 - WASHER PLAIN
  • plain

17 6653562

  • 6653562 - WASHER
  • SEALING
  • Was 6598693
