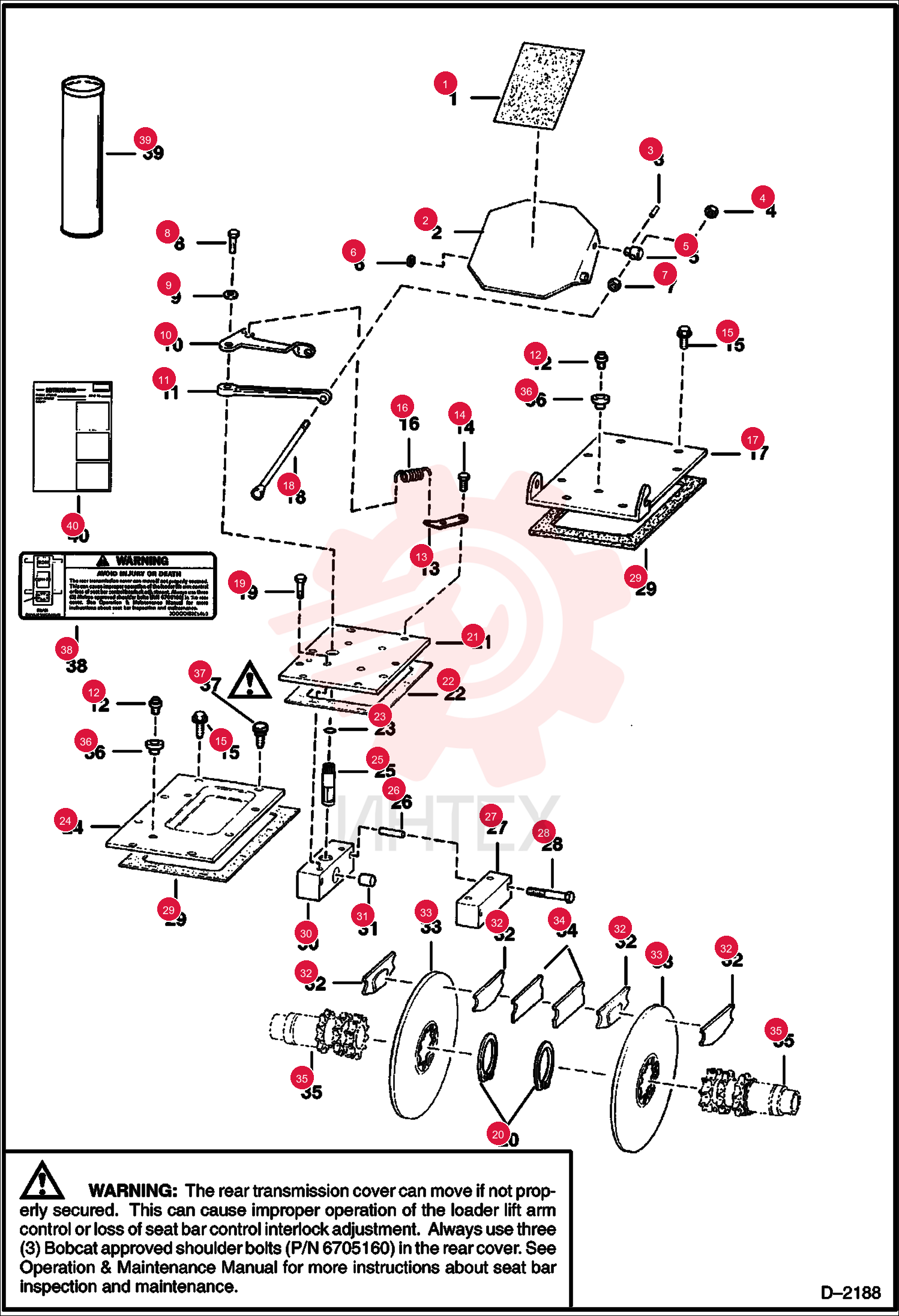

TREAD, SAFETY 6553976 (4)
1 6553976
- 6553976 - TREAD
- SAFETY
- 127 x 203 mm (5 x 8")
2 6563187
- 6563187 - PEDAL
3 14J2516
- 14J2516 - PIN
4 85D8
- 85D8 - NUT PRETRQ HEX LOCK
5 6563178
- 6563178 - PIVOT
6 25E21
- 25E21 - WASHER FLAT PLAIN
7 61D8
- 61D8 - NUT 5
8 17C820
- 17C820 - BOLT 5
9 6506477
- 6506477 - WASHER
10 6577552
- 6577552 - LEVER
11 6563823
- 6563823 - LEVER
12 6680970
- 6680970 - VENT BREATHER
- Was 6670627
13 6559218
- 6559218 - ANGLE
14 84G3716
- 84G3716 - SCREW THD ROLLING TT
15 84G3712
- 84G3712 - SCREW THD ROLLING TT
16 84G3712
- 84G3712 - SCREW THD ROLLING TT
17 6505076
- 6505076 - SPRING
18 6707171
- 6707171 - COVER
- Also Order Ref. 12 & 36 - Was 6703781
19 6567179
- 6567179 - LINKAGE
20 17C816
- 17C816 - BOLT
21 6658672
- 6658672 - RING
- RETAINER
22 6575962
- 6575962 - COVER
23 6703098
- 6703098 - GASKET
24 25K30100
- 25K30100 - O RING 10
25 6703936
- 6703936 - COVER
- earlier cover may require Ref. 12 & 36
26 6569842
- 6569842 - PIN
27 6571796
- 6571796 - SPACER
28 6571794
- 6571794 - BLOCK
29 17C880
- 17C880 - BOLT
30 6703097
- 6703097 - GASKET
- TRANS COVER
31 6571795
- 6571795 - BLOCK
32 6569927
- 6569927 - INSERT
33 6700706
- 6700706 - PAD
- BRAKE
34 6702792
- 6702792 - BRAKE
- DISC
35 6702805
- 6702805 - SPACER
36 6705065
- 6705065 - SHAFT
- TRANS
- Was 6703089
37 6553411
- 6553411 - BUSHING
- PRESS FIT 5
38 6705160
- 6705160 - BOLT
- Always use (3) 6705160 Shoulder Bolts in Center Cover ... SEE WARNING ON ILLUSTRATION
39 6705453
- 6705453 - DECAL
- warning
40 6632501
- 6632501 - SEALANT
- POLYURETHANE
- chaincase cover
41 6722343
- 6722343 - INSTRUCTIONS
