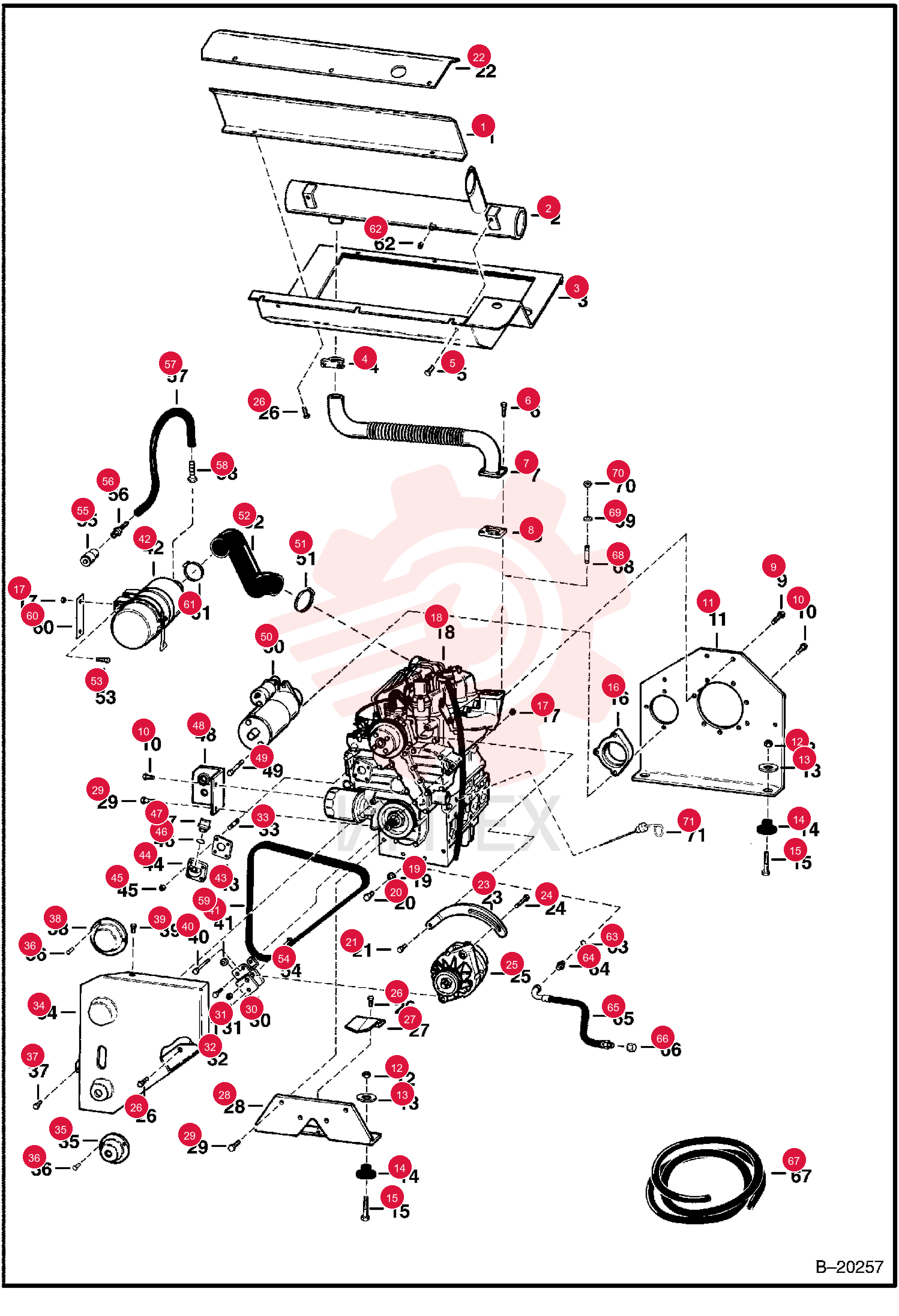

SHIELD 6561285 (3)

SHIELD 6561285 (3)

SHIELD 6561285 (3)

1 6561285

  • 6561285 - SHIELD
  • heat

2 6563117

  • 6563117 - MUFFLER
  • spark arrestor

3 6565419

  • 6565419 - BRACKET
  • radiator

4 6677363

  • 6677363 - CLAMP
  • FULL CIRCLE
  • Was 657904B

5 35C610

  • 35C610 - BOLT 5

6 4CM825

  • 4CM825 - BOLT HEX HEAD
  • Was 1CM825

7 6569624

  • 6569624 - TUBE
  • EXHAUST

8 6575580

  • 6575580 - GASKET
  • muffler - Was 6598088

9 6CM1225

  • 6CM1225 - SCREW FL THD HEX CAP

10 5CM1020

  • 5CM1020 - SCREW FL THD HEX CAP

11 6562433

  • 6562433 - MOUNT
  • engine

12 61D8

  • 61D8 - NUT 5

13 6515817

  • 6515817 - WASHER

14 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • shock

15 17C836

  • 17C836 - BOLT

16 6562198

  • 6562198 - SPACER
  • starter

17 57D5

  • 57D5 - NUT HEX FLNG GR8

18 6631046

  • 6631046 - GASKET
  • Was 3974403

19 6630815

  • 6630815 - PLUG
  • Was 3974402B

20 1CM870

  • 1CM870 - BOLT

21 6565327

  • 6565327 - MUFF.SHLD
  • muffler

22 6579721

  • 6579721 - RETAINER
  • Was 6562694

23 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

24 84G3710

  • 84G3710 - SCREW

25 6562843

  • 6562843 - MOUNT
  • motor

26 6CM1220

  • 6CM1220 - BOLT

27 6562257

  • 6562257 - BRACKET
  • ALT

28 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

29 39DM10

  • 39DM10 - NUT

30 1CM890

  • 1CM890 - BOLT

31 6652764

  • 6652764 - STUD

32 6630207

  • 6630207 - RIVET POP
  • Use W/3 piece Shield

33 1CM895

  • 1CM895 - BOLT

34 1CM840

  • 1CM840 - SCREW HEX CAP

35 17C556

  • 17C556 - BOLT

36 6568877

  • 6568877 - WASHER

37 6714543

  • 6714543 - GASKET
  • Was 3974461B

38 6562466

  • 6562466 - INLET
  • oil filler

39 1DM6

  • 1DM6 - NUT

40 3966602

  • 3966602 - O RING
  • oil fill plug

41 6685924

  • 6685924 - OIL FILL CAP
  • oil filler - Was 6652653

42 6562419

  • 6562419 - BRACKET
  • For 1108692 Delco Starter

43 6567048

  • 6567048 - MOUNT
  • BRACKET
  • For 1998339 Delco Starter

44 17C640

  • 17C640 - BOLT

45 42H32

  • 42H32 - HS CLAMP5
  • Was 6513595

46 6563447

  • 6563447 - HOSE

47 35C516

  • 35C516 - SCREW HEX HD W/F GR5

48 1CM1080

  • 1CM1080 - BOLT

49 17C648

  • 17C648 - SCREW HEX CAP

50 6515007

  • 6515007 - IND GAUGE AIR FILTER

51 6505813

  • 6505813 - ADAPTER
  • barbed

52 6563452

  • 6563452 - ADAPTER
  • barbed

53 6562693

  • 6562693 - BELT
  • ALT

54 6563705

  • 6563705 - SHIM

55 6569874

  • 6569874 - SHIM

56 42HL300

  • 42HL300 - CLAMP
  • Was 6598799

57 866104

  • 866104 - PLUG
  • Brass

58 79K8

  • 79K8 - O RING 10

59 15K6

  • 15K6 - ADAPTER
  • W/Ref. 63

60 6572070

  • 6572070 - HOSE
  • oil drain

61 36K6

  • 36K6 - CAP

62 6557720

  • 6557720 - HOSE BULK
  • sold per foot

63 3974627

  • 3974627 - STUD

64 6EM80

  • 6EM80 - WASHER
  • SPRING

65 1DM8

  • 1DM8 - NUT

66 6598181

  • 6598181 - DIPSTICK
