Bobcat
/
743.0
/

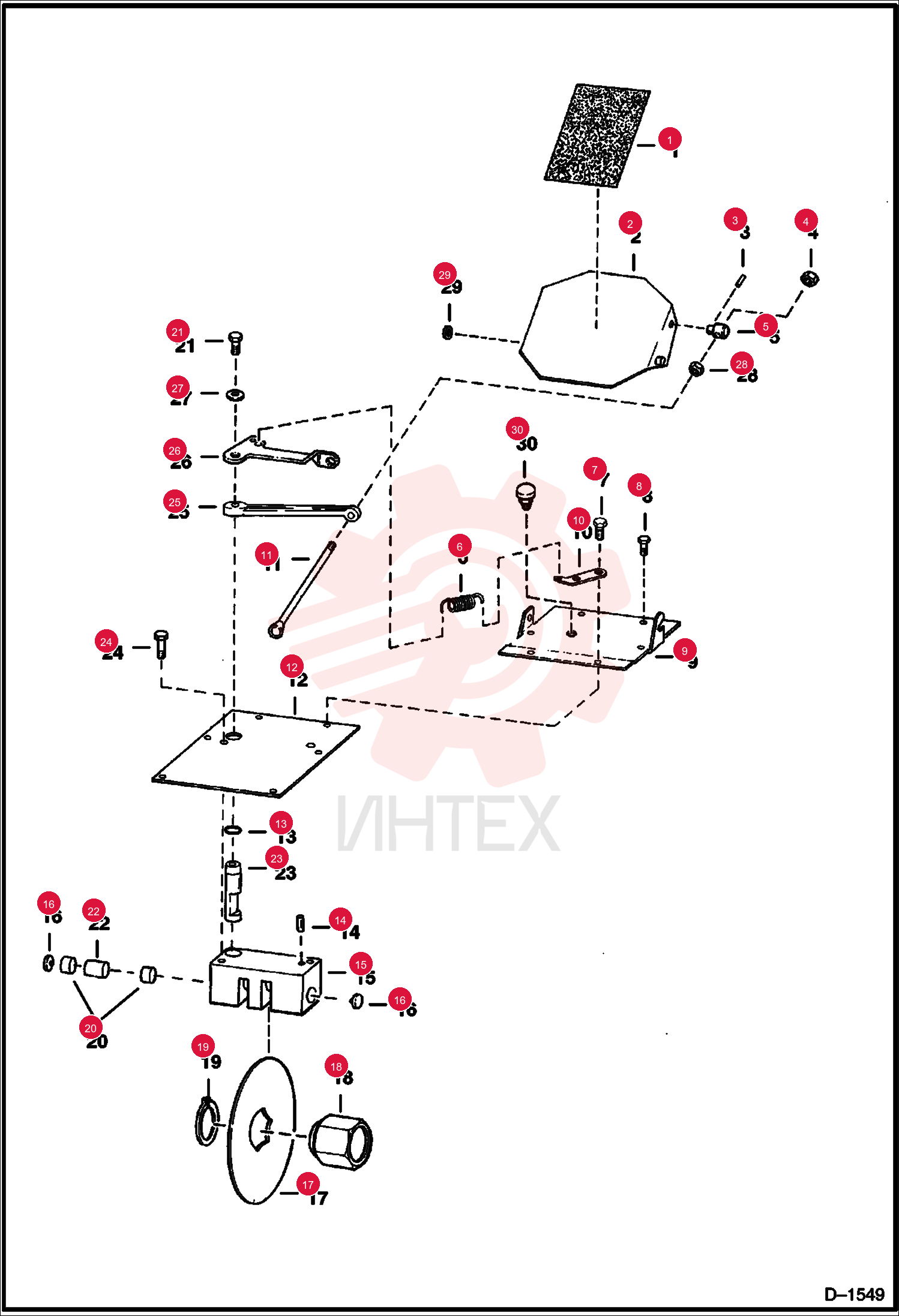

TREAD, SAFETY 6553976 (3)

TREAD, SAFETY 6553976 (3)

TREAD, SAFETY 6553976 (3)

1 6553976

  • 6553976 - TREAD
  • SAFETY
  • 127 x 203 mm (5 x 8")

2 6563187

  • 6563187 - PEDAL

3 14J2516

  • 14J2516 - PIN

4 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

5 6563178

  • 6563178 - PIVOT

6 6505076

  • 6505076 - SPRING

7 84G3716

  • 84G3716 - SCREW THD ROLLING TT

8 84G3712

  • 84G3712 - SCREW THD ROLLING TT

9 6575654

  • 6575654 - PLATE
  • COVER
  • Also Order Ref. 30 - Was 6554093

10 6559218

  • 6559218 - ANGLE

11 6569601

  • 6569601 - ROD

12 6558467

  • 6558467 - COVER

13 25K30100

  • 25K30100 - O RING 10

14 784466

  • 784466 - DOWEL PIN

15 6562757

  • 6562757 - BLOCK BRAKE

16 6562756

  • 6562756 - WEAR WASH
  • wear

17 6559237

  • 6559237 - DISC

18 6558208

  • 6558208 - HUB

19 742666

  • 742666 - RING
  • SNAP

20 6558659

  • 6558659 - INSERT

21 17C820

  • 17C820 - BOLT 5

22 6558660

  • 6558660 - INSERT

23 6562755

  • 6562755 - CAM PIN

24 17C812

  • 17C812 - BOLT

25 6563823

  • 6563823 - LEVER

26 6577552

  • 6577552 - LEVER
  • Was 6563173

27 6506477

  • 6506477 - WASHER

28 61D8

  • 61D8 - NUT 5

29 25E21

  • 25E21 - WASHER FLAT PLAIN
