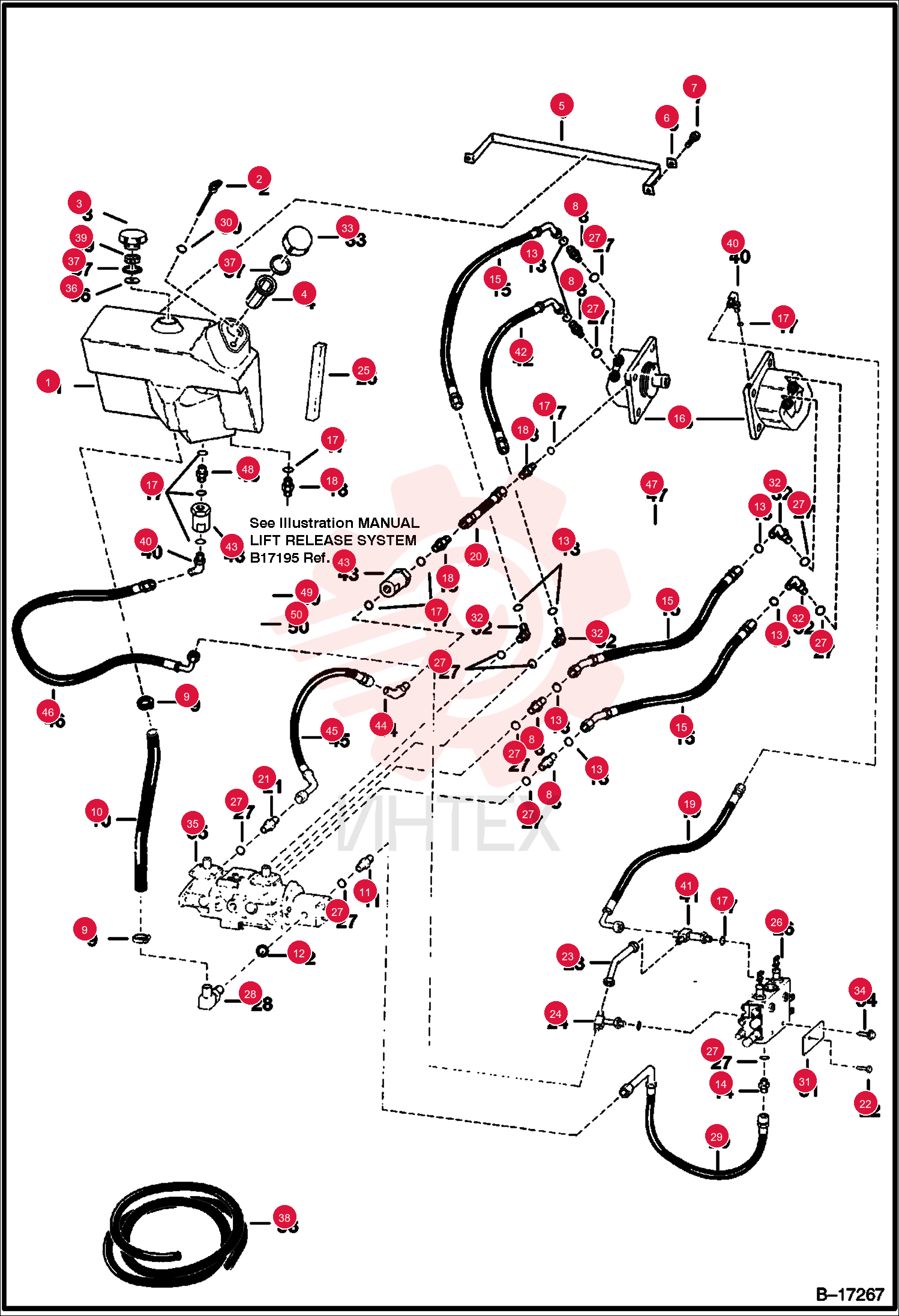

TANK 6706450 (1)
1 6706450
- 6706450 - TANK
- .93" I.D. Suction Outlet
2 6577459
- 6577459 - DIPSTICK
- W/Ref. 30
3 6577785
- 6577785 - CAP
- HYD BREATHER
- breather - Also Order Ref. 37 & 39 - Was 6727475
4 7120881
- 7120881 - SCREEN
- FILLER
- Was 6569219
5 6577585
- 6577585 - BAND
6 6559447
- 6559447 - WASHER
7 84G3712
- 84G3712 - SCREW THD ROLLING TT
8 52E1212
- 52E1212 - ADAPTER
- Was 52E000012B
9 5HM42
- 5HM42 - HOSE CLAMP
- constant tension
10 44H20
- 44H20 - CLAMP
- worm gear - Was 6666864
11 6672281
- 6672281 - CLAMP
- constant torque
12 6716423
- 6716423 - HOSE
- 1.25" (31
- 8 mm) I.D. - Was 6706452
13 6704693
- 6704693 - ADAPTER
- W/Ref. 27 - check boss face to determine correct replacement o-ring
14 15KB1212
- 15KB1212 - FITTING
- HYD CONNECTOR
- W/Ref. 27 - tapered boss face - Was 15KN00008B
15 97K12
- 97K12 - O-RING
- flared end
16 79K16
- 79K16 - O RING 10
17 58K018
- 58K018 - O-RING 10
18 15K8
- 15K8 - FITTING
- W/Ref. 27 - flat boss face
19 15KB1212
- 15KB1212 - FITTING
- HYD CONNECTOR
- W/Ref. 27 - tapered boss face - Was 15KN00008B
20 97K12
- 97K12 - O-RING
- flared end
21 15KB1212
- 15KB1212 - FITTING
- HYD CONNECTOR
- W/Ref. 27 - flat boss face
22 6671619
- 6671619 - HOSE
- Was 6658365
23 79K6
- 79K6 - O RING 10
- flat boss face
24 99K6
- 99K6 - O-RING
- tapered boss face
25 15K5
- 15K5 - FITTING
- W/Ref. 17 - flat boss face
26 97K6
- 97K6 - O-RING
- flared end
27 15KB0606
- 15KB0606 - FITTING
- HYD CONNECTOR
- W/Ref. 17 - flat boss face
28 6707234
- 6707234 - HOSE
29 6617736
- 6617736 - HOSE
- Was 6704630
30 6578812
- 6578812 - ADAPTER
- W/Ref. 27 - flat boss face
31 97K6
- 97K6 - O-RING
- flared end
32 15KB0612
- 15KB0612 - FITTING
- HYD CONNECTOR
- W/Ref. 27 - flat boss face
33 17C532
- 17C532 - BOLT 5
34 17C632
- 17C632 - BOLT 5
- AHC
35 6577690
- 6577690 - TUBELINE
36 97K6
- 97K6 - O-RING
- flared end
37 6805696
- 6805696 - TEE
- W/Ref. 17 - W/ flared end O-ring
38 79K12
- 79K12 - O RING 10
- flat boss face
39 99K12
- 99K12 - O-RING
- tapered boss face
40 6714905
- 6714905 - ADAPTER
- W/Ref. 12 - Was 6707409
41 6714594
- 6714594 - HOSE
- Was 6705074
42 25K20010
- 25K20010 - O RING 10
43 6727837
- 6727837 - COVER
- Was 6704680
44 6714902
- 6714902 - ELBOW
- W/Ref. 13 & 27 - Was 69E000012B
45 6728149
- 6728149 - CAP
- HYD NON VENTED
- fill - Also Order Ref. 37 - Was 6532508
46 84G3110
- 84G3110 - SCREW
47 84G3710
- 84G3710 - SCREW
- AHC
48 6701552
- 6701552 - BAFFLE
49 6700631
- 6700631 - GASKET CAP TANK HYDR
50 6511855
- 6511855 - TAPE BULK/FT 25'
- self adhesive - sold per foot
51 6703427
- 6703427 - FOAM FLT5
52 17K5
- 17K5 - ELBOW
- W/Ref. 17 - flat boss face
53 17KB0606
- 17KB0606 - FTG HYD 90 ELBOW
- tapered boss face - W/Ref. 17 - Was 17KV00005B
54 97K6
- 97K6 - O-RING
- flared end
55 6805243
- 6805243 - FITTING ELBOW
- W/Ref. 17 - W/flared end O-rings
56 97K6
- 97K6 - O-RING
- flared end
57 6661076
- 6661076 - HOSE
58 6661022
- 6661022 - FILTER
- OIL HYD IN-LINE
59 18KB0606
- 18KB0606 - FITTING
- HYD ELBOW
- W/Ref. 17 - Was 18K5
60 6730769
- 6730769 - HOSE
- 14.5" (368
- 3 mm) long
61 6578327
- 6578327 - HOSE
62 6715251
- 6715251 - HOSE
- Was 6648636
63 97K6
- 97K6 - O-RING
- flared end
64 6716473
- 6716473 - ADAPTER
- W/Ref. 17 - tapered boss face
65 6719211
- 6719211 - TUBE
66 87F5
- 87F5 - FITTING
- Was 87FN00005B
